Process Calibrator
TechChek™ 830-KP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the a 830-KP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Altek a 830-KP

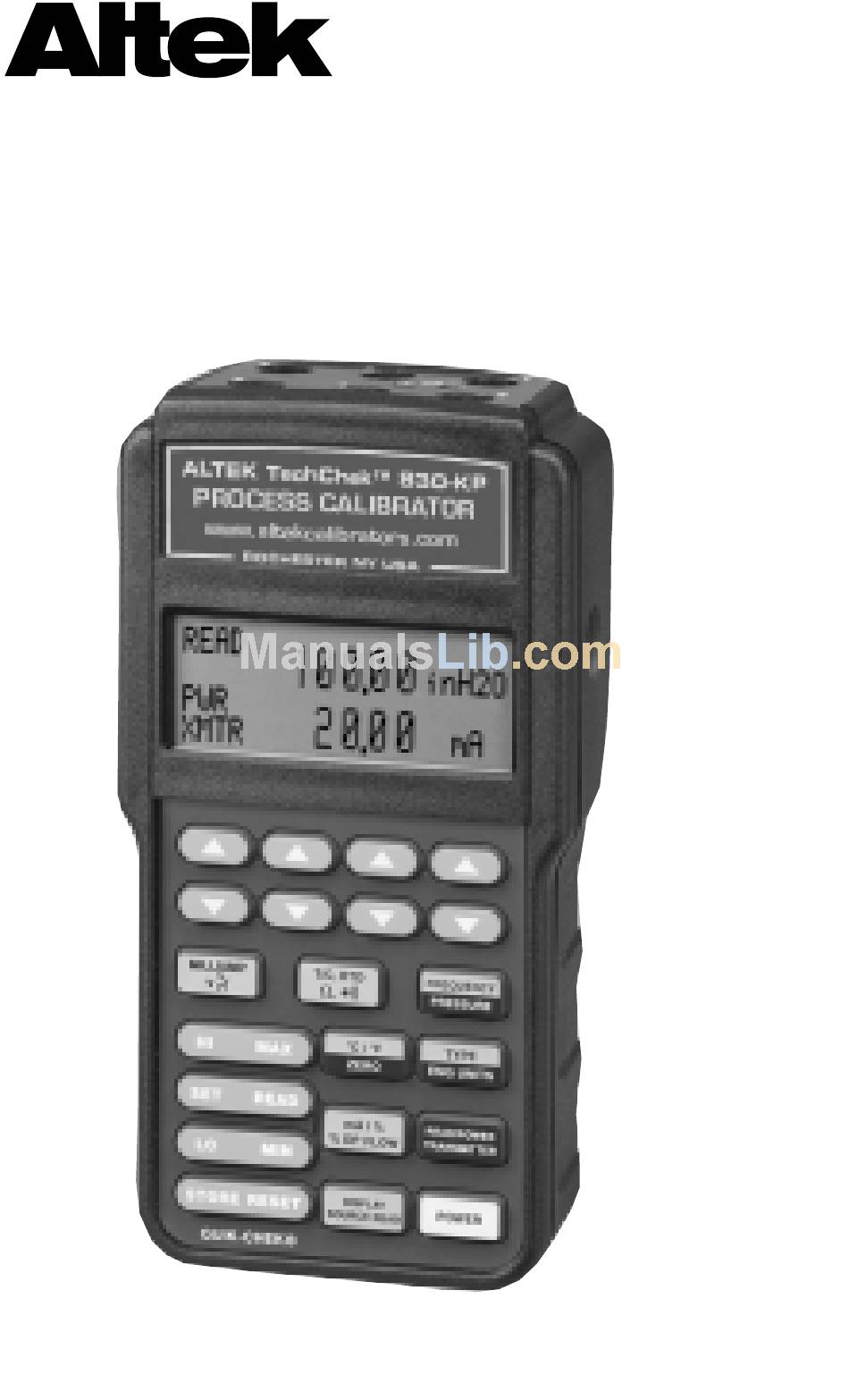

  • Page 1 Process Calibrator TechChek™ 830-KP...
  • Page 2: Table Of Contents

    CONTENTS GENERAL OPERATING INSTRUCTIONS...3 TURN ON ...3 CONNECTIONS ...3 FIELD & BENCH USE (TILT STAND) ...4 CHANGING BATTERIES...4 CONFIGURING TEMPERATURE SCALES ...5 ENABLING AUTO-OFF ...5 RESTORING DEFAULT SETTINGS ...5 DISPLAY CONTRAST & BACKLIGHTING...6 SELECTING FUNCTIONS & RANGES...7 SOURCE MODE OPERATING INSTRUCTIONS ...8 STORING &...
  • Page 3: Turn On

    BAR, mBar, Atm, Kgf plus torr, inches and mm of mercury or water at a variety of temperatures. Characterized modules for laboratory accuracy in the shop, control room or field. Voltage Calibration Calibrate your instrumentation. Source from 0.00 to 110.00 mV and 0.00 to 10.25 V.
  • Page 4: Field & Bench Use (Tilt Stand)

    OPERATING INSTRUCTIONS GENERAL FIELD & BENCH USE TechChek 830-KP comes with a carrying case and a built-in tilt stand/hanger. The 830-KP is held securely in the case by VELCRO® for use with the carrying case open. The carrying case also has a snap- on belt loop which can be looped around a pipe or rail.
  • Page 5: Display Contrast & Backlighting

    OPERATING INSTRUCTIONS GENERAL DISPLAY CONTRAST The contrast of the Liquid Crystal Display may adjusted for best readability. 1) Press and hold the DISPLAY/SOURCE/READ push-button while turning the 830-KP on to adjust the contrast of the display. 2) Press any UP or DOWN key until the display is most legible. 3) Press the STORE/RESET push-button or wait five seconds for your selection to be stored.
  • Page 6: Source Mode

    OPERATING INSTRUCTIONS SOURCE MODE Select source by pressing the DISPLAY/SOURCE/READ pushbutton until the word SOURCE appears on the LCD display. To change the output value, press the UP or DOWN key for each digit. To ramp the output press and hold any UP or DOWN pushbutton.
  • Page 7: Simulate 2-Wire Transmitters

    OPERATING INSTRUCTIONS SIMULATE 2-WIRE TRANSMITTERS 2-WIRE mA, 2-WIRE % (Percent of 4 to 20 mA) 2-WIRE DP % Choose this function to simulate a 2-Wire Transmitter output from 1.00 to 24.00 milliamps. Operates in loops with power supply voltages from 3 to 45 VDC. 1) Disconnect existing 2-Wire Transmitter from the loop 2) Press the MILLIAMP/V push-button until mA or mA and % appear on the display...
  • Page 8: Check 1-5 Volt Inputs Without Disconnecting Wires

    OPERATING INSTRUCTIONS CHECK 1-5 VOLT INPUTS WITHOUT DISCONNECTING WIRES Most 1-5 Volt receivers in 4-20mA loops have a 250 Ohm resistor across the input of the receiver. This resistor may be mounted internally or externally. TechChek 830-KP is connected directly across the input of the 1-5 Volt receiver without disconnecting any field wiring.
  • Page 9: Calibrate Thermocouple Inputs

    OPERATING INSTRUCTIONS CALIBRATE THERMOCOUPLE INPUTS Choose this function to simulate a thermocouple signal into any instrument requiring a thermocouple input. The output of the 830- KP is automatically cold junction compensated. 1) Disconnect the thermocouple from the instrument being calibrated. 2) Press the T/C/RTD/ pushbutton until the word TYPE &...
  • Page 10: Calibrate Rtd Inputs

    OPERATING INSTRUCTIONS CALIBRATE RTD INPUTS Choose this function to simulate a temperature signal into any instrument requiring an RTD input. 1) Disconnect the RTD from the instrument being calibrated. 2) Press the T/C/RTD/ pushbutton until any RTD type (Pt, Ni or Cu) appears on the display.
  • Page 11: Calibrate Frequency Inputs

    OPERATING INSTRUCTIONS CALIBRATE FREQUENCY INPUTS Choose this function to provide pulses into frequency measuring instruments. The 830-KP output is a zero crossing square wave from -1V to +5V amplitude. Available ranges are from 0.01 to 10.00 kHz, 1 to 1000 Hz and from 1 to 1000 CPM (Counts-Per- Minute).
  • Page 12: Read Milliamp Outputs

    OPERATING INSTRUCTIONS READ MILLIAMP OUTPUTS mA, mA % (Percent of 4 to 20 mA), DP% (DP Flow) Choose this function to measure from 0.00 to +24.00 milliamps. 1) Open the current loop at any convenient point along the signal path 2) Press the MILLIAMP/V push-button until mA or mA and % appear on the display 3) Press the DISPLAY/SOURCE/READ push-button until READ...
  • Page 13: Read Ac Voltages

    OPERATING INSTRUCTIONS READ AC VOLTAGES Choose this function to measure from 0.0 to 250.0 V True RMS. 1) Press the MILLIAMP/V push-button until mV, V, Vhi or VAC appear on the display 3) Press the DISPLAY/SOURCE/READ push-button until READ appears on the display 4) Press the TYPE/ENG UNITS pushbuuton to select VAC on the display 5) Connect the red READ (+) lead and the black READ (-) lead of...
  • Page 14: Read Resistance

    OPERATING INSTRUCTIONS READ RESISTANCE Ohms Choose this function to measure resistance from 0.0 to 1000.0 Ohms. 1) Disconnect one or both input wires from the device to be calibrated. 2) Press the T/C/RTD/ pushbutton until the on the display. 3) Press the DISPLAY/SOURCE/READ push-button until READ or CONTINUITY appears on the display 4) Press the TYPE/ENG UNITS push-button once to switch between READ and CONTINUITY on the display...
  • Page 15: Measure Rtd Sensors

    OPERATING INSTRUCTIONS MEASURE RTD SENSORS Choose this function to read an RTD. Three wires must be use for both 2 and three wire RTDs. 1) Disconnect the RTD from the instrument being calibrated. 2) Press the T/C/RTD/ pushbutton until any RTD type (Pt, Ni or Cu) appears on the display.
  • Page 16: Count Frequencies

    OPERATING INSTRUCTIONS COUNT FREQUENCIES Choose this function to use the 830-KP as a frequency counter. Available ranges are from 0.01 to 15.00 kHz, 1 to 1500 Hz and from 1 to 1500 CPM (Counts-Per-Minute). To measure waveforms with amplitudes between 1 V and 10.25 V RMS use the low level inputs.
  • Page 17: Calibrate 2 & 4 Wire Transmitters

    OPERATING INSTRUCTIONS CALIBRATE TRANSMITTERS ANY SOURCE FUNCTION AND READ mA, READ %, READ DP% Choose this function to supply the input signal to the transmitter and displaying the 4-20 mA output of the transmitter (used with 4- Wire Transmitters). ANY SOURCE FUNCTION AND P-XMTR mA, P-XMTR %, P-XMTR DP% Choose this function to simultaneously supply power to a 2-Wire transmitter while supply the input signal to the transmitter and...
  • Page 18: Pressure (With Companion Pressure Modules)

    OPERATING INSTRUCTIONS READ PRESSSURE WARNING! - SAFETY CONSIDERATIONS Sudden release of compressed or stored gas can cause personal injury. Always vent the system before making pressure connections or disconnections. Exercise standard physical protection practices such as eye protection, gloves, protective clothing, etc.
  • Page 19: Calibrate Pressure Transmitters

    OPERATING INSTRUCTIONS CALIBRATE PRESSURE TRANSMITTERS READ PRESSURE AND P-XMTR mA, P-XMTR %, P-XMTR DP% Choose this function to simultaneously supply power to a 2-Wire pressure transmitter while supplying the input signal to the transmitter and displaying the 4-20 mA output of the transmitter. 1) Disconnect both the pressure input and output wires from the 2-Wire Transmitter to be calibrated 2) Select the proper module for the pressure range of the...
  • Page 20: Specifications

    SPECIFICATIONS GENERAL TYPICAL 90 DAY ACCURACY: ±(0.025% of Full Scale + 1 LSD) 1 1 YEAR ACCURACY: ±(0.05% of Full Scale + 1 LSD) WARM UP TIME: 10 seconds to specified accuracy, 2 minutes to maximum accuracy TEMPERATURE EFFECT: ±0.01% per °C based on 23°±25°C BATTERIES: Six “AA”, (R6) batteries (Alkaline supplied and recommended) BATTERY LIFE:...
  • Page 21 SPECIFICATIONS MEASURE DC VOLTS RANGES: 0.00 to 110.00 mV; 0.00 to 10.25 V; 0.0 to 200.0 V ACCURACY: ±(0.05% of 110 mV+ 0.01mV) = ±0.07 mV ±(0.05% of 10.25 V + 0.01V) = ±0.02V ±(2% of 200.0 V + 0.1V) = ±4.1 V INPUT RESISTANCE: >1 Meg Ohm to 10.25V, >5 Meg Ohm to 200V SOURCE RESISTANCE EFFECT: 0.01% per 100 Ohms SOURCE THERMOCOUPLES...
  • Page 22: Thermocouple Specifications

    THERMOCOUPLE SPECIFICATIONS °C TYPE RANGE ACCURACY 100 to 1200 ±1.7 -50 to 99 ±1.8 -150 to -49 ±2.2 -200 to -149 ±2.8 1100 to 1372 ±2.2 0 to 1099 ±2.0 -100 to -1 ±2.3 -200 to -99 ±3.6 200 to 400 ±1.7 0 to 199 ±1.9...
  • Page 23 RTD SPECIFICATIONS RTD TYPE ALPHA °C RANGE ACCURACY Pt 100 (DIN/IEC/JIS 1989) 1.3850 Pt 100 (Burns) 1.3902 Pt 100 (Old JIS 1981) 1.3916 Pt 100 (US Lab) 1.3926 Ni 120 1.6720 Cu 10 1.4274 RTD TYPE ALPHA °F RANGE ACCURACY Pt 100 (DIN/IEC/JIS 1989) 1.3850 Pt 100...
  • Page 24: Warranty

    Products will be replaced, repaired, or adjusted at our option. Altek gives no other warranties, including any implied warranty of fitness for a particular purpose. Also, Altek shall not be liable for any special, indirect, incidental or consequential damages or losses arising from the sale or use of its products.
  • Page 25 PN 1800470 Rev A April 2002 ©2002 Altek Industries, Inc. Specifications subject to change without notice. All rights reserved. Printed in U.S.A.
