Altek Pocketcal 134-2 Operating Instructions

Milliamp Calibrator

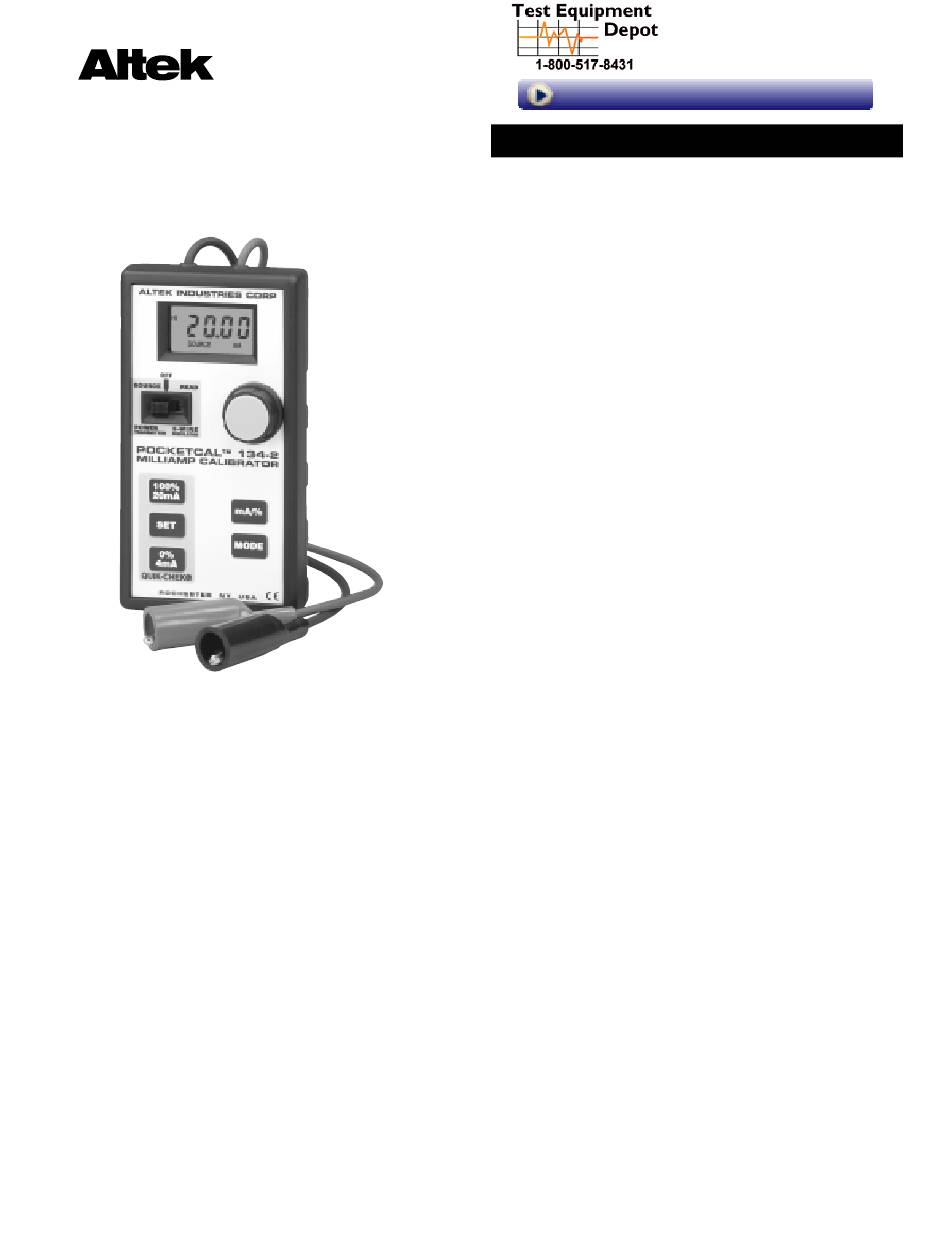

Pocketcal 134-2
• All milliamp loop functions
Source milliamps
Simulate two-wire transmitters
Read milliamp outputs
Power & measure two-wire transmitters
• Compact and lightweight
Fits easily into your pocket
Weighs less than half a pound
Clip it onto your belt with optional case
• Easy to use
Turn it on and start calibrating
• Accuracy to ±0.08%
Within ±0.03 mA from 4 to 20 mA
• Long lasting batteries
Two "9V" Alkaline batteries last many shifts
• "Quik-Chek ® " pushbuttons
Instantly output 4.00 and 20.00 milliamps
• Milliamp or percent display
Source or read from 0.00 to 24.00 mA or from
-25.0 to +125.0% of 4 to 20 mA span
Visit us at www.TestEquipmentDepot.com
General description
Easy to use
The Altek Pocketcal 134-2 will check, calibrate and
measure all of your current signal instruments in a 4
to 20 milliamp DC loop. Use at every point in your
loop. Source & read 0.00 to 24.00 mA, Simulate a
two-wire transmitter or use the 134-2 to
simultaneously power & measure your 2-wire
transmitters. Toggle the display to show milliamps or
percent of 4 to 20.
Source milliamps
Calibrate recorders, digital indicators, stroke valves or
any other instruments that get their input from a 4 to
20 mA loop. Easily set any value to within 0.01 mA
with the speed sensitive digital potentiometer.
Recall output setting
The "Quik-Chek" pushbuttons provide rapid checking
of 4.00, 20.00 and a third point between 0.00 to 24.00
mA.
Calibrate using loop power
Check loop wiring and receivers by using the 134-2 in
place of a 2-wire transmitter. Simulate a changing
process input to check loop response and control
settings. The 134-2 uses any loop power from 3 to
45 VDC.
Read loop current
Check controller outputs or measure the milliamp
signal anywhere in the loop. The 134-2 measures
0.00 to 24.00 mA signals with much greater accuracy
than a typical multimeter. Toggle the display to show
milliamps or percent of 4 to 20.
Power and measure 2-wire transmitters
Simultaneously measure the output of a 2-wire
transmitter while using the internal batteries to supply
up to 14 VDC to power the transmitter. Handy for
checking transmitters in the field or on the bench.
