Panasonic Lumix DMC-FH22 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Digital Camera
  5. Lumix DMC-FH22
  6. Operating instructions manual
Panasonic Lumix DMC-FH22 Operating Instructions Manual

Panasonic Lumix DMC-FH22 Operating Instructions Manual

Advanced features
Hide thumbs Also See for Lumix DMC-FH22:

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

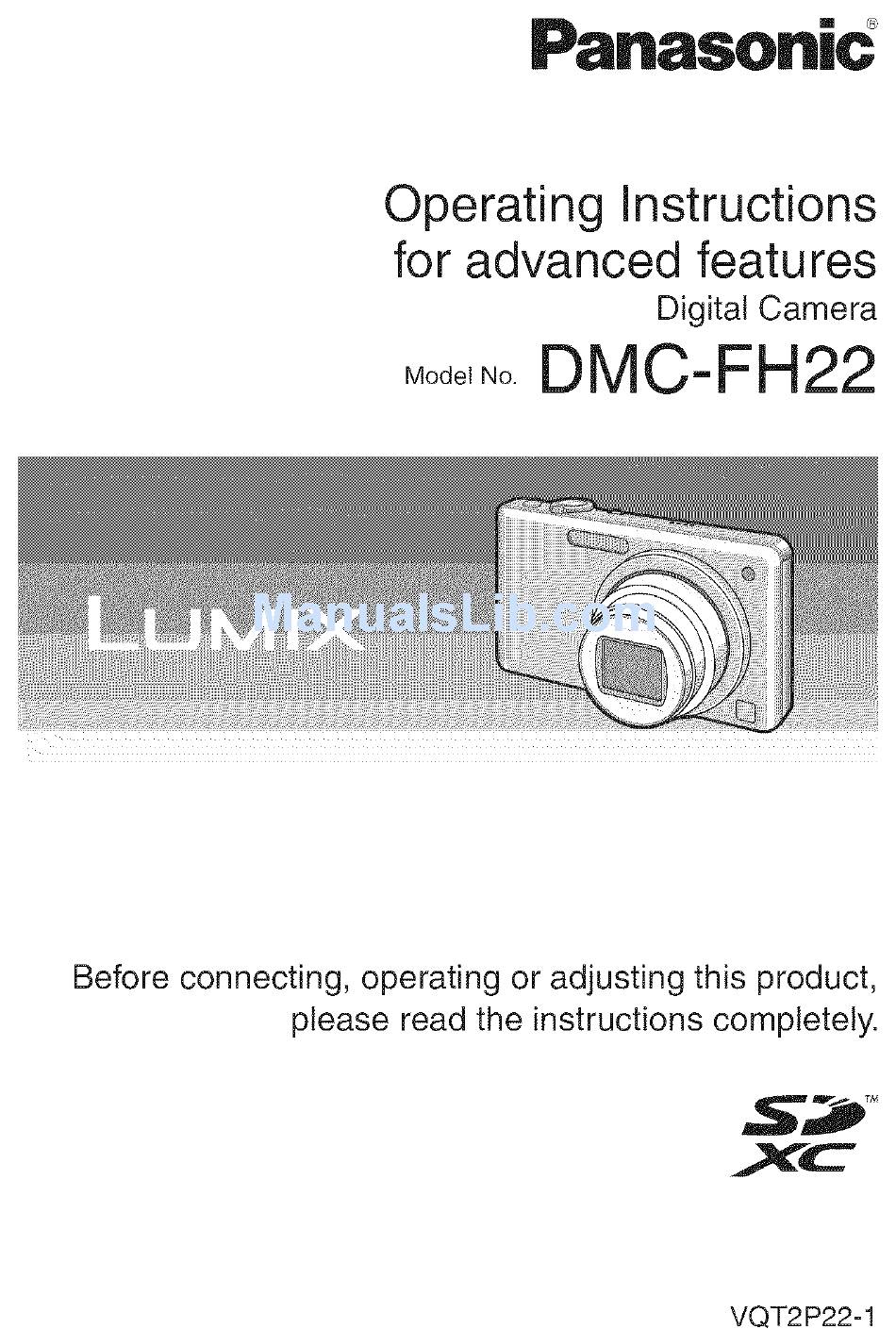

Pa.aso.iC
Operating Instructions
for advanced features
Digital Camera
_ode,
_oDMC-FH22
Before connecting,
operating
or adjusting
this product,
please read the instructions
completely.
VQT2P22-1
