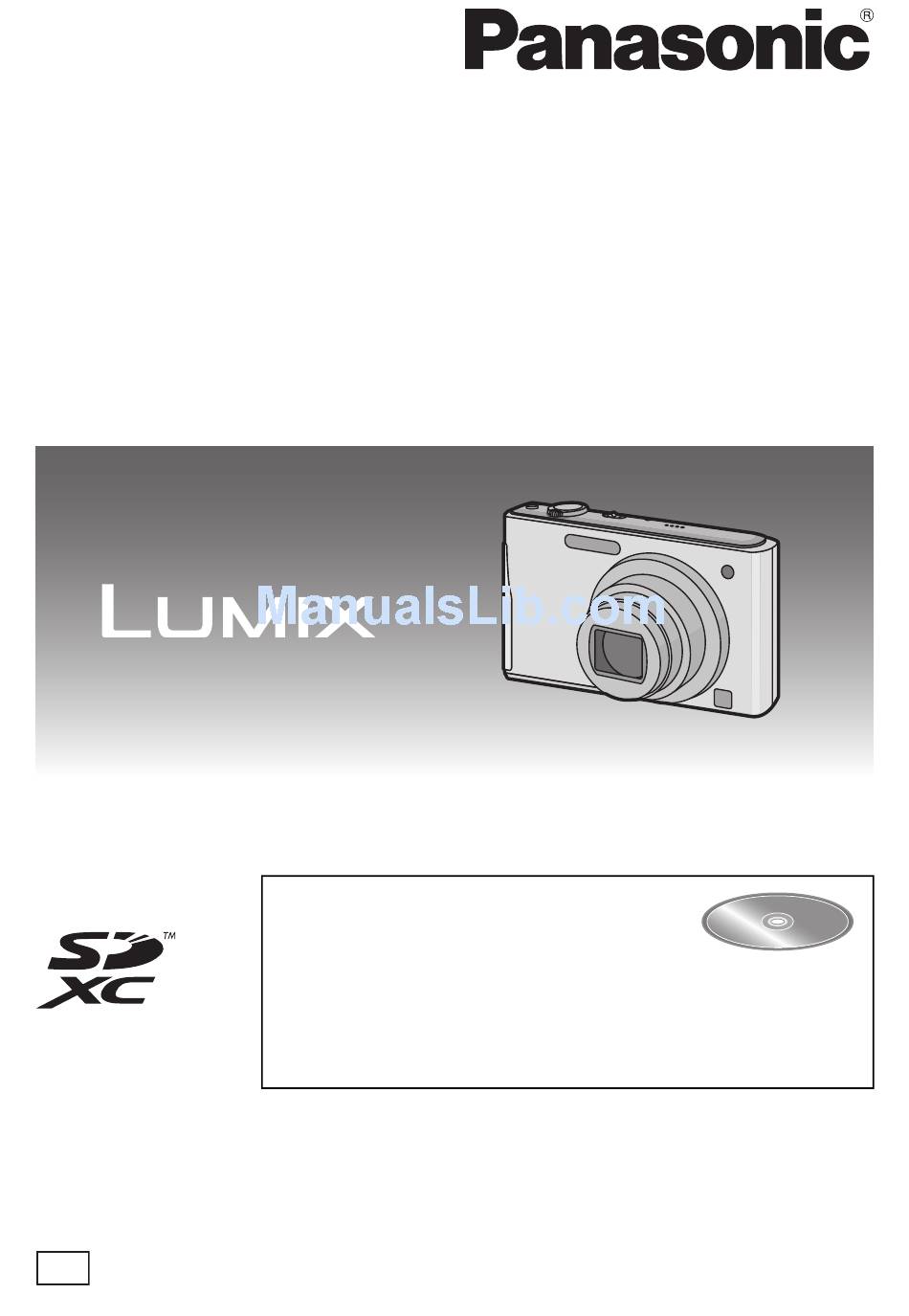

Before use, please read these instructions completely.
GN

Basic Operating Instructions

More detailed instructions on
the operation of this camera are
contained in "Operating
Instructions for advanced features
(PDF format)" in the supplied CD-ROM. Install
it on your PC to read it.

Digital Camera

DMC-FH25
Model No.
DMC-FH5
DMC-FH2
VQT3D47

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumix DMC-FH25 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic Lumix DMC-FH25

Summary of Contents for Panasonic Lumix DMC-FH25

  • Page 1: Basic Operating Instructions

    Basic Operating Instructions Digital Camera DMC-FH25 Model No. DMC-FH5 DMC-FH2 Before use, please read these instructions completely. More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it.

  • Page 2: Information For Your Safety

    Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.
  • Page 3 ∫ About the battery pack CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. • Do not heat or expose to flame. •...

  • Page 4: Cautions For Use

    • Do not use any other USB connection cables except the supplied one. In the event of abnormal operation (e.g. if the unit emits smoke or an unusual smell), immediately stop operating the unit and consult the Panasonic Customer Care Centre on 132600.
  • Page 5 -If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

  • Page 6: Table Of Contents

    Contents Information for Your Safety ................2 Standard Accessories ................... 7 Names of the Components ................8 Charging the Battery ................... 11 • Charging ....................11 • Approximate operating time and number of recordable pictures ..13 About the Built-in Memory/the Card ............14 Inserting and Removing the Card (optional)/the Battery ......

  • Page 7: Standard Accessories

    Standard Accessories Check that all the accessories are supplied before using the camera. Product numbers correct as of January 2011. These may be subject to change. ¢ Battery Pack (Indicated as battery pack or battery in the text) Charge the battery before use. Battery Charger (Indicated as battery charger or NCA-YN101H...

  • Page 8: Names Of The Components

    Names of the Components Flash (DMC-FH25) Lens Self-timer indicator AF Assist Lamp (DMC-FH5) (DMC-FH2) LCD monitor [MENU/SET] button [DISP.] button [Q.MENU]/Delete/Cancel button [MODE] button [Rec]/[Playback] selector switch VQT3D47 (ENG)
  • Page 9 10 Cursor buttons A: 3/Exposure compensation B: 4/Macro Mode AF Tracking C: 2/Self-timer D: 1/Flash setting In these operating instructions, the cursor buttons are described as shown in the figure below or described with 3/4/2/1. e.g.: When you press the 4 (down) button Press 4 Strap eyelet •...
  • Page 10 18 19 [E.ZOOM] button 20 Tripod receptacle 21 Card/Battery door 22 DC coupler cover • When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-DCC10; optional) (DMC-FH5) (DMC-FH2) and AC adaptor (DMW-AC5G; optional) are used. 14 15 •...

  • Page 11: Charging The Battery

    Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. • Use the dedicated charger and battery.

  • Page 12: Charging Time

    ∫ About the [CHARGE] indicator The [CHARGE] indicator turns on: The [CHARGE] indicator A is turned on during charging. The [CHARGE] indicator turns off: The [CHARGE] indicator A will turn off once the charging has completed without any problem. • When the [CHARGE] indicator flashes –...

  • Page 13: Approximate Operating Time And Number Of Recordable Pictures

    • Temperature: 23 oC/Humidity: 50%RH when LCD monitor is on. • Using a Panasonic SD Memory Card (32 MB). • Starting recording 30 seconds after the camera is turned on. (When the Optical Image Stabilizer function is set to [ON].) •...

  • Page 14: About The Built-In Memory/The Card

    Memory Card compatible equipment. • Check that the PC and other equipment are compatible when using the SDXC Memory Cards. SDXC Memory Card http://panasonic.net/avc/sdcard/information/ (48 GB, 64 GB) SDXC.html • Only the cards with capacity listed left can be used.

  • Page 15: Inserting And Removing The Card (Optional)/The Battery

    Inserting and Removing the Card (optional)/the Battery • Check that this unit is turned off. • We recommend using a Panasonic card. (DMC-FH25) Slide the card/battery door to open it. • Always use genuine Panasonic batteries (NCA-YN101H; supplied or DMW-BCK7E; optional).
  • Page 16 (DMC-FH5) (DMC-FH2) Slide the release lever in the direction of the arrow and open the card/battery door. • Always use genuine Panasonic batteries (NCA-YN101H; supplied or DMW-BCK7E; optional). • If you use other batteries, we cannot guarantee the quality of this product.

  • Page 17: Setting Date/Time (Clock Set)

    Setting Date/Time (Clock Set) • The clock is not set when the camera is shipped. Slide the [Rec]/[Playback] selector switch to [ ] and then turn the camera on. Press [MENU/SET]. Press 2/1 to select the items (year, month, day, hour, minute, display sequence or time display format), and press 3/4 to set.

  • Page 18: Selecting The [Rec] Mode

    Selecting the [Rec] Mode Slide the [Rec]/[Playback] selector switch to [!]. Press [MODE]. Press 3/4/2/1 to select the mode. Press [MENU/SET]. VQT3D47 (ENG)
  • Page 19 ∫ List of [Rec] Modes Intelligent Auto Mode ¦ The subjects are recorded using settings automatically selected by the camera. Normal Picture Mode The subjects are recorded using your own settings. My Scene Mode Pictures are taken using previously registered recording scenes. Scene Mode Û...

  • Page 20: Taking Pictures Using The Automatic Function ( Ñ : Intelligent Auto Mode)

    ñ [Rec] Mode: Taking pictures using the automatic function : Intelligent Auto Mode) ñ The camera will set the most appropriate settings to match the subject and the recording conditions so we recommend this mode for beginners or those who want to leave the settings to the camera and take pictures easily.

  • Page 21: Scene Detection

    Scene Detection When the camera identifies the optimum scene, the icon of the scene concerned is displayed in blue for 2 seconds, after which its colour changes to the usual red. > [i-Portrait] ¦ [i-Scenery] [i-Macro] • [i-Night Portrait] Only when [ ] is selected [i-Night Scenery] [i-Sunset]...

  • Page 22: Motion Picture Mode

    [Rec] Mode: Motion Picture Mode Slide the [Rec]/[Playback] selector switch to [!], and then press [MODE]. Press 3/4/2/1 to select [Motion Picture], and then press [MENU/SET]. Press the shutter button halfway to focus and then press it fully to start recording. A Available recording time B Elapsed recording time •...

  • Page 23: Playing Back Pictures ([Normal Play])

    ¸ [Playback] Mode: Playing Back Pictures ([Normal Play]) Slide the [Rec]/[Playback] selector switch to [(]. Press 2 or 1. • After selecting the motion picture, press 3 to start playback. (ENG) VQT3D47...

  • Page 24: Deleting Pictures

    ¸ [Playback] Mode: Deleting Pictures Once deleted, pictures cannot be recovered. • Pictures on the built-in memory or the card that are being played back will be deleted. Select the picture to be deleted, and then press [ • Confirmation screen is displayed. Picture is deleted by selecting [Yes].

  • Page 25: Setting The Menu

    Setting the Menu Press [MENU/SET]. Press 2/1 to select menu and then press [MENU/SET]. Press 3/4 to select the menu item and then press [MENU/SET]. • Screen at right is an example of selecting [AF Mode] in [Rec] mode Menu. Press 3/4 to select the setting and then press [MENU/SET].

  • Page 26: Reading The Operating Instructions (Pdf Format)

    Reading the Operating Instructions (PDF format) More detailed instructions on the operation of this camera are contained in “Operating Instructions for Advanced Features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ∫ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied).
  • Page 27 OS from the following Web Site. http://get.adobe.com/reader/otherversions ∫ To uninstall the Operating Instructions (PDF format) Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder. • When the contents in the Program Files folder cannot be displayed, click the [Show the contents of this folder] to display them.

  • Page 28: Specifications

    Specifications Digital Camera: Information for your safety Power Source: DC 5.1 V Power Consumption: 1.1 W (When recording) 0.7 W (When playing back) Camera effective (DMC-FH25) (DMC-FH5) pixels 16,100,000 pixels (DMC-FH2) 14,100,000 pixels Image sensor (DMC-FH25) (DMC-FH5) 1/2.33q CCD, total pixel number 16,600,000 pixels, Primary colour filter (DMC-FH2) 1/2.33q CCD, total pixel number 14,500,000 pixels,...
  • Page 29 Focus range Normal (DMC-FH25) 50 cm (Wide)/2 m (Tele) to ¶ (DMC-FH5) (DMC-FH2) 50 cm (Wide)/1 m (Tele) to ¶ Macro/ 5 cm (Wide)/1 m (Tele) to ¶ Intelligent auto/ Motion picture Scene Mode There may be differences in the above settings.
  • Page 30 Flash range (DMC-FH25) Approx. 60 cm to 5.8 m (Wide, [ ] is set) (DMC-FH5) (DMC-FH2) Approx. 40 cm to 3.3 m (Wide, [ ] is set) Microphone Monaural Speaker Monaural Recording media Built-in Memory (Approx. 70 MB)/SD Memory Card/ SDHC Memory Card/SDXC Memory Card Recording file format...
  • Page 31 Battery Charger (Panasonic DE-A92A): Information for your safety Input: 110 V to 240 V, 50/60 Hz, 0.2 A Output: 4.2 V, 0.43 A Battery Pack (lithium-ion) (Panasonic NCA-YN101H): Information for your safety Voltage/capacity: 3.6 V/660 mAh (ENG) VQT3D47...
  • Page 32 Corporation. DynaFont is a registered trademark of DynaComware Taiwan Inc. • Other names, company names, and product names printed in these instructions are trademarks or registered trademarks of the companies concerned. Panasonic Corporation Web Site: http://panasonic.net VQT3D47 F1210NK0  Panasonic Corporation 2011...
