Sony XS-V1331 Instructions Manual
Sony XS-V1331 Instructions Manual

Sony XS-V1331 Instructions Manual

3-way speaker
Hide thumbs Also See for XS-V1331:

Advertisement

Quick Links

:SONY:
3-04_-208-,,/1/
87-000-814-01
3.way
Speaker
Instructions
XS-V1621
XS-V1331
Sony Corporation
© 2000

Advertisement

loading
Need help?

Need help?

Do you have a question about the XS-V1331 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony XS-V1331

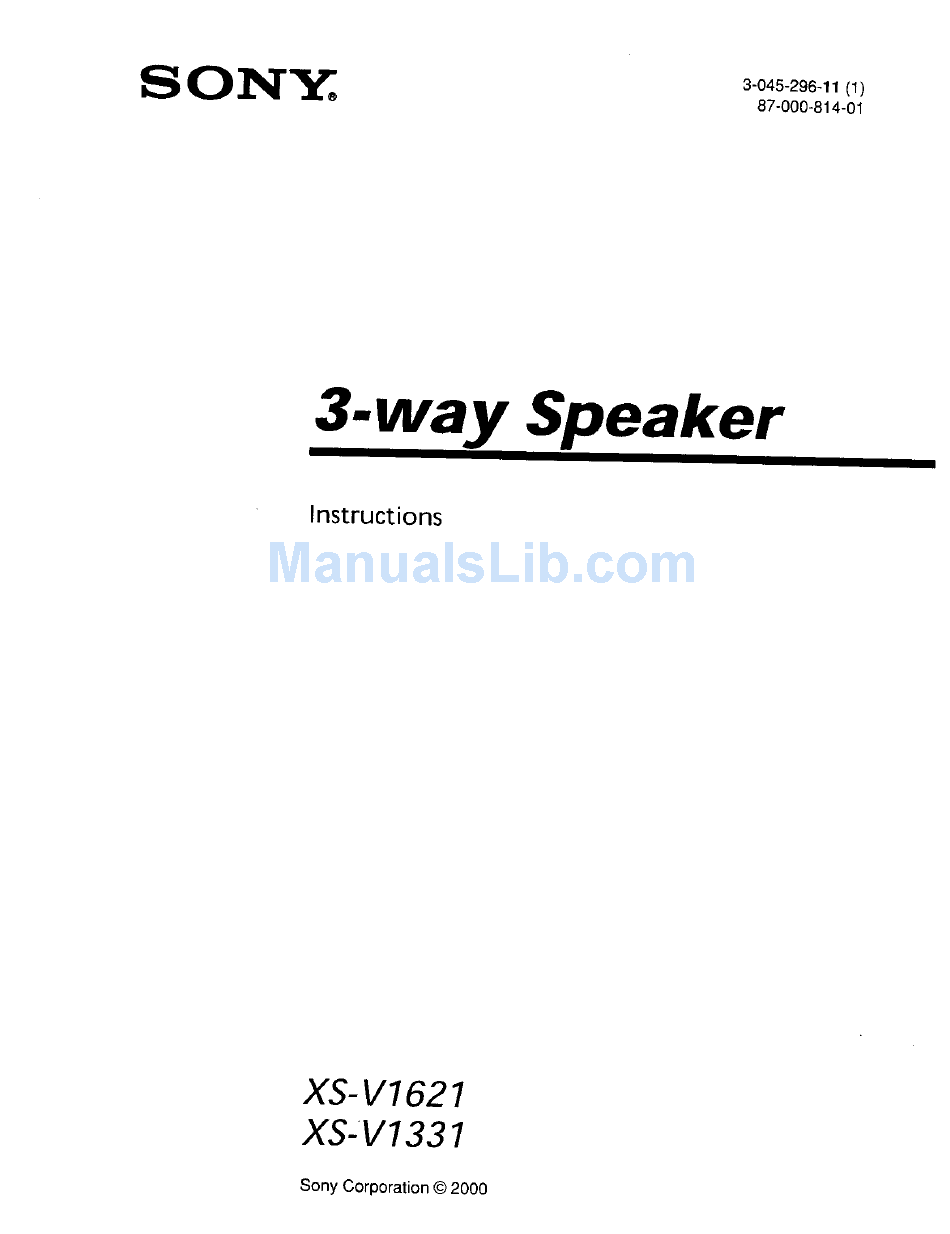

  • Page 1 :SONY: 3-04_-208-,,/1/ 87-000-814-01 3.way Speaker Instructions XS-V1621 XS-V1331 Sony Corporation © 2000...
  • Page 3: Parts List

    Parts list ® ® ® (x2) (x2) ® ® ¢4×30 (x8) (x8)
  • Page 4 Dimensions Unit: mm (in.) o 5 C/') XS-V1621 13.5 P/_O 23 (zg/_) XS-V1331 5 × 9 (7/32x 31.) 20.5 q 10 (13/_z) Mounting depth XS-1621 43 (1 3/_) XS-1331 51 (2 _/s)
  • Page 5: Before Mounting

    • Make sure that the speaker does not hinder the movement of torsion bar springs etc. of the trunk lid. * (XS-V1331) If you cannot find an appropriate mounting location, check with your car dealer or consult the nearest Sony dealer.
  • Page 6 Mounting from the car interior (Top mounting) Mark the four bolt holes and make them 3.3 mm* (5/32in.) in diameter. When using (_: ¢ 5 mm (7/zzin.) ¢ 3.3 mm (5/3z') X_V1621:_127 mm (5") XS-V1331: Black.striped cord * White cord Le[t speaker Gray cord -- Right speaker...
  • Page 7 Black-striped cord * White cord -- Left speaker Gray cord -- Right speaker Power amplifier etc. "7...
  • Page 8: Specifications

    Specifications XS-V1621 Coaxial 3-way: Speaker Woofer 15.8 cm (6 I/4 in.) cone type Midrange 3,5 cm (1 7/_6 in.) balance dome type Tweeter 1.1 cm (7/_ in.) dome type 130 watts Maximum input power 35 watts Rated input power 4 ohms Impedance 91 dB/W/m Sensitivity...
  • Page 9 Precautions • Do not continuously use the speaker system beyond the maximum power handling capacity. • Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.
  • Page 10 SonyOline http://www.world.sony.com/ Sony Corporation Printed in USA...
