Page 1: Quick Start

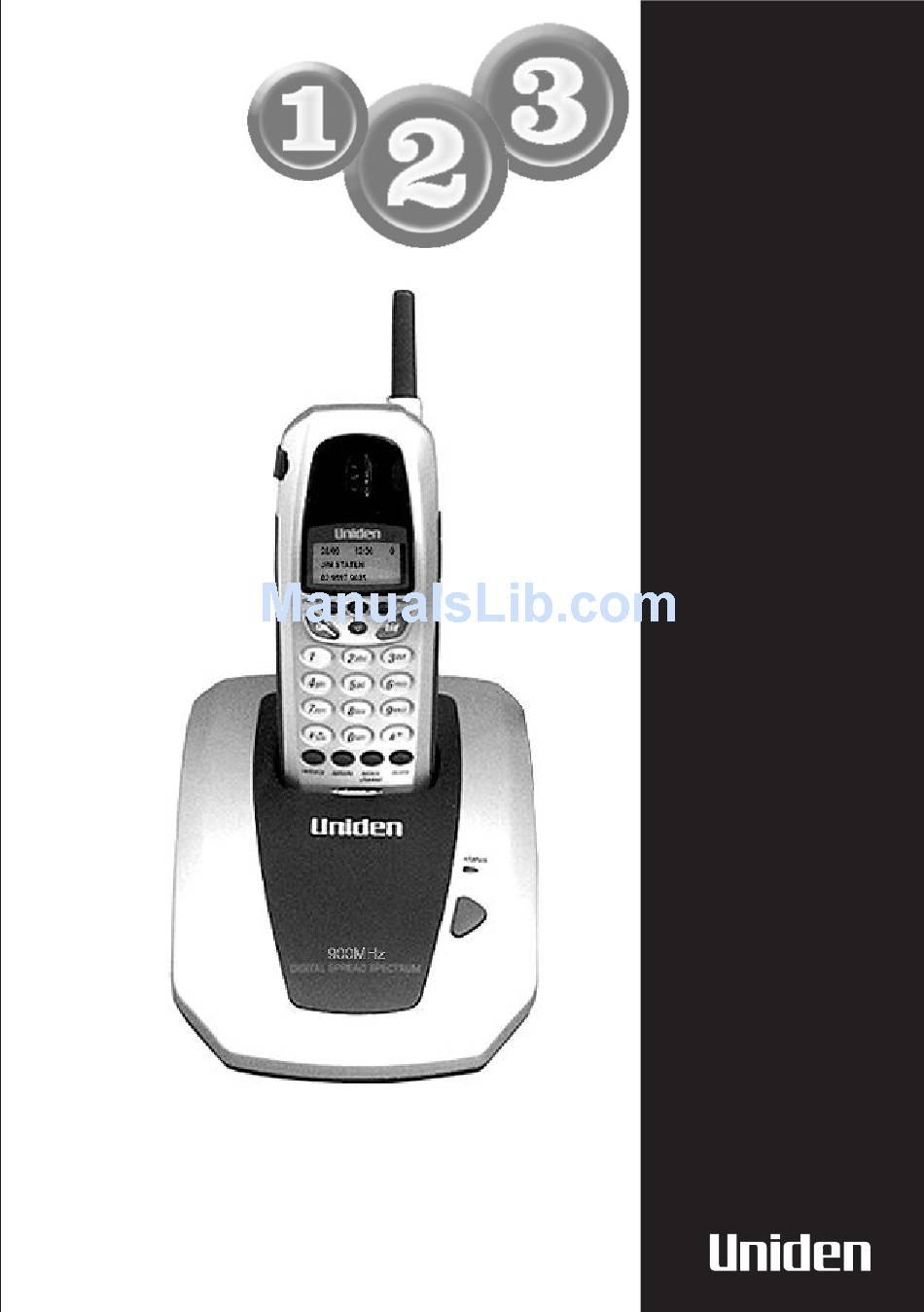

Start Here! Quick Start Guide next page - Optional Handset Charge Base Suits models - DS815 DS825 DS845 DS875 QUICK START GUIDE... -
Page 2: Installation & Safety
INSTALLATION & SAFETY Choosing the best location for your telephone When choosing a location for your phone there are a number of appliances the phone should not be near, and areas you should avoid. CHOOSE - This symbol indicates Raise the Antenna a central location important operating and AVOID -... -
Page 3: Quick Start Guide
This page is a very condensed version of the Owners Manual. It is designed to allow you to get your phone installed and operating as quickly as possible - however it does not attempt to explain any of the advanced features of the DS805. - Page 4 Registering your phone This additional Handset is able to be used in conjunction with models DS815, DS825, DS845 and DS875 cordless telephones. The new handset needs to be allocated a handset number and registered to the Main Base (DS815, DS825, DS845 & DS875). The Main Base has a telephone cord plugged into it and also has an Antenna, not to be confused with the additional charger(s).
-
Page 5: Table Of Contents
CONTENTS Installation & Safety Quick Start Guide ii, iii Contents Introduction Welcome Features Included in your Package Battery Maintenance Preparing the Battery Pack Battery use time (per charge) When the Battery Charge becomes Low Cleaning the Battery Contacts Adjusting the Ringer and Earpiece Volume Installing the Belt Clip Headset Installation Using Your New Phone... - Page 6 CONTROLS & FUNCTIONS The DS805 is an optional handset and charger. It can only be used in conjunction with a compatible telephone such as the DS815, 28/09 12:30 JIM STATEN DS825, DS845 and 02 9597 9035 DS875. memory flash/ options select delete/ page Headset jack...
- Page 7 Charge Base Charging contacts Charge LED Non functional key AC power adaptor input Rear charge 900MHz DIGITAL SPREAD SPECTRUM...
-
Page 8: Introduction
WELCOME Congratulations on your purchase of the Uniden DS805 extra handset. This phone is designed for reliability, long life and outstanding performance utilising the latest in 900MHz Digital Spread Technology. The DS805 is an optional handset and charger. It can only be used in conjunction with a compatible telephone such as the DS815, DS825, DS845 and DS875. -
Page 9: Included In Your Package
INCLUDED IN YOUR PACKAGE To get the most from your phone, please read this memory flash Owner’s Manual thoroughly. Be sure to complete and mail charge the product consumer support card. DIGITAL SPREAD SPECTRUM options select/ delete channel Handset Charge Base NOTE If any of these items are missing or damaged,... -
Page 10: Battery Maintenance
In order to enjoy the best performance from your phone, we recommend discharged. you replace your batteries every two years with a genuine Uniden Battery. Simply order a replacement battery from: Uniden Australia PTY Limited... -
Page 11: Adjusting The Ringer And Earpiece Volume
ADJUSTING THE RINGER AND EARPIECE VOLUME Ringer tone and volume The phone has four ringer tone and volume RINGER A HIGH combinations. In the standby mode, press on the handset repeatedly. The display shows the setting. Earpiece volume TALK LOUD Pressing during a call will change the earpiece volume of the handset. -
Page 12: Using Your New Phone
MAKING AND RECEIVING CALLS Up to 7 Handsets may be registered to any one compatible Telephone Base such as the DS815, DS825, DS845 and DS875. One handset can talk to an outside line, while at the same time two other handsets may have an internal call with each other using the Page feature (see page 13). -
Page 13: Call Transfer
CALL TRANSFER During a call, you can transfer the call to another optional handset (maximum 7 handsets). delete/page 1. Press NOTE 2. Press handset No. TRANSFER TO The handset number is shown on the HAND # (1 - 7) If the called handset is not right side of the display. -
Page 14: Travelling Out Of Range
CALL WAITING/FLASH If the Call Waiting tone sounds during a call - Press , then to switch between callers. Australia: flash/reg New Zealand: Press to switch between callers. flash/reg TRAVELLING OUT OF RANGE During a call, noise will increase if you move your handset too far from your base unit. If the range limit of your base unit is exceeded, your call will terminate within 30 seconds. -
Page 15: Storing Phone Numbers And Names
STORING PHONE NUMBERS AND NAMES Memory Dialling allows you to dial a number using just a few key strokes. You can store up to 29 phone numbers in the memory. MEMORY STORE 1. Press and hold until memory MEMORY is displayed. Store 01 EMPTY 2. -
Page 16: Making Calls With Memory Dialling
MAKING CALLS WITH MEMORY DIALING Memory Dialing from Standby memory 1. Press once, the handset displays 01 FRED your programmed memory locations. 02 JOHN SMITH 2. Press or enter a two-digit 03 KAY JONES number to select the memory location you would like to dial. talk 3. -
Page 17: Editing A Stored Name And Phone Number
EDITING A STORED NAME AND PHONE NUMBER memory 1. Press and hold until MEMORY STORE MEMORY STORE is displayed. 01 FRED 2. Press or enter a two-digit number 02 JOHN SMITH to select the memory location you would like to edit. 3. -
Page 18: Erasing A Stored Name And Phone Number
ERASING A STORED NAME AND PHONE NUMBER memory 1. Press and hold until MEMORY MEMORY STORE STORE is displayed. 01 FRED 2. Press or enter a two-digit 02 JOHN SMITH number to select the memory location you would like to edit. 3. -
Page 19: Caller Id
CALLER ID You must subscribe to the Caller ID service from your local telephone company to use these features. When the telephone rings, the Caller ID feature allows you to view the caller’s name NOTE and phone number on the display before you answer the phone. The handset displays the phone number of the incoming call, the name, time and the number of calls. -
Page 20: Viewing The Caller Id Message List
Viewing the Caller ID Message List The Caller ID list stores information for up to 60 incoming calls-even unanswered calls. 1. Press - the summary screen is displayed. HANDSET 1 The screen shows the number of new NEW 1 messages and total messages. TOTAL 3 2. -
Page 21: Options - Dial Prefix
Using the Caller ID List 5/11 12:30 PM Calling a party from the Caller ID list FRED You can place a call from the Caller ID list. 9597 9035 The DS805 stores up to 60 messages. 1. Press - select the phone number that you want to dial by pressing TALK LOUD... -
Page 22: Troubleshooting
QUICK REFERENCE CHART If your phone is not performing to your expectations, please try these simple steps first before calling Uniden customer service - PROBLEM SUGGESTION Check that the phone line cord connectors at both ends No dial tone are pushed in until they click. -
Page 23: Warranty
(D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden. (F) Only available in the original country of sale. - Page 24 © 2001 Uniden Australia Pty Limited Uniden New Zealand Limited...
