SPECIFICATIONS
Interface Transmitter:
1 x BNC (Female) / Input Signal
1 x ST for single / Output Signal
Receiver:
1 x BNC (Female) / Output Signal
1 x ST for single / Input Signal
Bandwidth:
DC to 12 MHz
Impedance:
75 Ohm.
Input Signal Range:
1V<V
≥ 60dB
Signal-to-Noise Ratio:
Output Signal Range:
480mV<V
System Bandwidth:
8MHz
Transmission Loss:
Max. 13dB
Power Supply:
DC 9V 1Amp
Distance:
Maximum length 2.5km
Cable Type:
62.5/125um Multi-Mode fiber cable
Wave Length:
850nm
Enclosure:
Aluminum Case
2.2" (W) x 4.15" (L) x 0.8" (H)
Dimensions:
ORDERING INFORMATION
VAA-FMT1-TR
Video/Fiber Optic Converter, ST/Multi-
Mode, Kit with Transmitter and Receiver
VAA-FMT1-T
Video/Fiber Optic Converter, ST/Multi-
Mode, Transmitter
VAA-FMT1-R
Video/Fiber Optic Converter, ST/Multi-
Mode, Receiver
©UNICOM 2003. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.
Specifications subject to change without notice.
<2.4V
p-p
<1.1V
p-p
Coaxial/Fiber Optic
Video Converter

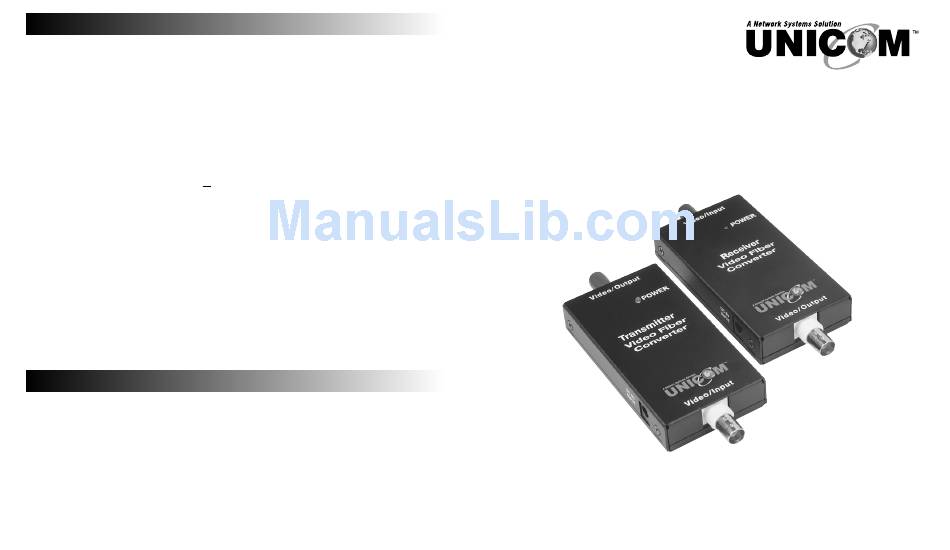

Installation Guide
City of Industry, CA 91748 U.S.A.
Phone: 626.964.7873 or 800.346.6668
e-mail: info@unicomlink.com
VAA-FMT1-TR
908 Canada Court
Fax: 626.964.7880
www.unicomlink.com
