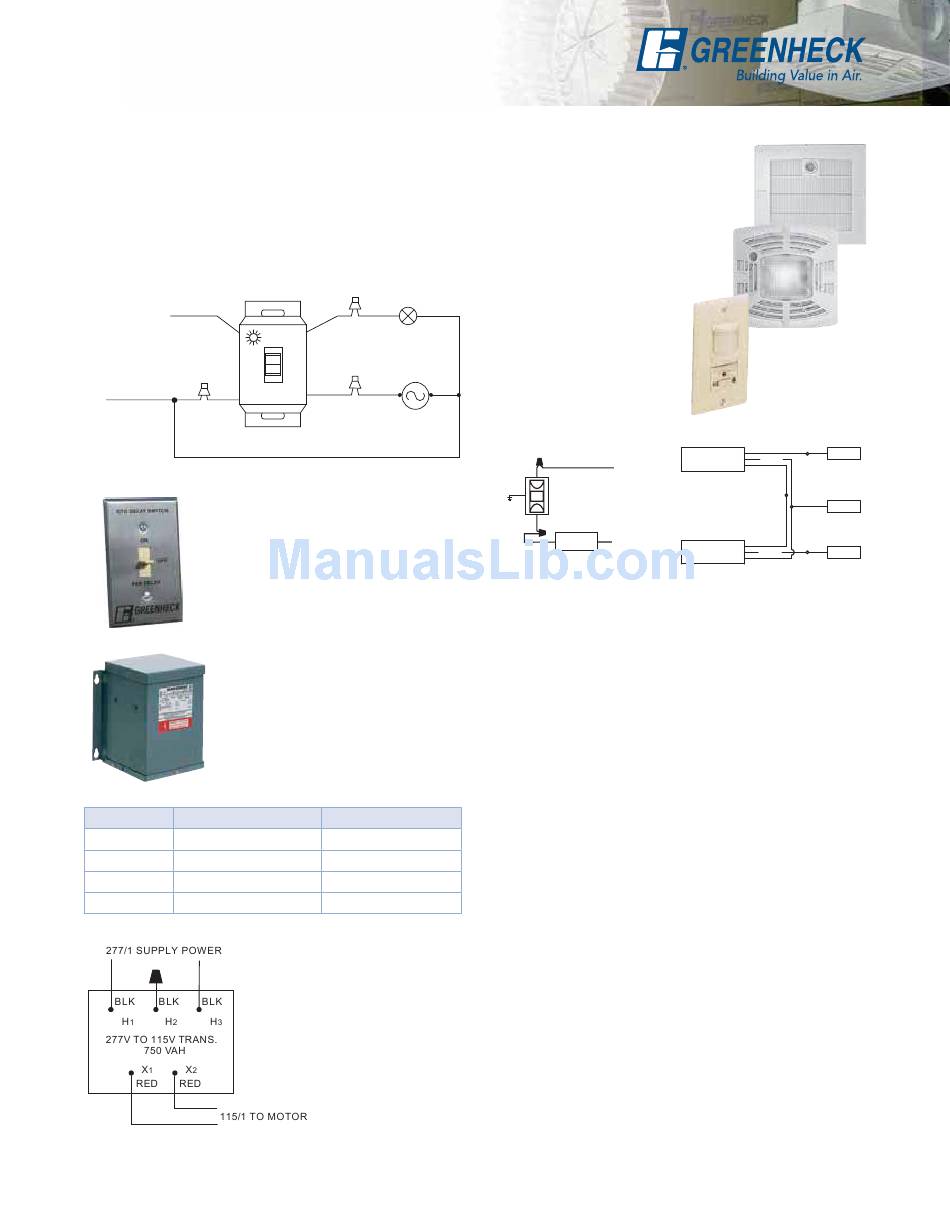

Greenheck SP Manual page 9

Control Accessories
Time Delay Switch
Time delay switches save energy by automatically
turning off equipment. They may be used with SP and
CSP fans or fan and light combinations for extended
operating time of fan. Time delay switches act in the
same manner as a standard switch, however, there is a
delay of 1 to 60 minutes after it has been turned off.
BLACK
(HOT)
115 VOLT AC
60 CYCLE
(NEUTRAL)
WHITE
Model GTD
A single switch controls both fan
and light. Available shipped loose.
• Silent Operation
• Rated for 115v
• UL Listed
• Requires 2x4 handy box
Transformers
Transformers are available for
applications requiring voltage
reduction. Selection is based on
motor amperage. All transformers
are shipped loose.
Models Voltage Ratings
T-2.0 230/277v to 115
T-4.3 230/277v to 115
T-6.5 230/277v to 115
T-8.6 230/277v to 115
(500 Watt Max)
LIGHT
BLUE
(7.5 Amps Max)
FAN MOTOR
RED
-
Amp Ratings
2.0 Amps
4.3 Amps
6.5 Amps
8.6 Amps
Motion Detectors
Motion detectors may be used with
SP and CSP fans or fan and light
combinations. Motion detectors
use a passive infrared motion
detector to automatically turn the
fan on when a change in motion
is sensed. They have
a viewing area of 180
degrees, however they
must be placed in the
line-of-sight. They also
have an adjustable time
delay shutoff setting of
1 to 20 minutes.
Hot
Black
Green
Gnd.
Red
Neutral
Load
(12.5 Amps Max.)
Wall Mount
Grille Motion Detectors are available on models
up through size SP-A390 and SP-B200.
• Rated for 115v
• UL Listed
Model MDW
For use on fan or lights. Available shipped loose.
• Rated for 115v
• UL Listed
• Requires 2x4 handy box
Black
Hot
Motion Sensor White
Red
Neutral
Black
Fan Motor and/or
Green Ground
Light
White
Grille Mount
9
