Removing the Upper Case Assembly
1. Perform the
"Removing the
2. Perform the
"Removing the LED
3. Tilt the upper case until it is approximately at a 45° angle with the LCD assembly.

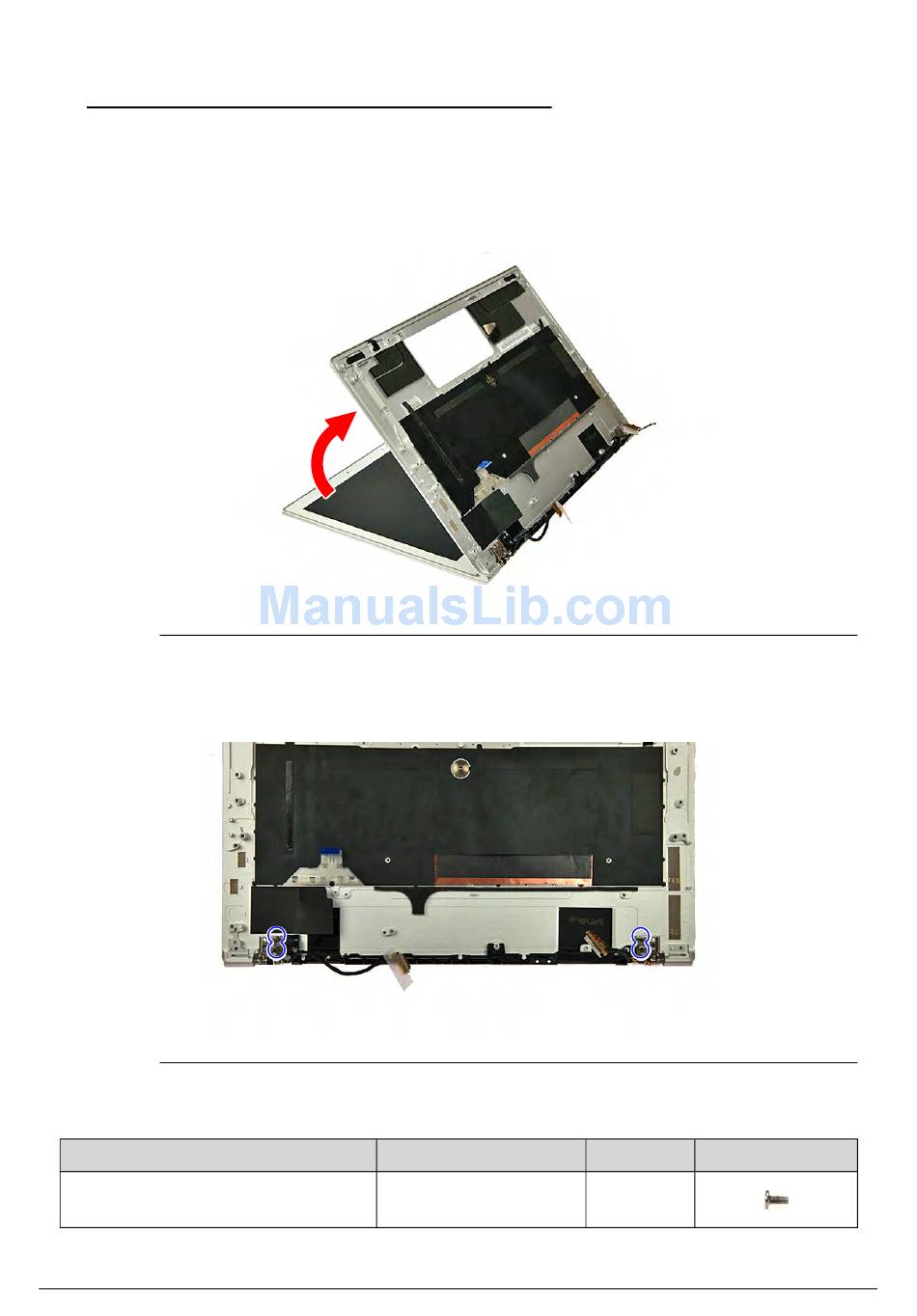

Figure 3-53. Upper Case Assembly
4. Remove the four screws securing the upper case assembly to the LCD hinges.
Figure 3-54. Upper Case Screws – LCD Hinges
Table 3-54. Screws
Step
Upper Case Disassembly
Machine Maintenance
Mainboard" procedure described on page 3-27.
Indicator" procedure described on page 3-34.
Screw
M2 x L4
Quantity
Screw Type
4
0
3-35
