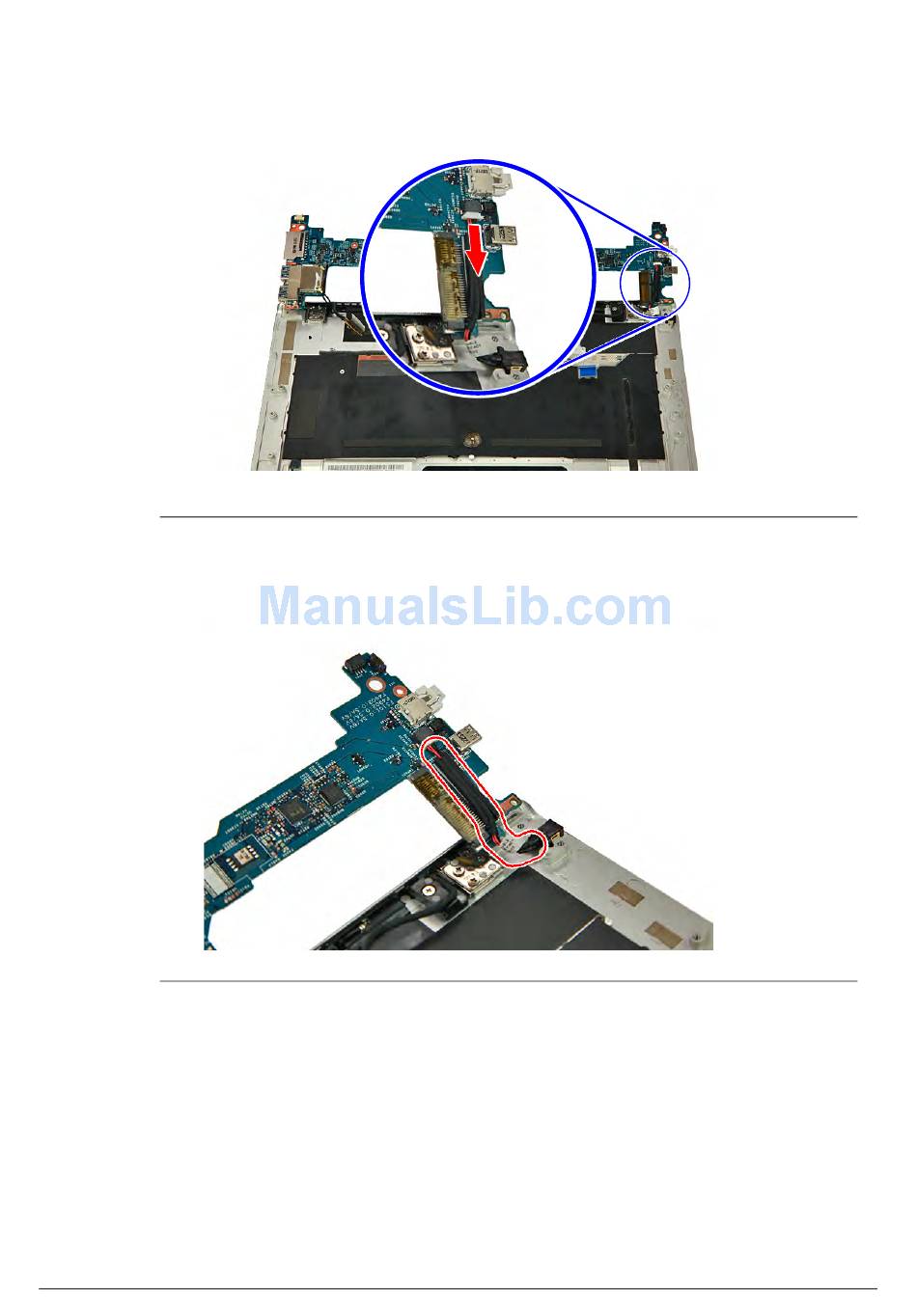

16. Disconnect the DC-In cable from the mainboard.
Figure 3-44. DC-In Cable
17. Detach the DC-In cable from the mainboard.
Figure 3-45. DC-In Cable Layout
3-30
Machine Maintenance
