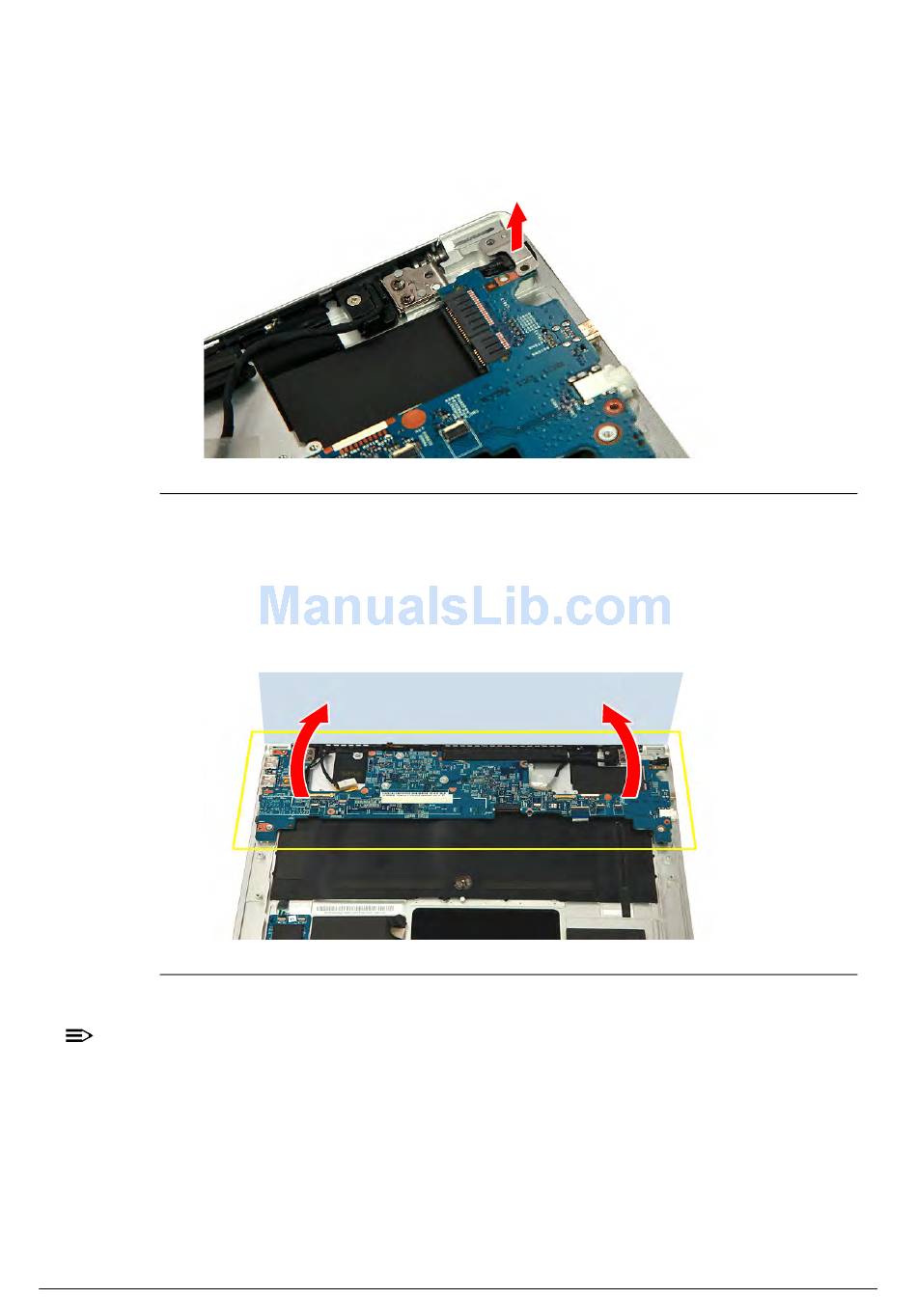

14. Detach the DC-In bracket from the upper case.
Figure 3-42. DC-In Bracket
15. Gently turn the mainboard over to access the bottom side of the mainboard.
Figure 3-43. Mainboard
NOTE:
NOTE:
A circuit board that is > 10cm
Figure 3-43. Follow the local regulations for disposing this type of circuit board.
Machine Maintenance
2
has been highlighted with a yellow rectangle in
3-29
