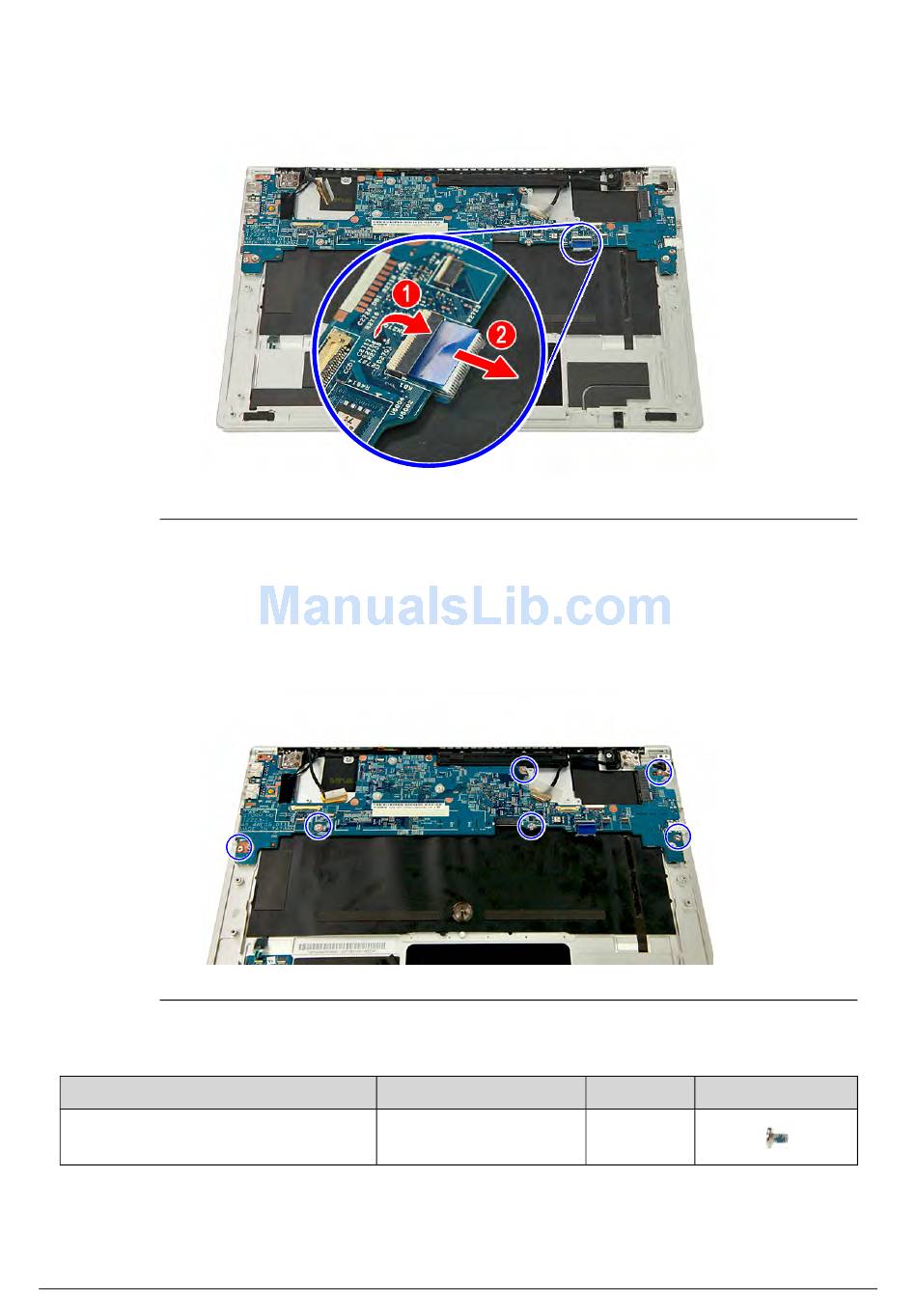

12. Release the connector latch (1) from the mainboard, then disconnect the keyboard cable (2).
Figure 3-40. Keyboard Cable
13. Remove the six screws securing the mainboard to the upper case.
Figure 3-41. Mainboard Screws
Table 3-41. Screws
Step
Mainboard Disassembly
3-28
Screw
M2 × L3
Quantity
Screw Type
6
Machine Maintenance
