5. Remove the five screws securing the touchpad module to the upper case assembly.

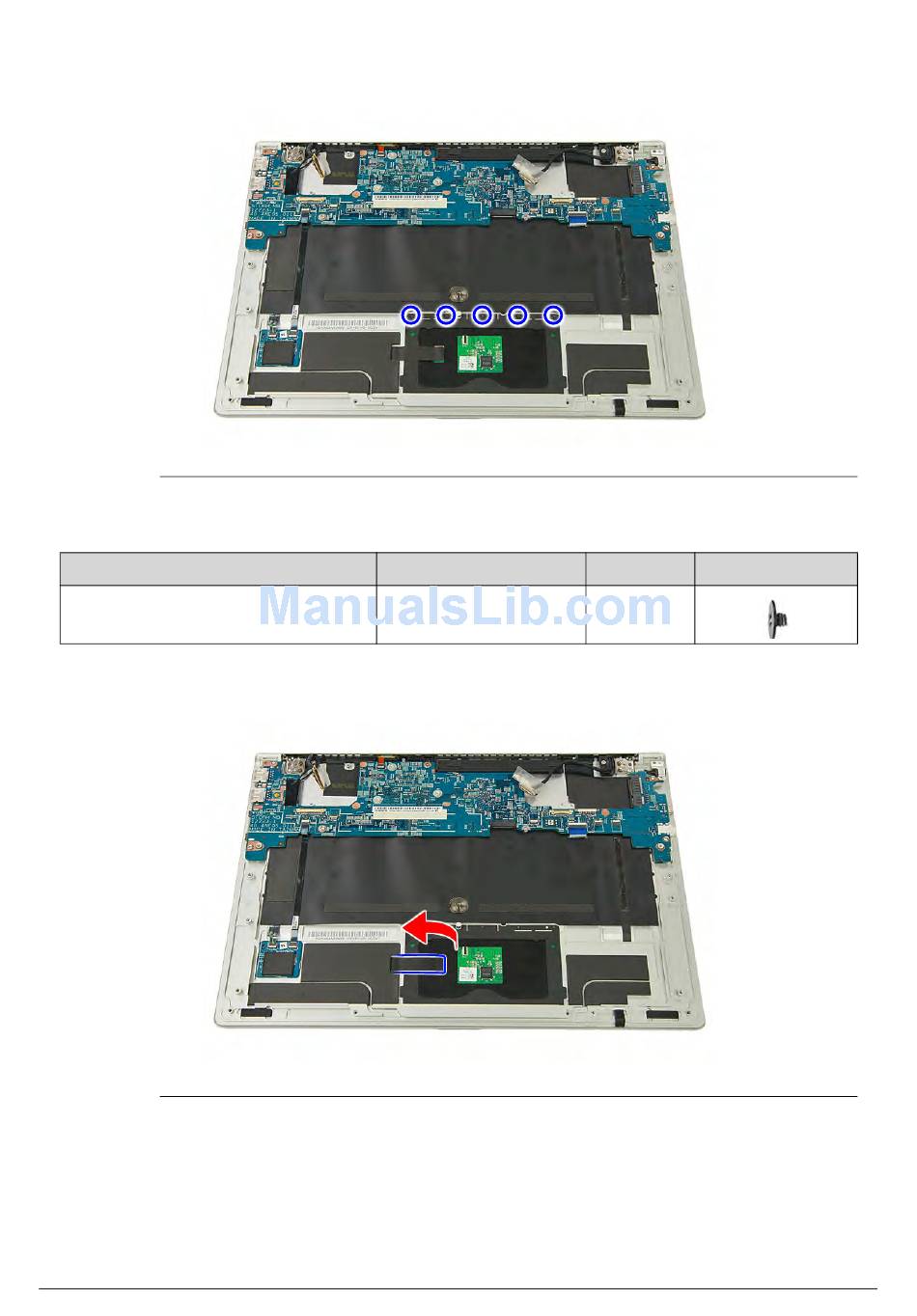

Figure 3-33. Touchpad Module Screws
Table 3-33. Screws
Step
Touchpad Module Disassembly
6. Release the touchpad module from the adhesive tape and spacer securing it.
Figure 3-34. Touchpad Module Self Adhesive Tape and Spacer
Machine Maintenance
Screw
M1.2 × L1
Quantity
Screw Type
5
3-23
