Removing the Hold Sensor Board
1. Perform the
"Removing the Lower
2. Perform the
"Removing the Battery
3. Release the connector latch (1) from the mainboard, then disconnect the hold sensor
cable (2).

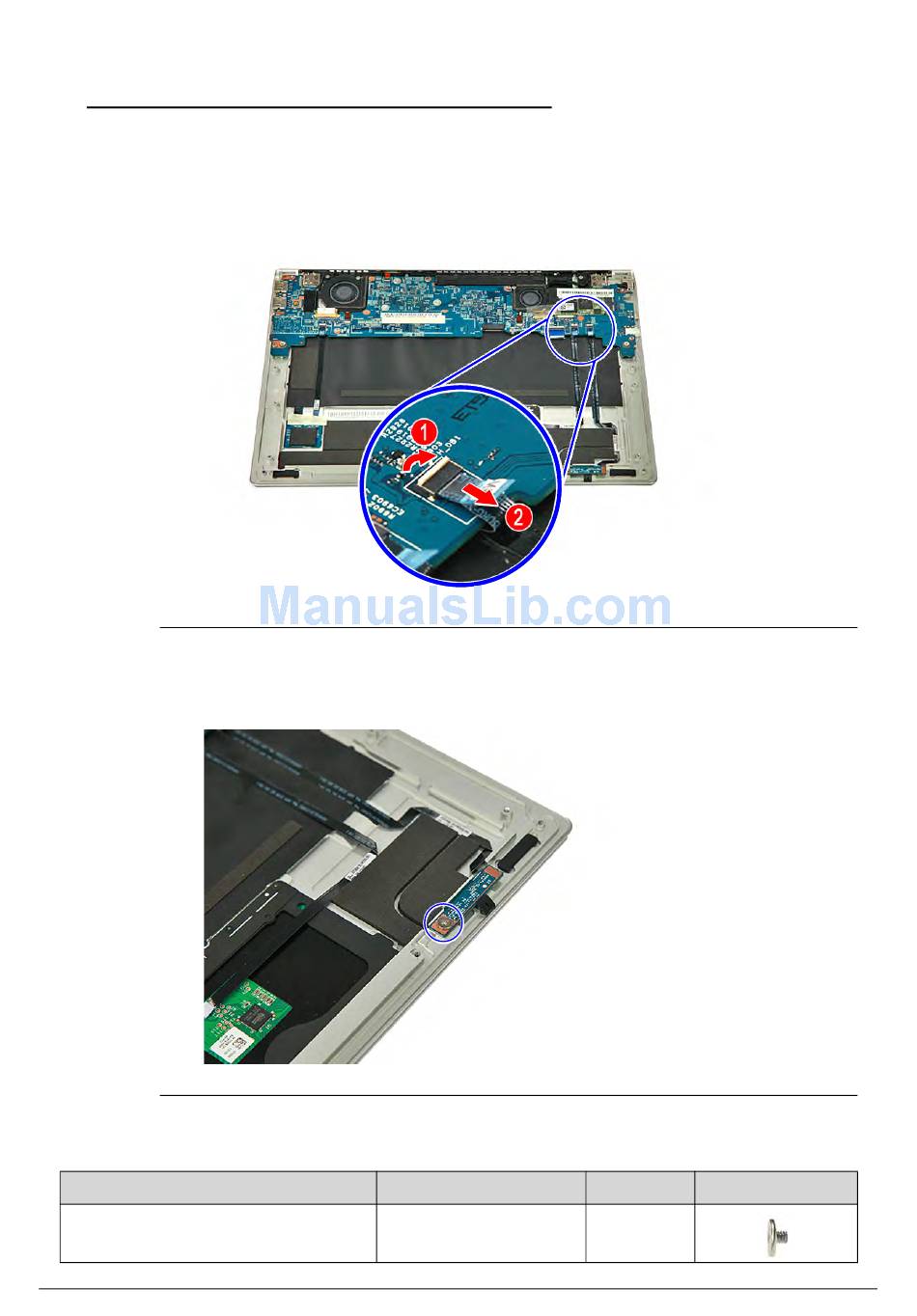

Figure 3-15. Hold Sensor Cable
4. Remove the screw securing the hold sensor board to the upper case assembly.
Figure 3-16. Hold Sensor Board Screw
Table 3-16. Screw
Step
Hold Sensor Board Disassembly
Machine Maintenance
Case" procedure described on page 3-7.
Pack" procedure described on page 3-8.
Screw
M2 x L2
Quantity
Screw Type
1
0
3-13
