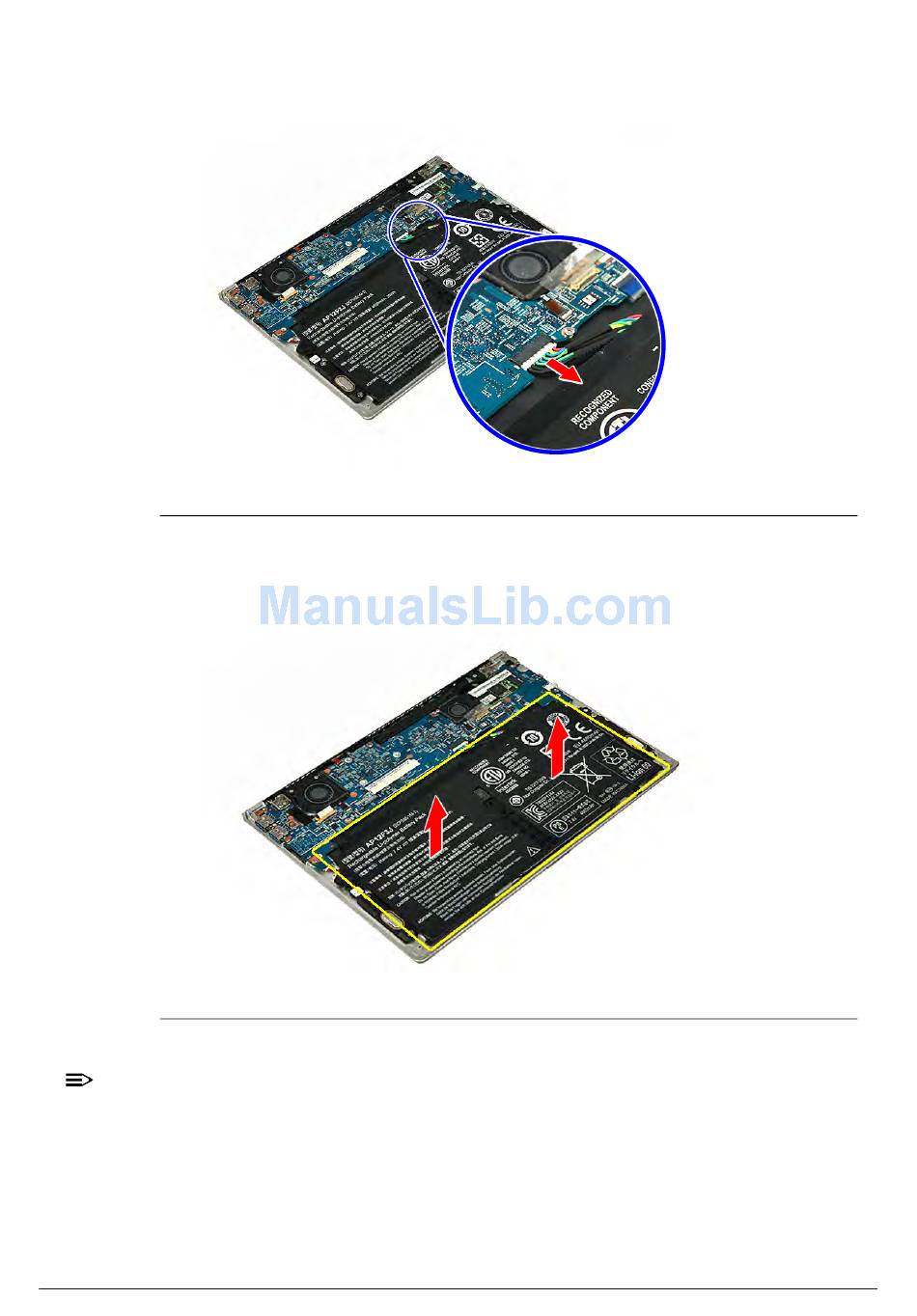

4. Disconnect the battery pack cable from the mainboard.
Figure 3-7. Battery Pack Cable
5. Detach the battery pack from the upper case assembly.
Figure 3-8. Battery Pack
NOTE:
NOTE:
The battery pack has been highlighted with the yellow border in
battery and follow local regulations for disposal.
Machine Maintenance
Figure
3-8. Remove the
3-9
