Using DMI Utility

The DMI (Desktop Management Interface) Tool generates a standard framework for
managing and tracking system components. The DMI utility supports DOS, Window 7 and
Windows 8 with WMI interface installation.

Using DMI Utility in DOS Mode

Perform the following steps to use the DMI Utility in DOS mode:
1. Create a DOS bootable USB HDD.
2. Copy the contents of the DMI\DOS folder to the HDD, then disconnect the HDD from the
computer.
3. Reboot the computer and press F2 during the boot sequence to enter the setup menu.
4. Select the Boot menu item and move the entry "USB HDD" to the first position.

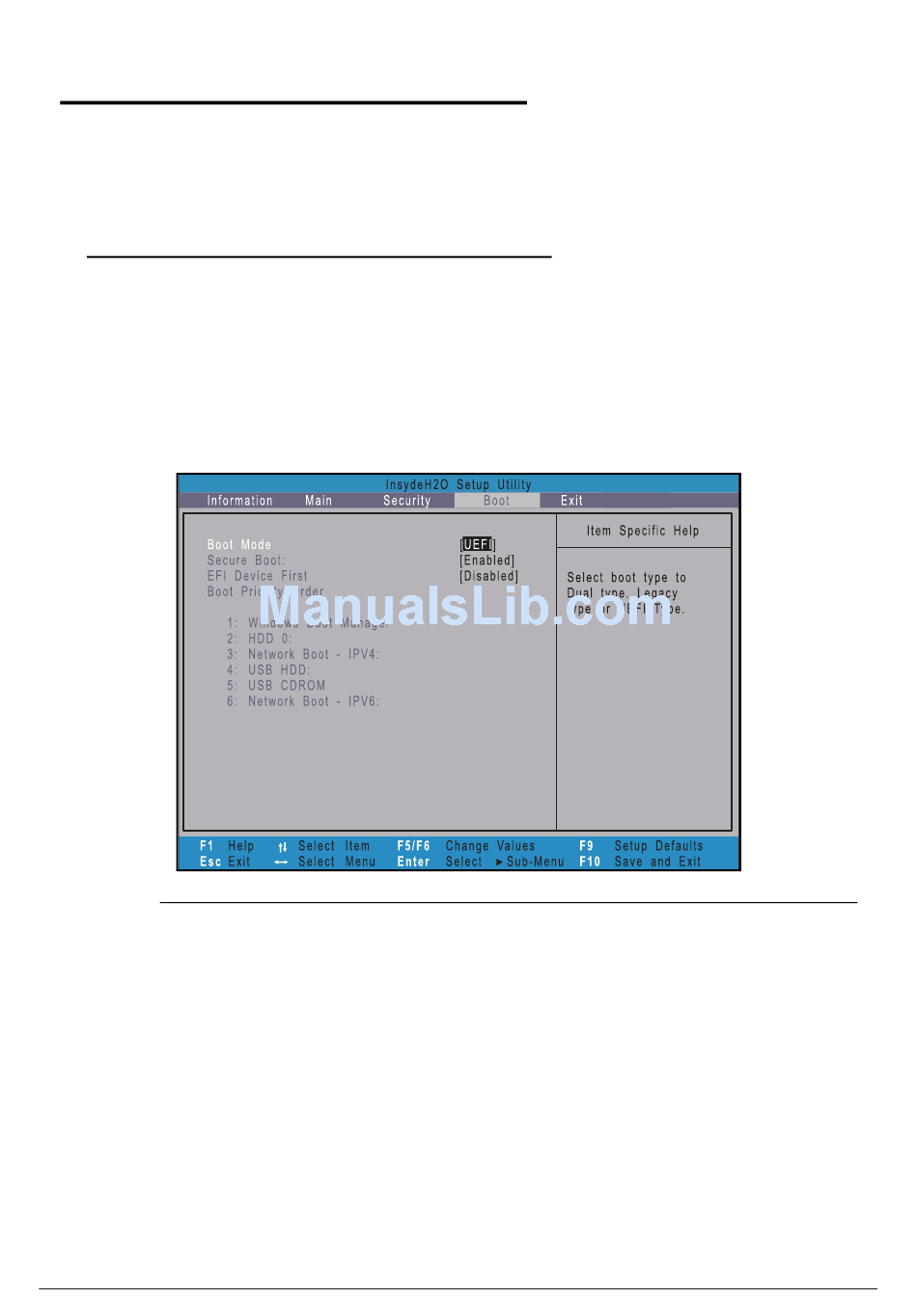

Figure 2-14. BIOS Boot Priority Order
