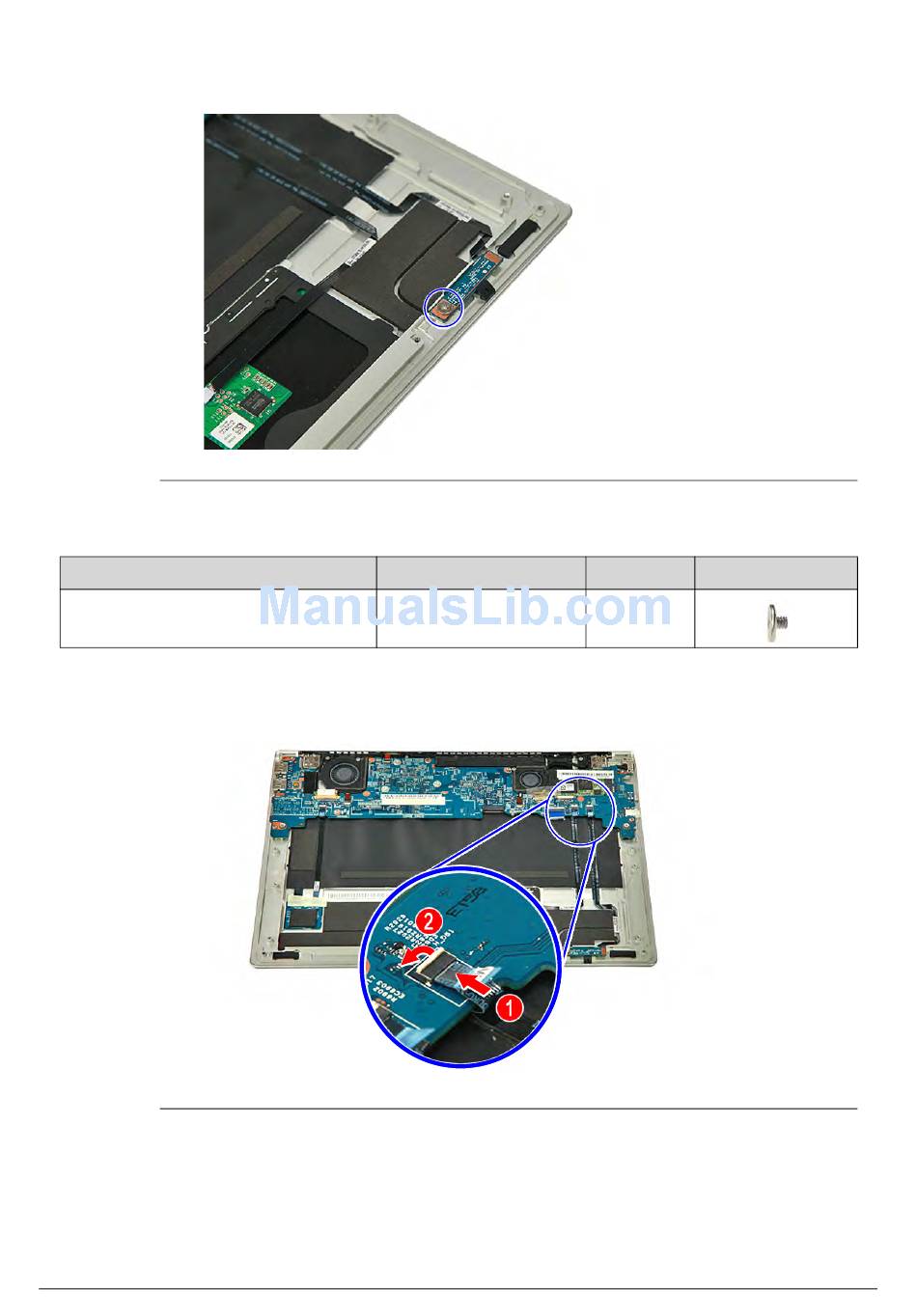

3. Secure the hold sensor board to the upper case assembly using one screw.
Figure 3-102. Hold Sensor Board Screw
Table 3-102. Screw
Step
Hold Sensor Board Reassembly
4. Connect the hold sensor cable to the mainboard (1), then press the connector latch (2) until it
locks into place.
Figure 3-103. Hold Sensor Cable
Machine Maintenance
Screw
M2 x L2
Quantity
Screw Type
1
3-63
