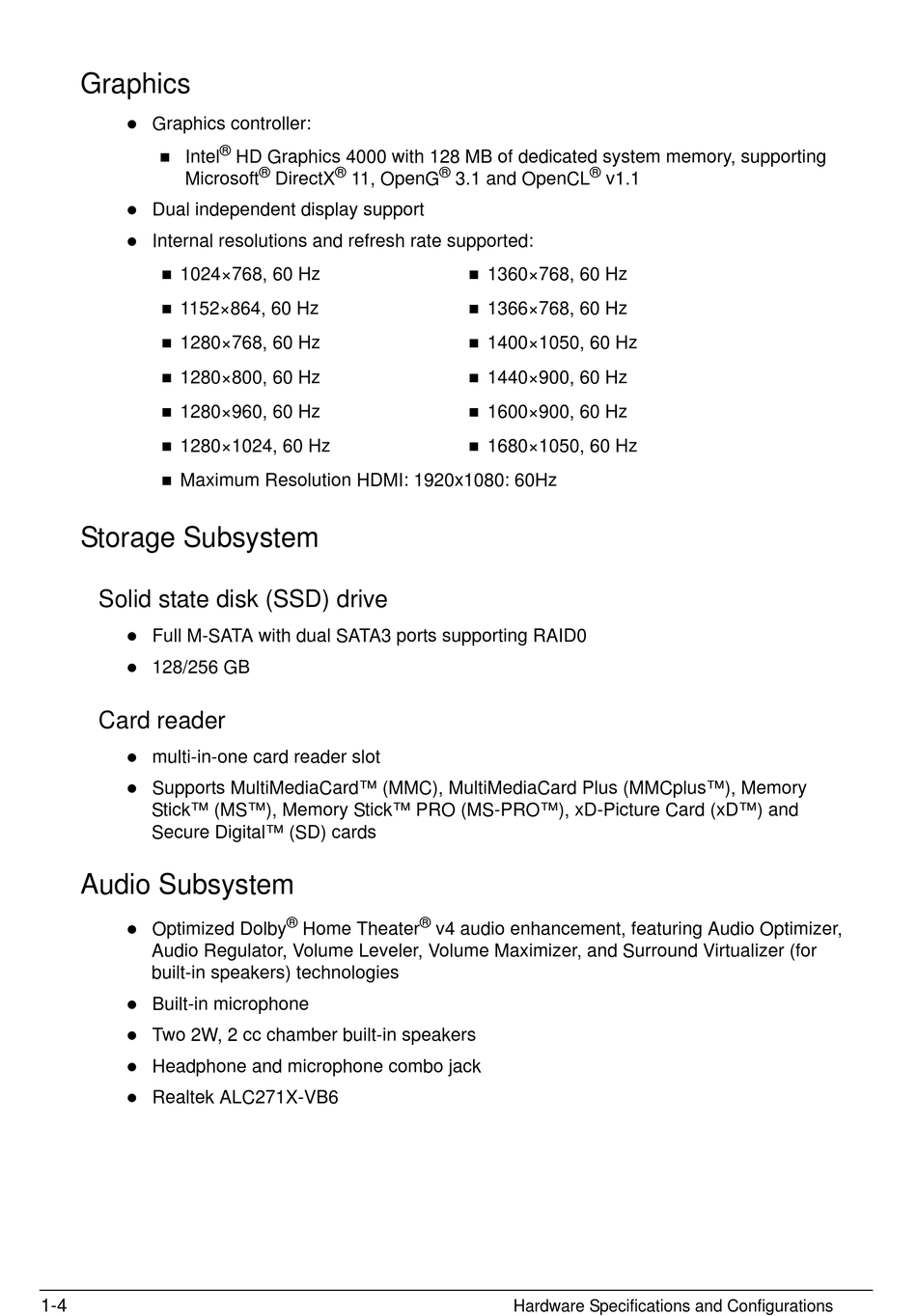

Graphics; Storage Subsystem; Audio Subsystem - Acer Aspire S7-391 Service Manual

Graphics

 Graphics controller:
 Intel
Microsoft
 Dual independent display support
 Internal resolutions and refresh rate supported:
 1024×768, 60 Hz
 1152×864, 60 Hz
 1280×768, 60 Hz
 1280×800, 60 Hz
 1280×960, 60 Hz
 1280×1024, 60 Hz
 Maximum Resolution HDMI: 1920x1080: 60Hz

Storage Subsystem

Solid state disk (SSD) drive
 Full M-SATA with dual SATA3 ports supporting RAID0
 128/256 GB
Card reader
 multi-in-one card reader slot
 Supports MultiMediaCard™ (MMC), MultiMediaCard Plus (MMCplus™), Memory
Stick™ (MS™), Memory Stick™ PRO (MS-PRO™), xD-Picture Card (xD™) and
Secure Digital™ (SD) cards

Audio Subsystem

 Optimized Dolby
Audio Regulator, Volume Leveler, Volume Maximizer, and Surround Virtualizer (for
built-in speakers) technologies
 Built-in microphone
 Two 2W, 2 cc chamber built-in speakers
 Headphone and microphone combo jack
 Realtek ALC271X-VB6
1-4
®
HD Graphics 4000 with 128 MB of dedicated system memory, supporting
® ®
DirectX 11, OpenG
®
Home Theater
® ®
3.1 and OpenCL
 1360×768, 60 Hz
 1366×768, 60 Hz
 1400×1050, 60 Hz
 1440×900, 60 Hz
 1600×900, 60 Hz
 1680×1050, 60 Hz
®
v4 audio enhancement, featuring Audio Optimizer,
Hardware Specifications and Configurations
v1.1
