Reinstalling the Big Fan

1. Place the big fan into the upper case assembly.

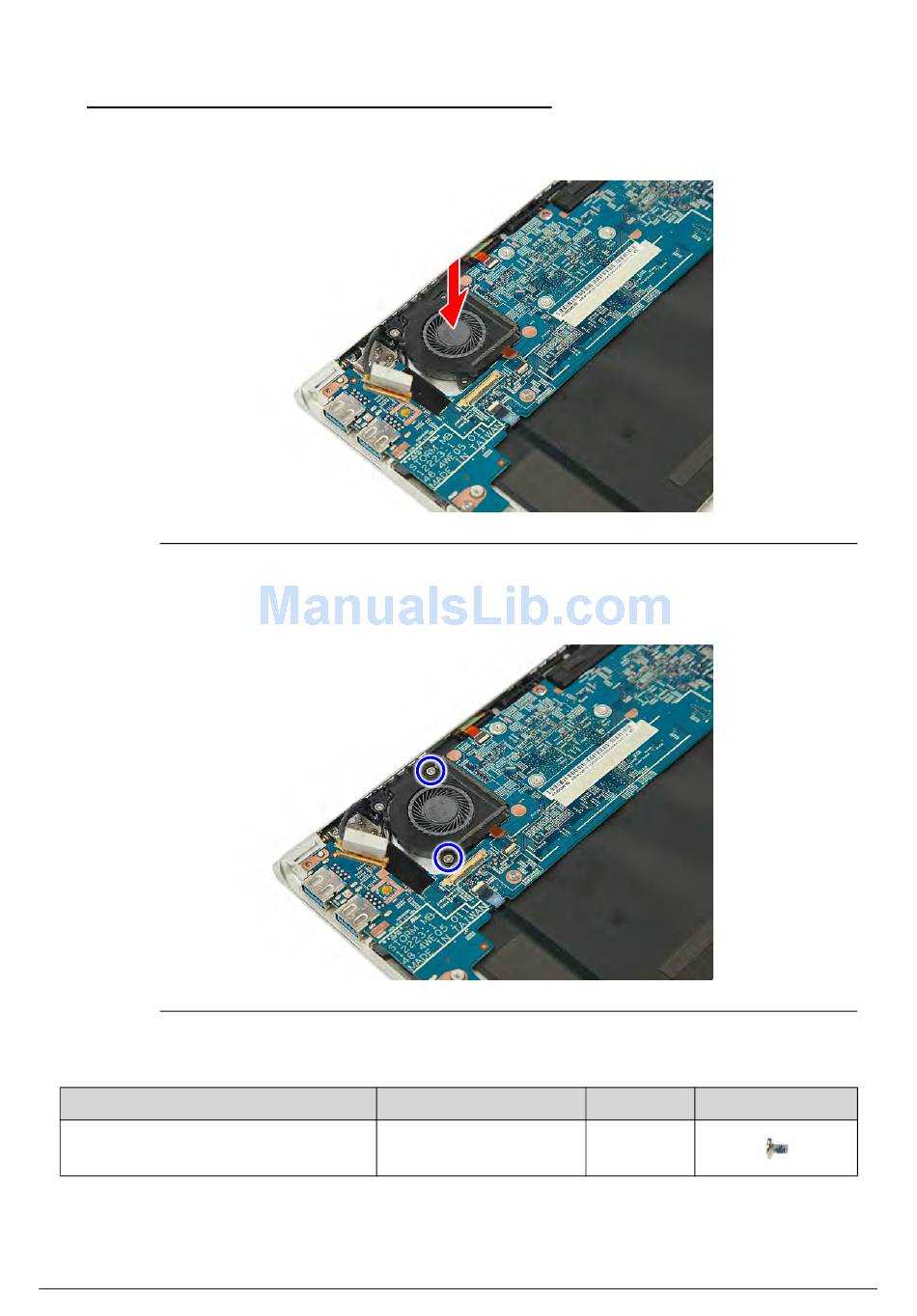

Figure 3-88. Big Fan
2. Secure the big fan to the upper case assembly using two screws.
Figure 3-89. Big Fan Screws
Table 3-89. Screws
Step
Big Fan Reassembly
Machine Maintenance
Screw
M2 x L3
Quantity Screw Type
2
