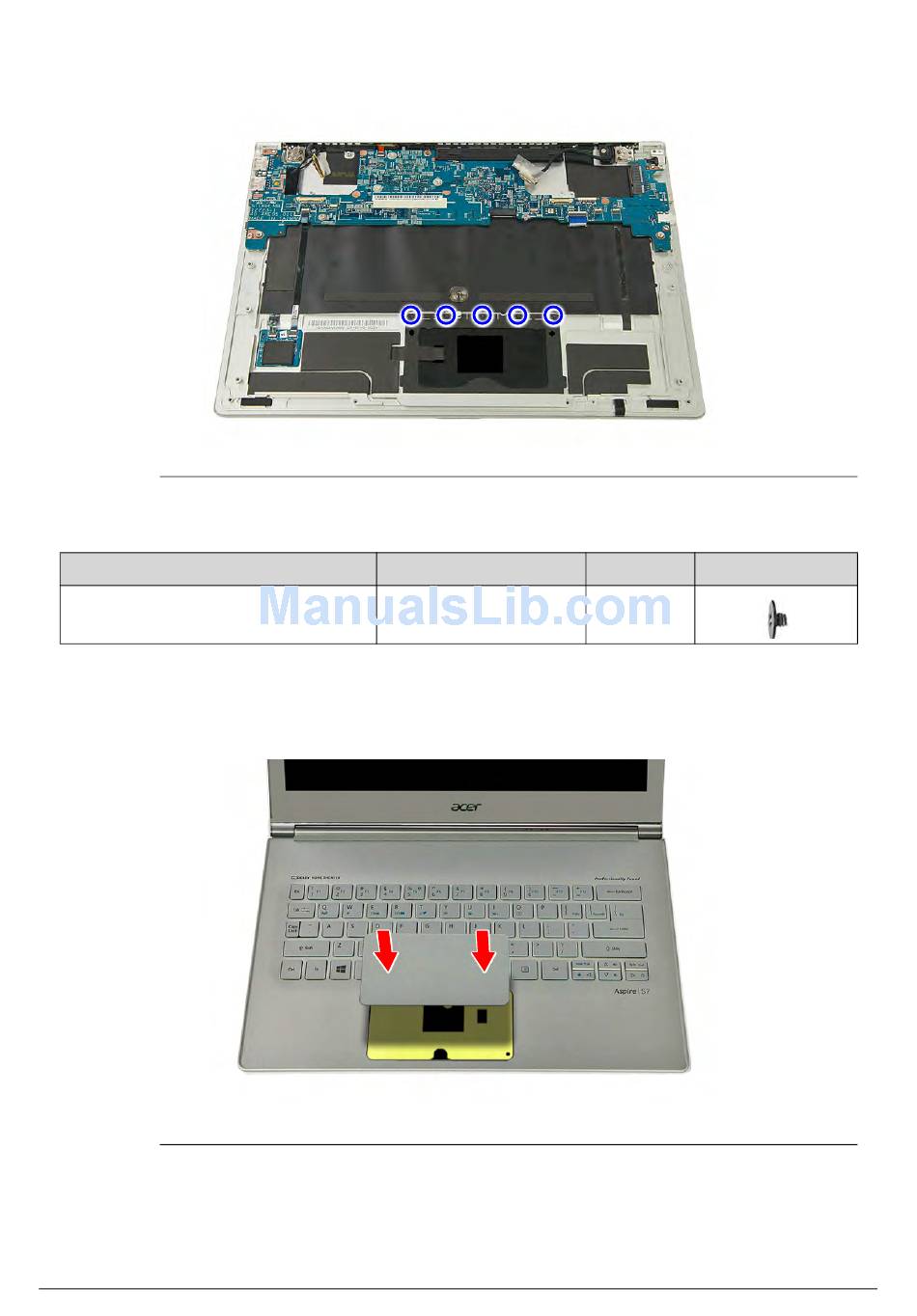

3. Secure the touchpad bracket to the upper case assembly using five screws.
Figure 3-83. Touchpad Bracket Screws
Table 3-83. Screws
Step
Touchpad Bracket Reassembly
4. Turn the computer over and open the LCD panel.
5. Insert the touchpad module into its slot in the upper case assembly.
Figure 3-84. Touchpad Module
3-52
Screw
M1.2 × L1
Quantity
Screw Type
5
Machine Maintenance
