Reinstalling the Mainboard
1. Connect the two antenna cables to the WLAN module.

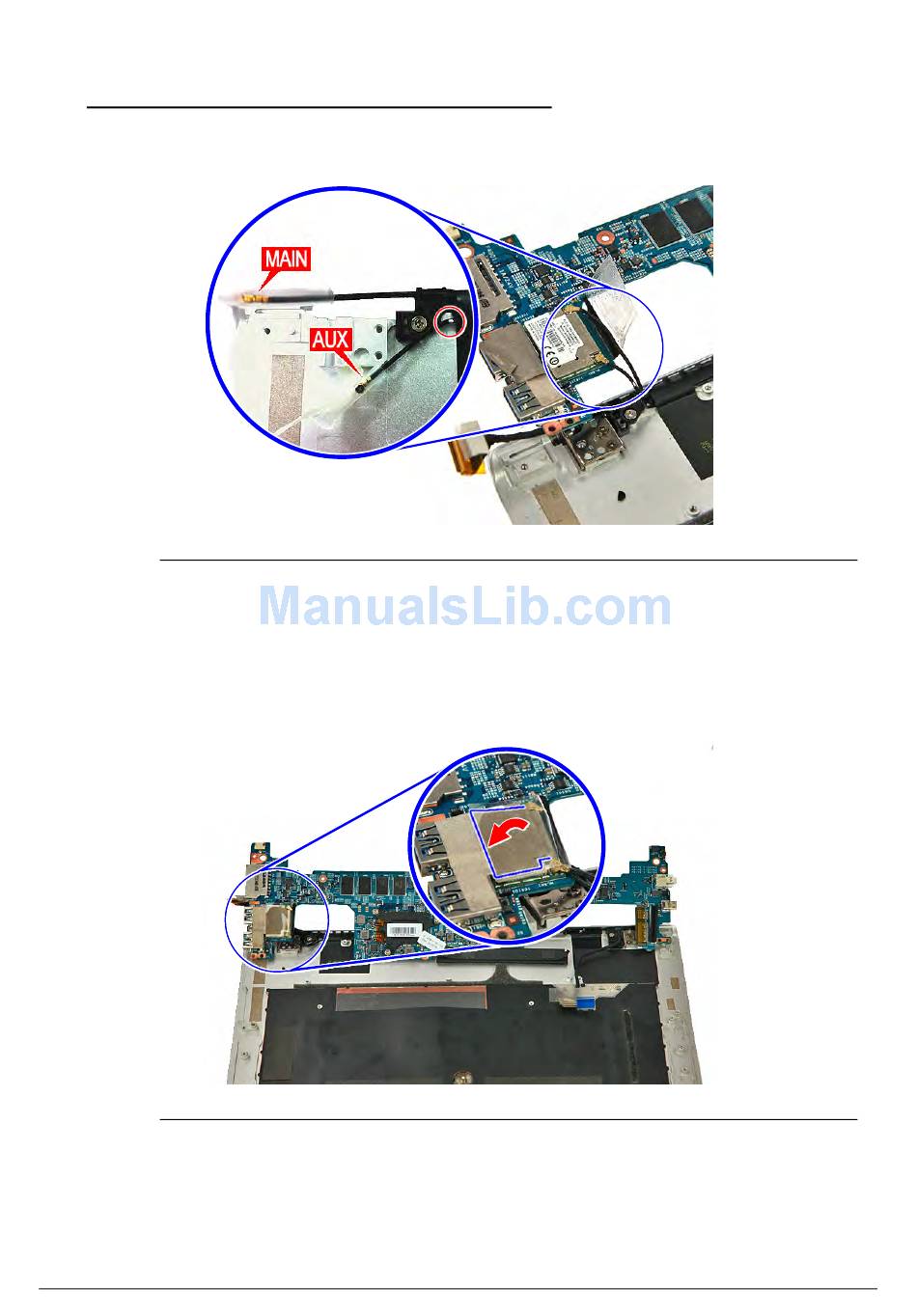

Figure 3-68. WLAN Module Antennas
+
IMPORTANT:
Note that the auxiliary cable have a white spot marking on it and should be
reconnected to the auxiliary connector.
2. Secure the WLAN antenna cables to the mainboard using adhesive tape.
Figure 3-69. WLAN Antenna Cables Adhesive Tape
