GE Appliances
JVM1640BB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven

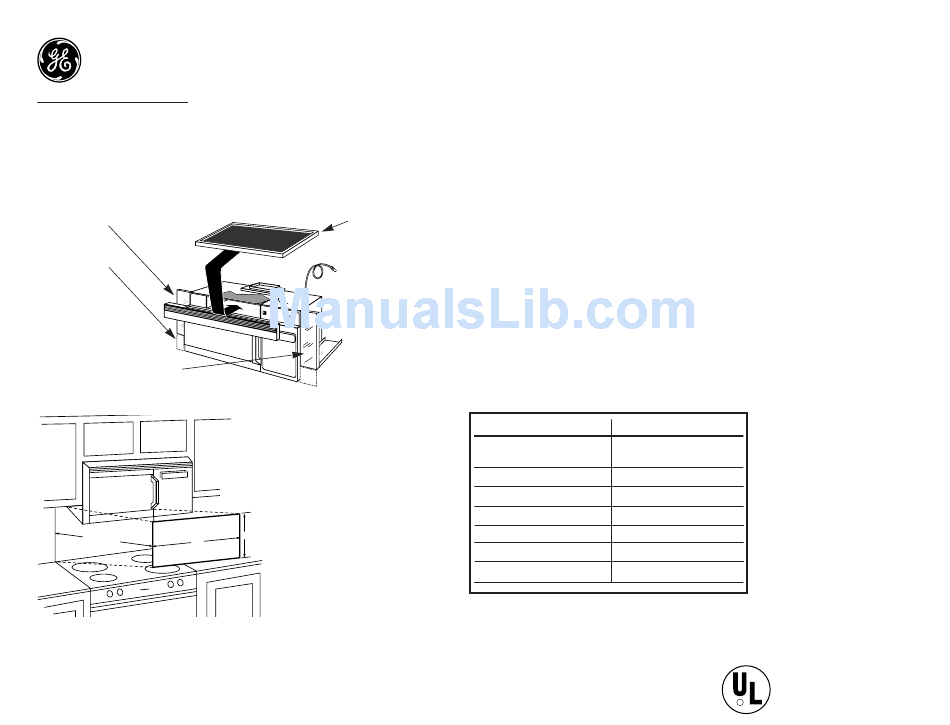

Optional Accessories (Available at additional cost)
12" Filler Panel Kits
JX40AL–Almond
JX41–Black
JX40WH–White
15" Filler Panel Kits
JX46BL–Black
JX46AL–Almond
JX46WH–White
When replacing a 36" or 42"
range hood, this kit fills in the
additional width to provide a
custom built-in appearance.
For installation between cabinets
only; not for end-of-cabinet installation.
Each kit contains two 3"-wide filler panels.
Two kits are needed for a 42" opening.
3/8"
depth
30
JX22SS–Stainless Steel Decorative Panel Kit
When replacing a Hi/Low range with a microwave/convection oven or
Spacemaker over a range model, this panel kit fills in the area between
the microwave and range left by the Hi/Low model.
Created 12/98
Filter Kits
JX81A–Recirculating
Charcoal Filter Kit
To be used when the
Spacemaker microwave
oven cannot be vented
to the outside.
19
HOOD EXHAUST DUCT
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not
use less than a 6" diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with
space between studs,or wall should be prepared at the time it is constructed by leaving enough space
between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4" x 10"
rectangular or 6" diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer than their actual physical size. When calculating the
total duct length, add the equivalent length of all transitions and adaptors plus the lengths of all straight
duct sections. The chart below shows the approximate feet of equivalent length of some typical ducts.
Duct
Equivalent Feet
A. Rectangular-To-round
Transition Adaptor
B. Wall Cap
C. 90° Elbow
D. 45° Elbow
E. 90° Elbow
F. 45° Elbow
G. Roof Cap
5ft.
40ft.
10ft.
5ft.
25ft.
5ft.
24ft.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile
™
or GE appliance questions, call
GE Answer Center
service, 800.626.2000.
®
Listed by
Underwriters
Laboratories
R
®
™
