GE Spacemaker JVM1640CJ Dimensions And Installation Information

GE Appliances

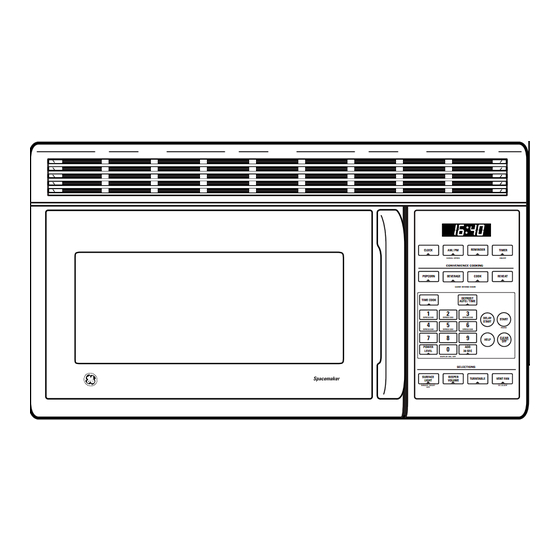

JVM1640AJ/BJ/CJ/SJ/WJ – GE Spacemaker
Dimensions (in inches)
21-3/4"
Door open
29-7/8
Specification Revised 1/04
340112
Over-the-Range Microwave Oven
®
66" MIN.
Mounting
30" MIN.
height
width required
from floor
12"
MIN.
15-5/32
16-3/16
15-5/8
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
Exhaust outlet
detailed, easy-to-follow installation instructions and convenient full-size
connects to
templates are packed with the Spacemaker microwave oven.
3-1/4" X 10" duct
Important Information: When installing the Spacemaker microwave oven
over a range, allow minimum of 2" from bottom of Spacemaker microwave
oven to top of range backguard to allow for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens are designed for
adaptation to the following three types of ventilation:
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE ® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
GE Profile or
® ™
service, 800.626.2000.
®
