Summary of Contents for TPI 720B User m

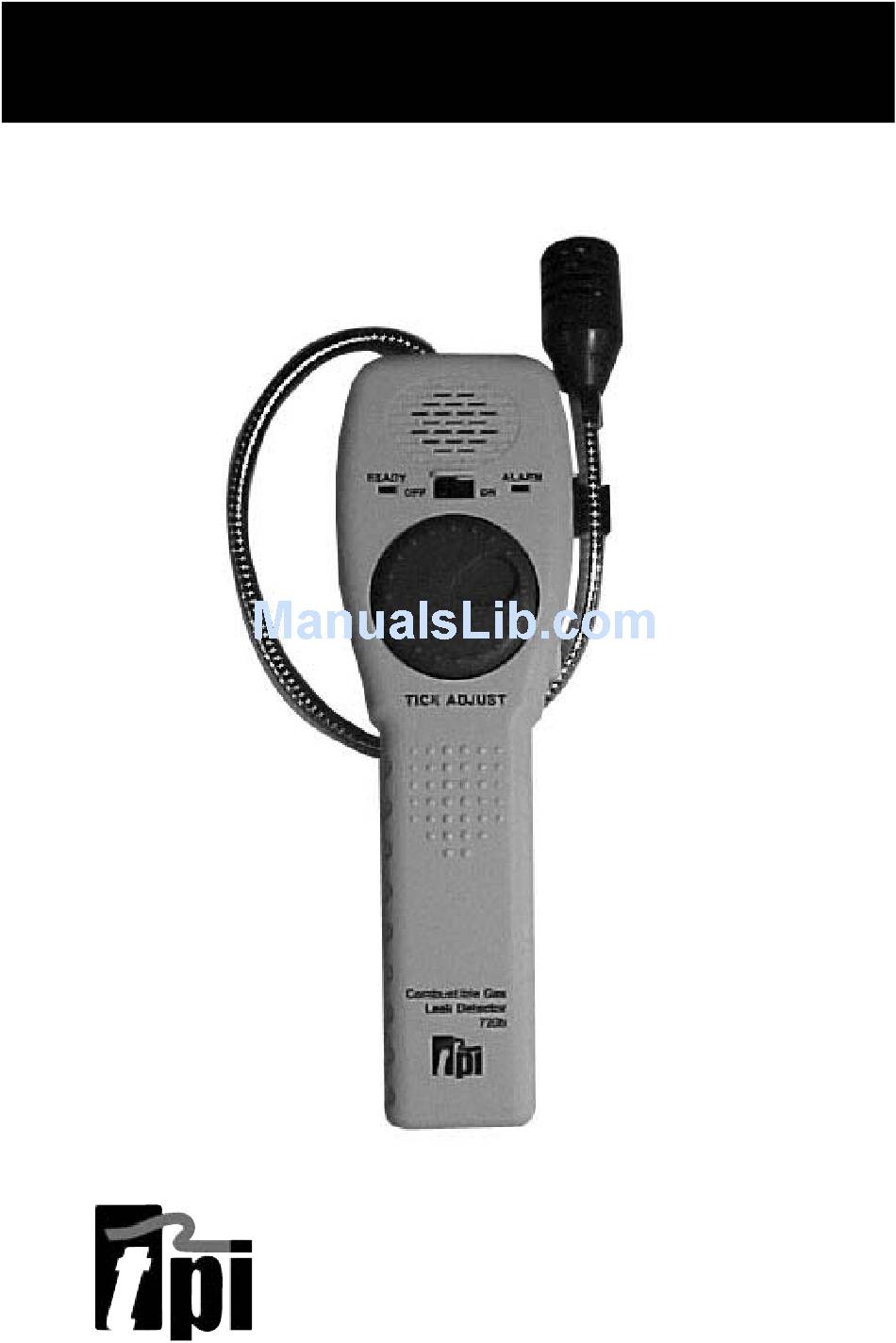

- Page 1 Combustible Gas Leak Detector 720b The Value Leader www.tpi-thevalueleader.com...
-
Page 2: Specifications

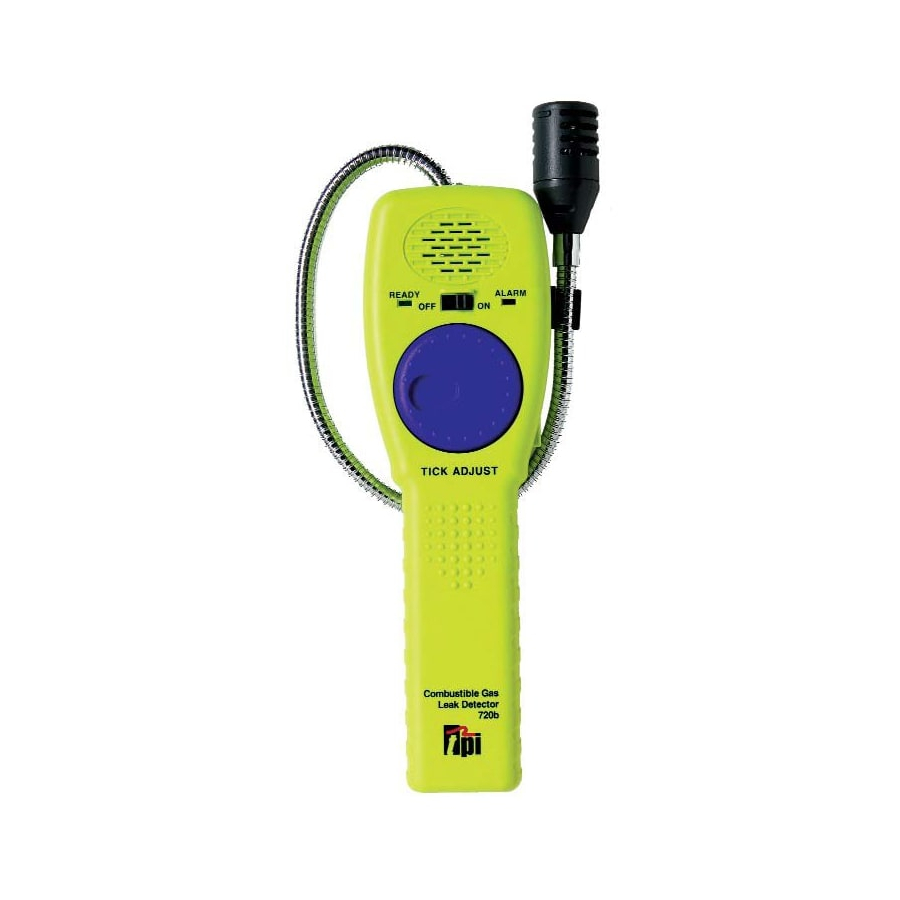

Contents • Specifications • Product Features • Standard Accessories • Optional Accessories • General Description • Operating Instructions • Battery Replacement • Operation Check • Sensor Replacement • Warranty Specifications Power Supply: 2 "C" Alkaline Batteries Sensor: Solid State Sensitivity: 10 ppm Methane Warm up: Approx 1 minute... - Page 3 On/Off switch Speaker Sensor Visual leak indicator Earphone Gooseneck jack Battery Compartment Standard Accessories Sensor: A739 Instruction Manual: 720b Instruction Manual Soft Pouch A700 Optional Accessories Hard Case A714 Earphone A710...
-
Page 4: General Description
General Description The 720b is an advanced state-of-the-art leak detector capable of detecting many combustible, noncombustible and toxic gases. The following is a partial list of gases that the 720b is sensitive to: Acetone, Alcohol, Ammonia, Steam, Carbon Monoxide*, Butane, Gasoline, Jet Fuel, Hydrogen Sulfide, Smoke, Industrial Solvents, Methane, Lacquer Thinner, Naphtha, Propane, Natural Gas. -
Page 5: Battery Replacement
wheel in a clockwise direction until a uniform ticking sound is heard. The RED light will flash at the same time the tick sounds. 4. Approach suspected leak areas with the sensor until the tick begins to increase. When the tick increases, do not move the sensor from the area, rotate the TICK ADJUST slightly counterclock- wise to slow the ticking and continue to... -
Page 6: Sensor Replacement
negative (-) end of the batteries in first. 3. Replace the battery cover by sliding the door into the slots provided in the handle and allow it to snap into place. 4. For best performance use quality alkaline batteries. Operation Check To verify the operation of the 720b simply turn the unit on and allow it to warm up for approxi- mately 1 minute. - Page 7 Your TPI 720b is warranted to be free from defects in materials and workmanship for a peri- od of one year after purchase (excluding sensor, calibration and batteries). If within the warranty period your instrument should become inopera- tive from such defects, the unit will be repaired or replaced at our option.
- Page 8 The Value Leader www.tpi-thevalueleader.com 750a Instruction Manual Test Products International, Inc. 9615 SW Allen Blvd Beaverton, OR 97005-4814 USA Copyright © 2001, Test Products International, Inc...
