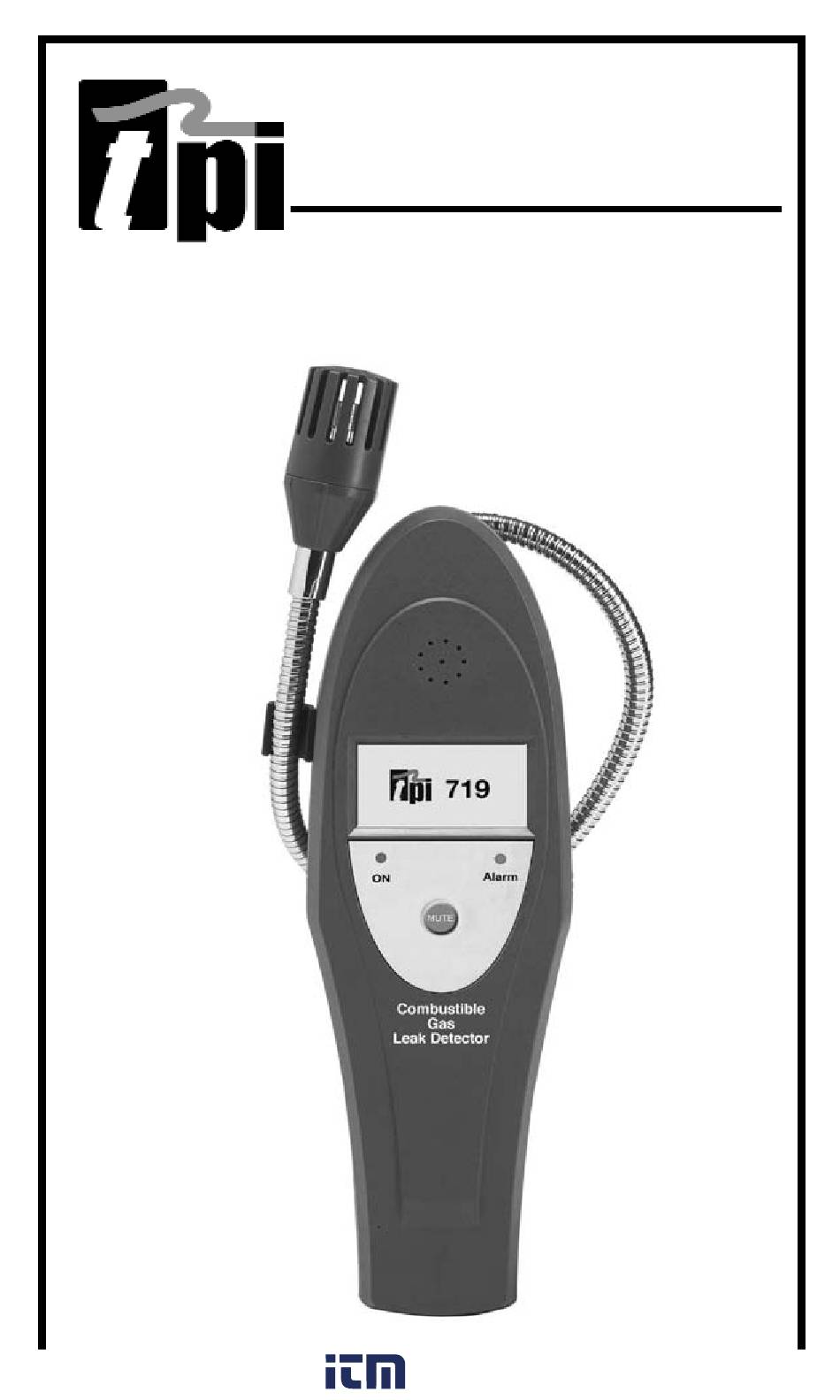

- Page 1 Combustible Gas Leak Detector Instruction Manual 561.8187 information@itm www. .com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS A. INTRODUCTION 1. Congratulations ......3 2. Product Description ....3 B. SAFETY CONSIDERATIONS ....4 C. TECHNICAL DATA 1. Features and Benefits....5 2. Product Applications ....5 3. Specifications......6 D. MEASUREMENT TECHNIQUES 1. Controls and Functions ....7 2. Step by Step Procedures: ..9 E. -
Page 3: Introduction
A. INTRODUCTION 1. Congratulations!! Thank you for purchasing TPI products. The 719 is easy to use and is built to last. It is backed by a 3 year limit- ed warranty. Please remember to complete and return your product warranty registration card. -
Page 4: Safety Considerations
GENERAL GUIDELINES ALWAYS • Allow the 719 to warm up prior to use. This typically takes 30 seconds but can take as long as 10 minutes depending on ambient temperature. • Turn your detector on in a “clean air” environment away from the test location. -
Page 5: Technical Data
Visual Alarm LED’s located on the front and Alarm in the sensor cage tip 2. Product Applications Perform the following tests and/or measurements with the 719 leak detector: • Locate combustible gas leaks in joints and fittings. 561.8187 information@itm www. -
Page 6: Specifications
Warm Up Time: 30 seconds typical (Extended warm up time of 5 to 10 minutes may be required depending on ambient temperature. For fastest warm up time do not store the 719 in cold tempera- tures) Audible Leak Indication: Adjustable tic rate via side thumb wheel Alarm Indication: Visual and audible Goose Neck: 16”... -
Page 7: Measurement Techniques
Push Buttons Silences the alarm. Thumb Controls speed of tick rate Wheel LED Indicators Green: Indicates the 719 is on. Red: Indicates batteries need to be replaced. Alarm Flashes with tick rate. Stays on steady when gas concentration is over the alarm point (1000ppm). - Page 8 D. MEASUREMENT TECHNIQUES 1. Controls and Functions (continued): Instrument Layout Sensor cage containing the sensor and visual alarm indicator Speaker Gooseneck On Indicator Alarm LED Earphone Jack Keypad Tick adjust wheel 561.8187 information@itm www. .com...
-
Page 9: Step By Step Procedures
D. MEASUREMENT TECHNIQUES 2. Step by Step Procedures: WARNING! Turn the 719 in a “clean air” environment away from the test area. Turn the 719 on by turning the thumbwheel counter clockwise. The 719 will begin sounding a maximum tick rate and the alarm will warble. -
Page 10: Trouble Shooting Guide
Depress the latch on the back housing and slide the cover down. Replace batteries (2 x “C” alkaline) and reattach the cover. Sensor Replacement: Turn the 719 off. Turn the sensor cage counter clockwise and remove it. Unplug the old sensor and discard. Replace sensor and sensor cap. Cleaning your 719: Use a mild detergent and slightly damp cloth to clean the surfaces of the 719. -
Page 11: G. Accessories
G. Accessories Replacement Sensor: A739 Replacement Sensor Cage: A709A Soft Pouch: A780 Earphone: A710 561.8187 information@itm www. .com...
