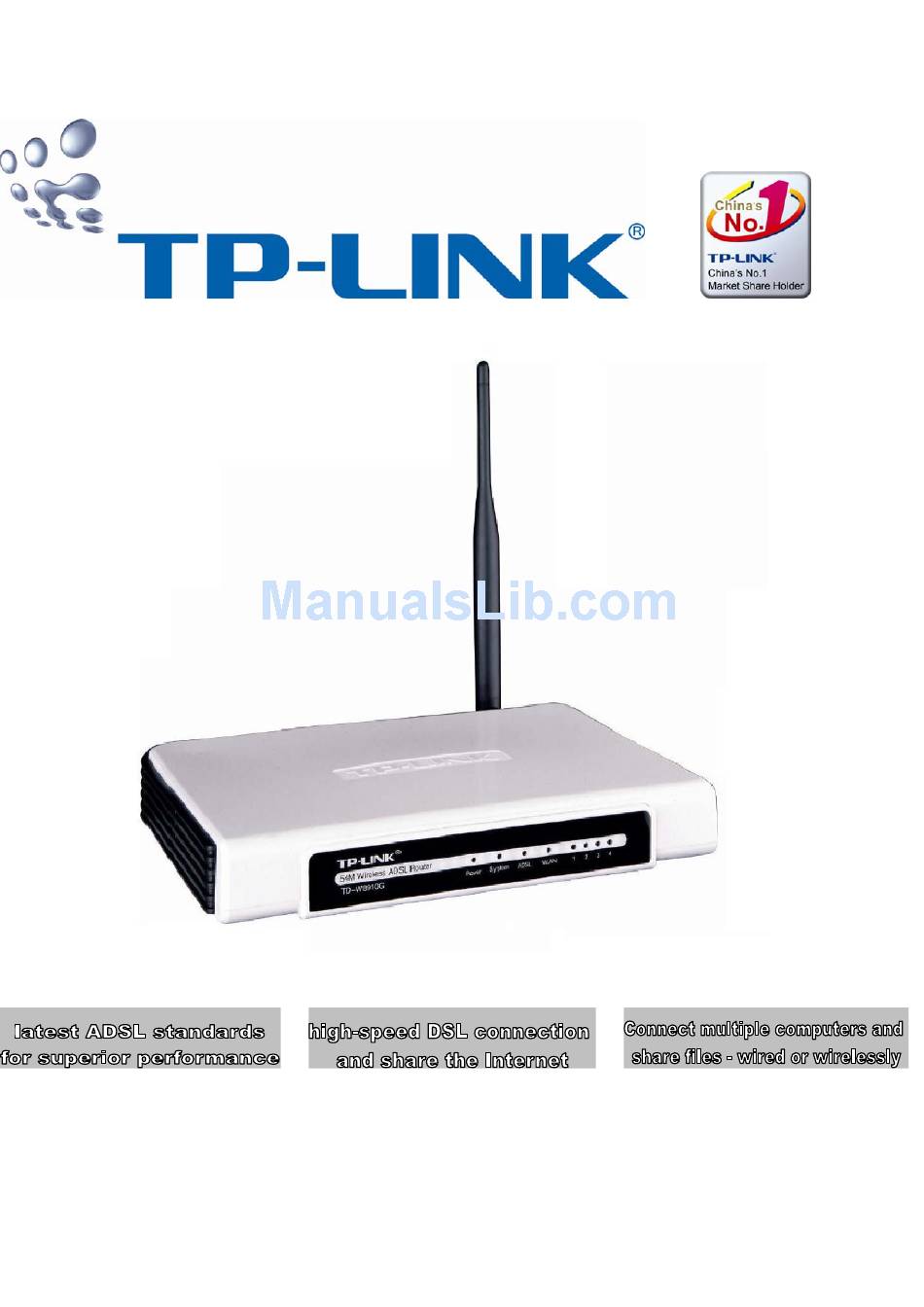

- Page 1 ADSL2/2+ MODEM WITH 54M WIRELESS ROUTER...
- Page 2 3-IN-1 DEVICE The TP-Link ADSL2/2+ Modem with 54M Wireless Router (TD-W8910G) is a 3-in-1 device that combines the function of a high-speed DSL modem, eXtended Range™ wireless G access point, and 4-port Ethernet router. The TD-W8910G supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream and 1Mbps upstream) and longer reach from your Internet Service Provider’s (ISP) Digital Subscriber Line...
-
Page 3: Technical Specifications
YOUR NETWORK SETUP TECHNICAL SPECIFICATIONS Specifications of TD-W8910G subitem DESCRIPTION SPECIFICATIONS PHYSICAL SPECIFICATIONS... - Page 4 WAN interface 1 RJ11 port LAN interface 4 ethernet port, support 802.3,802.3u Status indicators Power,System,ADSL,WLAN,LAN1~4 ELECTRICAL SPECIFICATIONS Output voltage 12VDC, 1.0A Power consumption ENVIRONMENT SPECIFICATIONS Operating temperature 0°C~40°C -40°C~70°C Storage temperature Relative humidity 10% ~ 90%, non condensation ADSL SPECIFICATIONS T1.143 I2,G.
- Page 5 IP Type of service(ToS), 802.1p Qulity of Service(QOS) IGMP IGMP snooping,IGMP multicast MANAGEMENT SPECIFICATIONS 7.1.1 Backup settings 7.1.2 Update settings 7.1.3 restore factory default settings 7.1.4 LAN configuration 7.1.5 Administrative tools ADSL configuration 7.1.6 ATM parameters configuration 7.1.7 Access control 7.1.8 Remote administration configuration 7.1.9...
-
Page 6: Minimum System Requirements
8.3.1 Network Address Port Translation (NAPT) 8.3.2 Network Address Traslation (NAT)(RFC 3022) 8.3.3 Domain Name Server Proxy (DNS) Addressing 8.3.4 Dynamic Domain Name Server (DDNS) Dynamic Host Configuration Protocol DHCP- Server (RFC 8.3.5 2131). UPnP,Virtual Server,Port Trigger,SIP (RFC 3261, 3262), H.323, NAT supporting VPN passthrough WIRELESS SPECIFICATIONS... - Page 7 Specifications are subject to change without notice. is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without...
