Dsp/bios real-time analysis (rta) and debugging applied to a video application

Table of Contents

SPRAA56

5.3

Interpreting the Benchmarks

There are a total of 20 statistics measured by the application: 16 application-specific STS

objects and 4 objects created automatically with the TSKs. Figure 7 shows a sample Statistics

View of all these measurements.

DSP/BIOS Real-Time Analysis (RTA) and Debugging Applied to a Video Application

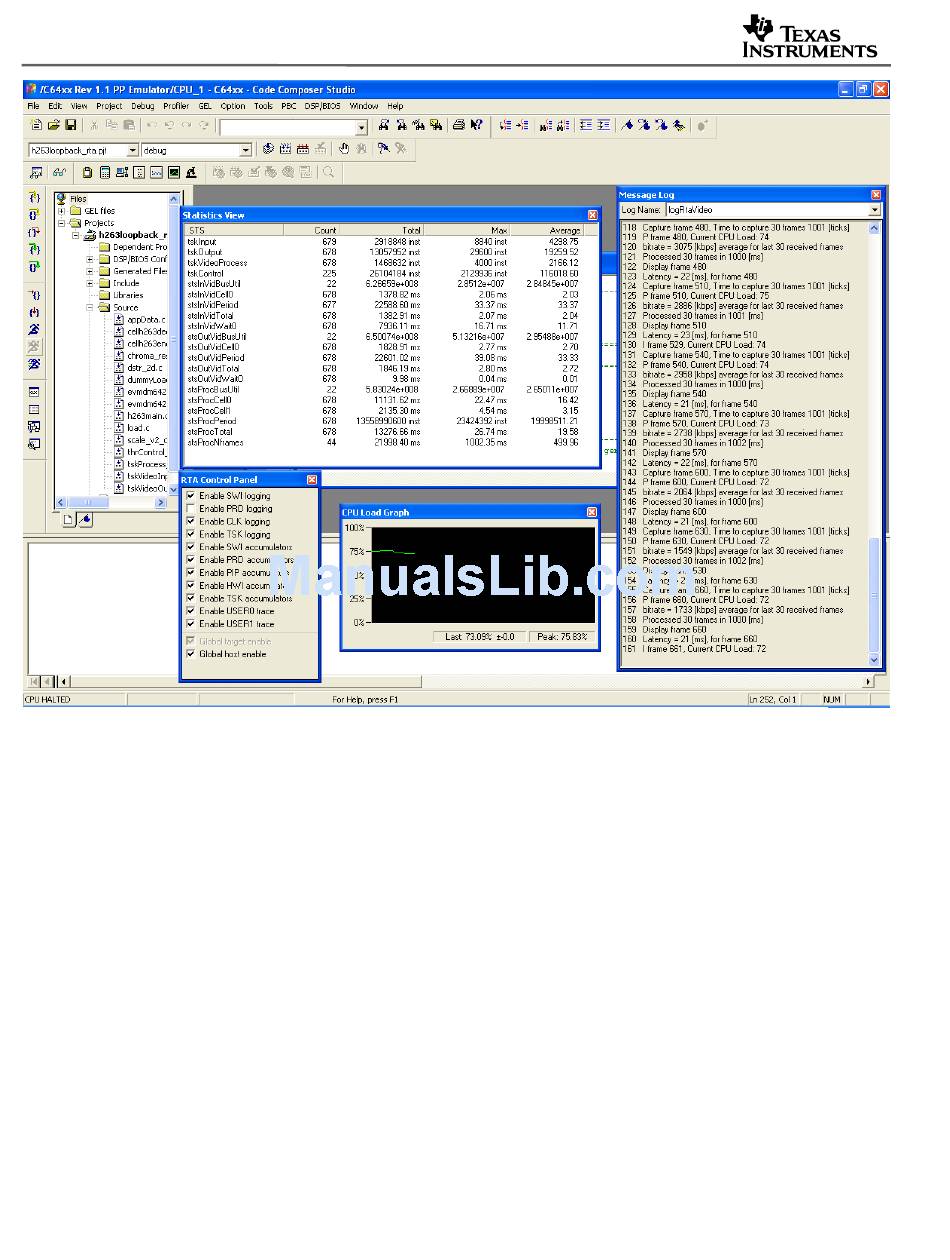

Figure 6.

Workspace Including RTA Windows
