Tascam IF-AE8 Owner's Manual
  1. Manuals
  2. Brands
  3. Tascam Manuals
  4. Accessories
  5. IF-AE8
  6. Owner's manual

Tascam IF-AE8 Owner's Manual

Digital audio interface unit
Hide thumbs Also See for IF-AE8:
Table of Contents

Advertisement

Quick Links

»

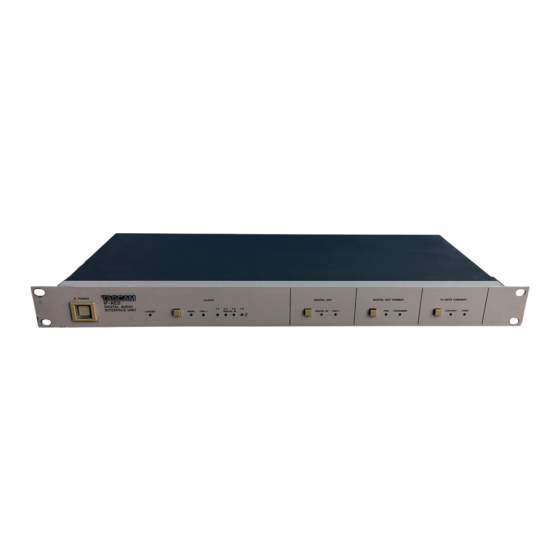

IF-AE8
Digital Audio Interface Unit
Ü
ÿ
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons..
The exclamation point within an equilateral triangle is intended to alert the user to the pres-
Ÿ
ence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
This appliance has a serial number
located on the rear panel. Please record
the model number and serial number
and retain them for your records.
Model number
Serial number
OWNER'S MANUAL
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
D00446000A

Advertisement

Table of Contents
loading

Related Manuals for Tascam IF-AE8

Summary of Contents for Tascam IF-AE8

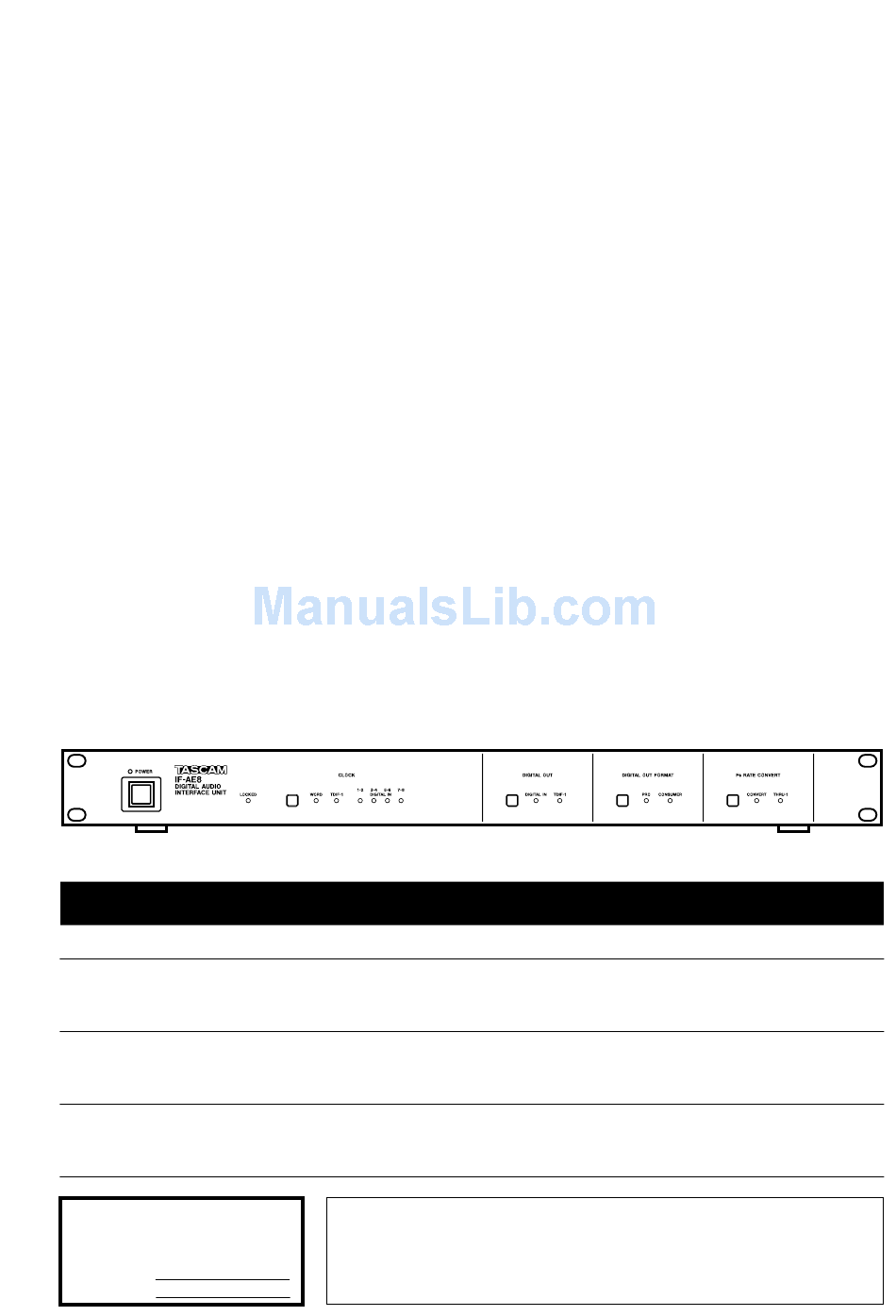

  • Page 1 » D00446000A IF-AE8 Digital Audio Interface Unit OWNER’S MANUAL CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT Ü REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ÿ The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 2: Important Safety Precautions

    Für Kunden in Europa ELECTRICIAN. Warnung Dies is eine Einrichtung, welche die Funk-Entstörung nach Klasse A besitzt. Diese Einrichtung kann im Wohnbereich Funkstörungen versursachen ; in diesem Fall kann vom Betrieber verlang werden, angemessene Maßnahmen durchzuführen und dafür aufzukommen. TASCAM IF-AE8...

  • Page 3: Important Safety Instructions

    (including amplifiers) supporting structure, grounding of the lead-in wire to an antenna discharge that produce heat. unit, size of grounding conductors, location of antenna-discharge unit, con- nection to grounding electrodes, and requirements for the grounding elec- trode. TASCAM IF-AE8...

  • Page 4: Front Panel

    IF-AE8 Digital Audio Converter The TASCAM IF-AE8 provides a convenient way of If sampling frequency conversion is carried out, the exchanging digital audio data between IF-AE8 will generate an independent clock signal, TDIF-1-equipped devices, such as DTRS recorders, based on the target frequency, so that other units may and AES/EBU devices.

  • Page 5: Rear Panel

    3/4, 5/6, 7/8) equipment connected with the wrong cables. These balanced connectors accept digital audio data If the use of cables other than TASCAM in AES3-1992 format. cables causes or results in damage, the war- ranty is voided.

  • Page 6: Specifications

    Australia) The word clock is therefore derived from this, and Power consumption used to resample the 48 kHz material from DAT 2, Supplied accessories Rack mounting kit and the Fs RATE CONVERT switch 6 is set to CONVERT. TASCAM IF-AE8...

  • Page 7: Dimensional Drawing

    D IN 5-6 D IN 3-4 LOCKED D IN 1-2 TDIF-1 Data Out WORD Emph Out LR CLK Out FS Code Out Digital Mixer FS Code In LR CLK In DTRS WORD Emph In Data In THRU (AUTO TERM) TASCAM IF-AE8...
  • Page 8 » I F-AE8 TEAC CORPORATION Phone: (0422) 52-5082 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan TEAC AMERICA, INC. Phone: (323) 726-0303 7733 Telegraph Road, Montebello, California 90640 TEAC CANADA LTD. Phone: 905-890-8008 Facsimile: 905-890-9888 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada TEAC MEXICO, S.A.
