Page 1: Instruction Manual

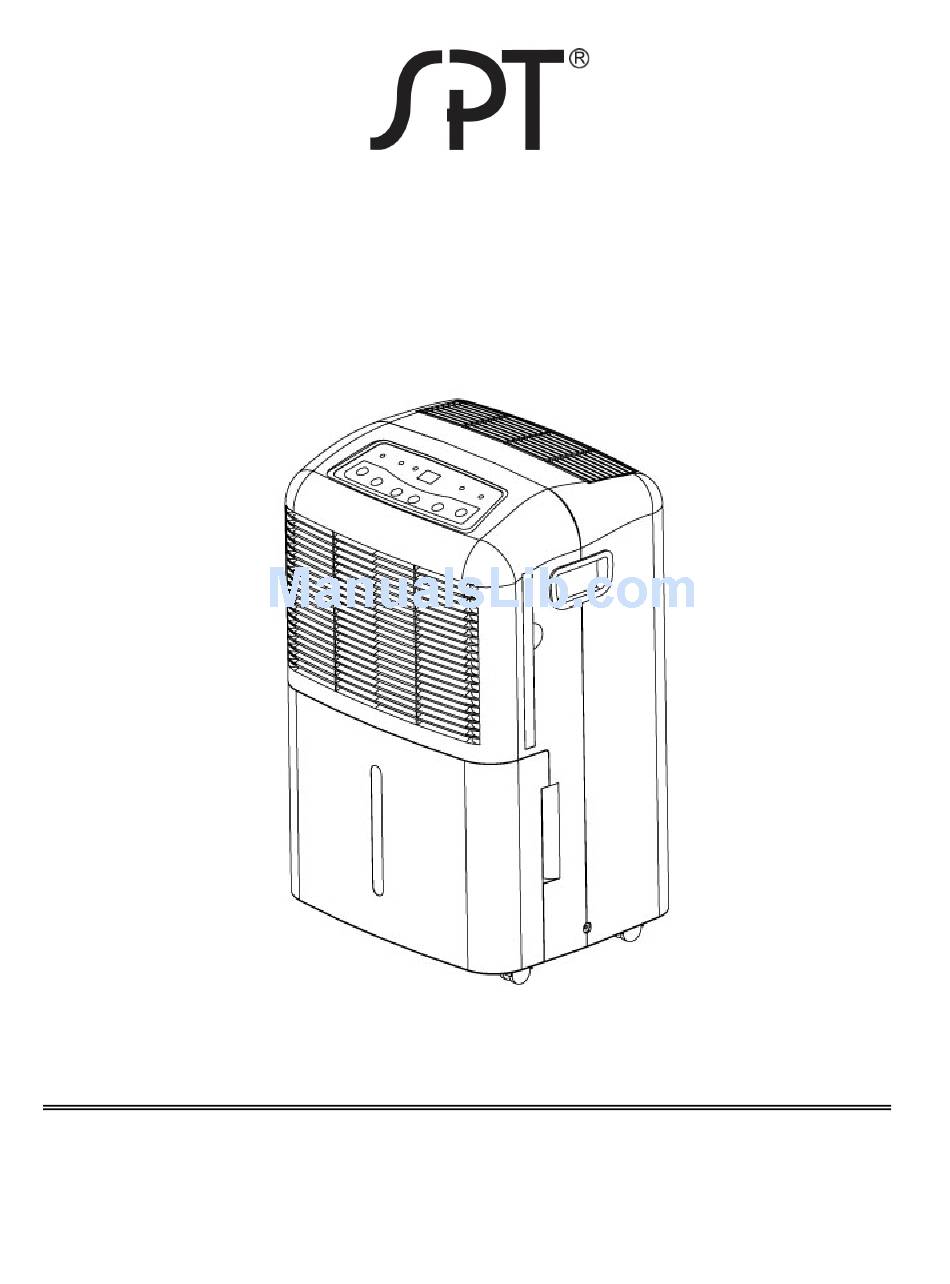

DEHUMIDIFIER MODELS: SD-30E / SD-40E / SD-60E INSTRUCTION MANUAL Please read these instructions thoroughly and keep it in a safe place for future reference. -
Page 2: Table Of Contents
CONTENTS FUNCTIONS …………………………………………………………………………………2 SAFETY NOTES ……………………………………………………………………………2 NAME OF PARTS ………………………………………………………………………….3 CONTROL PANEL …………………………………………………………………………3 TECHNICAL SPECIFICATIONS ………………………………………………………….4 INSTALLATION …………………………………………………………………………….4 OPERATING INSTRUCTIONS ……………………………………………………………5 OPERATION …………………………………………………………………………………5 MAINTENANCE …………………………………………………………………………….6 TROUBLE SHOOTING ……………………………………………………………………..8 YOUR GUARANTEE ……………………………………………………………………….9... -
Page 3: Functions
BEFORE YOU USE YOUR DEHUMIDIFIER, PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY. FUNCTIONS 1. Prevents mold growth on clothing, cupboards, doors and drawers. 2. Prevents condensation on ceiling, walls and windows. 3. Dehumidifying is effective on moisture sensitive items like musical instruments, cameras, computers, etc. -
Page 4: Name Of Parts
NAME OF PARTS CONTROL PANEL 1. POWER Button: Press once to turn unit ON, unit will begin operating in dehumidifying mode at original factory setting (60%RH). Press again to turn unit OFF. 2. CONTINUOUS Button: When unit is in operation, press this button to set CONTINUOUS DEHUMIDIFYING mode. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL SD-30E SD-40E SD-60E Dehumidifying Capacity 30 pints per day 40 pints per day 60 pints per day Power Supply 115V / 60Hz Current 4.5A 52.A 6.8A Power Consumption 490W 560W 780W 5 ~ 32C / 41 ~ 89F 13 ~ 35C / 55 ~ 95F Working Environment 25% RH and above... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Operating Conditions: This unit is designed to operate with a working environment between 41 ~ 90F. If the unit has been switched off, please wait 3 minutes before switching on again. If switched on immediately, allow 3 minutes for unit to resume correct operation. ... -
Page 7: Maintenance
Continuous Drainage: Remove the plastic cover located at the rear of the unit. Push the drain hose into the drain hole (see image below) Remove the water tank and securely attach the drain hose to the connector (see image below) ... - Page 8 Housing Use a soft, clean cloth to wipe the surface. Do not use water as this may cause an electrical fault or shock hazard. Water Tank Wash the tank using warm water and neutral detergent. Rinse and allow dry, replace when dry. Power Cord Wrap the cord and bundle it with a band.
-
Page 9: Trouble Shooting
Humidity sensor is off or short- Turn off unit and contact circuit Sunpentown. Temperature sensor is off or Turn off unit and contact short-circuit Sunpentown. If you still cannot solve the problem after trying the above, unplug unit and contact Sunpentown Int’l Inc. -
Page 10: Your Guarantee
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person. ...
