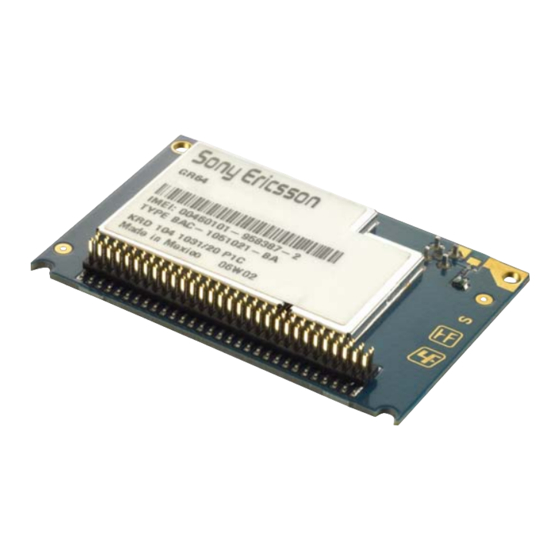

Sony Ericsson GR64 Integrator's Manual

Gsm/gprs modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GR64 GSM/GPRS Modem
Integrators Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sony Ericsson GR64

Summary of Contents for Sony Ericsson GR64

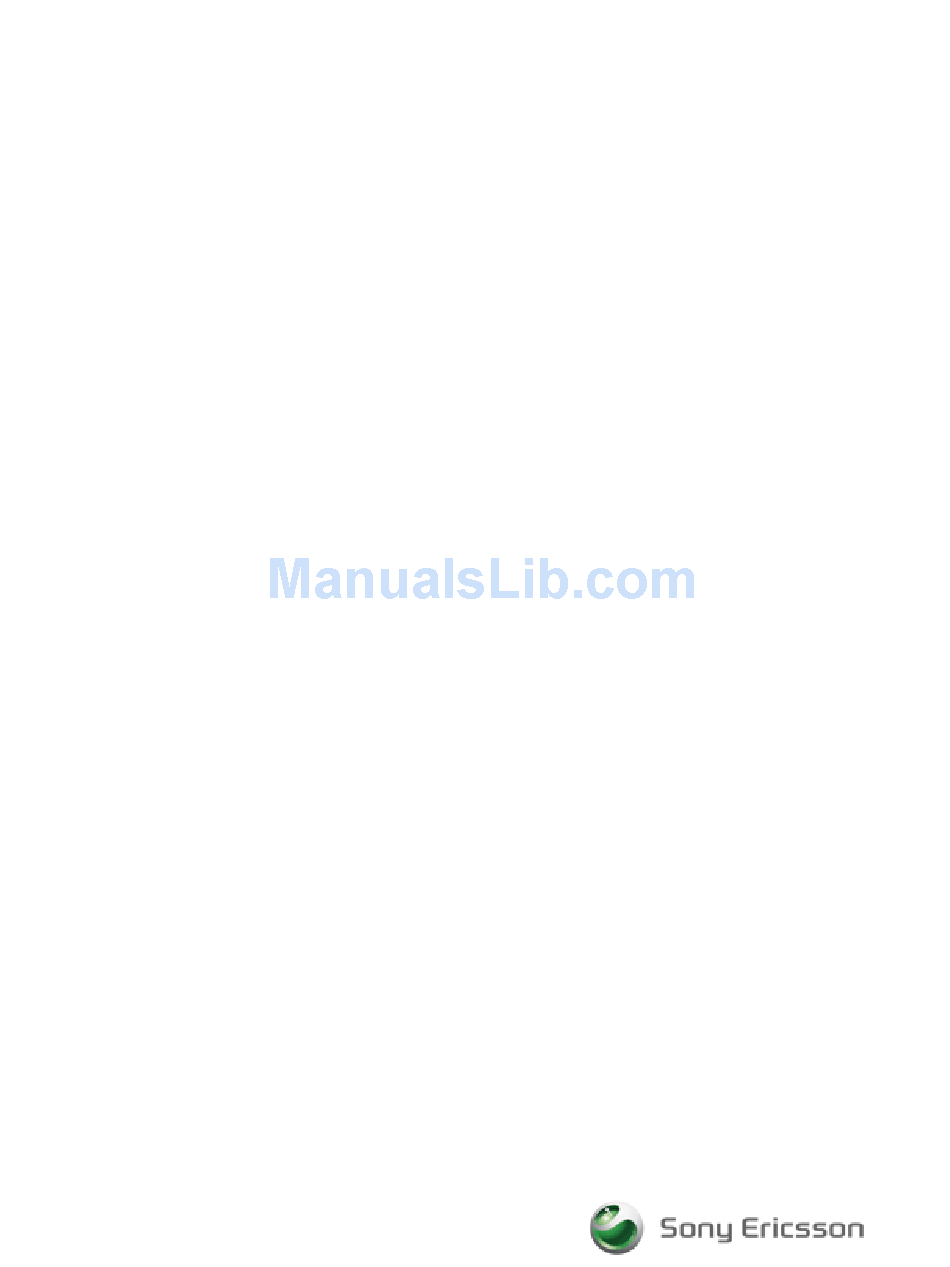

  • Page 1 GR64 GSM/GPRS Modem Integrators Manual...
  • Page 2 The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony Ericsson Mobile Communications International, is strictly prohibited.

  • Page 3: Table Of Contents

    Contents Overview ...................... 8 Introduction ................... 9 TARGET USERS......................9 PREREQUISITES ......................9 MANUAL STRUCTURE ....................9 NOTATION ......................10 ACKNOWLEDGEMENTS .................... 10 GR64 Wireless Modem................11 ABOUT THE GR64 ....................11 WIRELESS MODEMS IN A COMMUNICATION SYSTEM..........12 FEATURES ....................... 14 2.3.1 TYPES OF MOBILE STATION ................
  • Page 4 Abbreviations ..................22 Integrating the Wireless Modem ..............24 Mechanical Description................. 25 INTERFACE DESCRIPTION ..................25 PHYSICAL DIMENSIONS ................... 27 System Connector Interface ..............29 OVERVIEW ......................29 DEALING WITH UNUSED PINS................... 32 GENERAL ELECTRICAL AND LOGICAL CHARACTERISTICS.......... 34 5.3.1 LEVEL SHIFTER INTERFACES................
  • Page 5 5.10.1 PCM DATA FORMAT..................53 5.11 SERIAL DATA INTERFACES ................... 55 5.11.1 UART1......................56 5.11.2 SERIAL DATA SIGNALS (DTM1, DFM1)............... 56 5.11.2.1 SERIAL DATA FROM WIRELESS MODEM (DFM1) ..........57 5.11.2.2 SERIAL DATA TO WIRELESS MODEM (DTM1) ..........57 5.11.3 CONTROL SIGNALS (RTS1, CTS1, DTR1, DSR1, DCD1, RI)........
  • Page 6 Hints for Integrating the Wireless Modem..........75 SAFETY ADVICE AND PRECAUTIONS ................ 75 7.1.1 GENERAL ......................75 SIM CARD ....................... 76 ANTENNA ....................... 76 INSTALLATION OF THE WIRELESS MODEM..............77 7.4.1 WHERE TO INSTALL THE WIRELESS MODEM............77 7.4.1.1 ENVIRONMENTAL CONDITIONS..............77 7.4.1.2 SIGNAL STRENGTH ..................
  • Page 7 10.4 SIM CARD......................86 10.5 ENVIRONMENTAL SPECIFICATION ................ 87 Regulatory Notices ................89 Developers Kit.................... 90 Introduction to the Universal Developer’s Kit ........91 LZT 123 1834...

  • Page 8: Overview

    Overview LZT 123 1834...

  • Page 9: Introduction

    Introduction 1.1 Target Users The GR64 wireless modems are designed to be integrated into machine-to-machine or man-to-machine communications applications. They are intended to be used by manufacturers, system integrators, applications developers and developers of wireless communications equipment. 1.2 Prerequisites It is assumed that the person integrating the wireless modem into an application has a basic understanding of the following: •...

  • Page 10: Notation

    Part 3 – Developer’s Kit This section lists the contents of the Developer’s Kit and provides the information to setup and use the equipment. 1.4 Notation The following symbols and admonition notation are used to draw the readers attention to notable, or crucially-important information. Note Draws the readers attention to pertinent, useful or interesting information...

  • Page 11: Gr64 Wireless Modem

    GR64 Wireless Modem 2.1 About the GR64 The Sony Ericsson Gx64 family of devices are Quad Band GSM/GPRS wireless modems operating in the GSM 850/900/1800/1900 bands. These products belong to a new generation of Sony Ericsson wireless modems, and are intended to be used in machine-to-machine applications and man-to-machine applications.

  • Page 12: Wireless Modems In A Communication System

    2.2 Wireless modems in a Communication System Figure Figure 2.2-1 and 2.2-2 illustrate the main blocks of a wireless communication Figure system using the wireless modem. 2.2-1 shows the communication system Figure when the script is embedded on the wireless modem and 2.2-2 shows the communication system when a micro-controller is used.
  • Page 13 ATIS, TTA, and TTC. 3GPP specifies a set of AT commands for controlling the GSM element of the wireless modem; these commands are supplemented by Sony Ericsson specific commands. To find out how to work with AT commands, see the AT Commands Manual.

  • Page 14: Features

    2.3 Features The wireless modem performs a set of telecom services (TS) according to 3GPP release 99 and ITU-T. The functions of the wireless modem are implemented by issuing AT commands over a serial interface. 2.3.1 Types of Mobile Station The GR64 is a fully Quad Band capable GSM/GPRS mobile station with the characteristics shown in the table below.

  • Page 15: Voice Calls

    2.3.3 Voice Calls The wireless modem offers the capability of MO (mobile originated) and MT (mobile terminated) voice calls, as well as supporting emergency calls. Multi-party, call waiting and call divert features are available. Some of these features are network- operator specific.

  • Page 16: Gprs Multi-Slot Support

    2.3.5 GPRS Multi-Slot Support GSM Multi-slot classes supported by Gx64 devices Maximum slot allocation Multislot Allowable Max data rate Class Configuration Downlink Uplink Active 8-12Kbps Send 1 up; 4 down 32-48Kbps Receive 8-12Kbps Send 1 up; 4 down 32-48Kbps Receive 16-24Kbps Send 2 up;...

  • Page 17: Other Features

    2.3.8 Other Features The GR64 supports many other features, including: • 3GPP TS 27.010 multiplexing • GPS interoperability • SIM application tool kit, class 2 release 99 compliant • On board TCP/IP stack In addition, customers have the option of a GS64 software variant which adds embedded application functionality.

  • Page 18: Service And Support

    • Local contact details for customer support in your region • FAQs (frequently asked questions) Access to the Sony Ericsson extranet site requires a user account and password. Accounts can be arranged through your local account manager. The extranet web site address is: https://extranet.sonyericsson.com/collaborationarea/m2m/default.aspx...

  • Page 19: Precautions

    Do not use the product in an area where a potentially explosive atmosphere • exists. Do not place the product or install wireless equipment in the area above a • vehicle’s air bag. Do not attempt to disassemble the product; only Sony Ericsson authorized • personnel should perform servicing. LZT 123 1834...

  • Page 20: Radio Frequency (Rf) Exposure And Sar

    2.6.2 Radio Frequency (RF) exposure and SAR Your wireless modem device is a low-power radio transmitter and receiver (transceiver). When it is turned on, it emits low levels of radio frequency energy (also known as radio waves or radio frequency fields). Governments around the world have adopted comprehensive international safety guidelines, developed...
  • Page 21 The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the Sony Ericsson regional sales office. LZT 123 1834...

  • Page 22: Abbreviations

    Half Rate Integrated Development Environment Internet Protocol International Telecommunication Union – Telecommunications ITU-T (Standardization Sector) Low-Dropout M2mpower Sony Ericsson’s powerful support environment Mobile Equipment MMCX Micro Miniature Coax Mobile Originated Mobile Station Mobile Terminated Pulse Code Modulation Protocol Data Unit...
  • Page 23 Abbreviation Explanation Service Discovery Protocol Subscriber Identity Module Short Message Service Transport Control Protocol User Datagram Protocol LZT 123 1834...

  • Page 24: Integrating The Wireless Modem

    Integrating the Wireless Modem LZT 123 1834...

  • Page 25: Mechanical Description

    Mechanical Description 4.1 Interface Description The pictures below show the mechanical design of the wireless modem along with the positions of the different connectors and mounting holes. The wireless modem is protected with tin coated steel ASI 1008/1010 covers that meet the environmental and EMC requirements.
  • Page 26 Please note the following: • Mounting holes positioned at the corners make it possible to securely bolt the wireless modem into your application. • Keypad, display, microphone, speaker and battery are not part of the wireless modem. • For the GR64 variant without an integrated SIM holder, the SIM card is mounted in the user application, external to the wireless modem (this is also an option for the integrated SIM holder variant).

  • Page 27: Physical Dimensions

    4.2 Physical Dimensions Figure 4.2-1 Dimensions of the Wireless modem (Integrated SIM variant) LZT 123 1834...
  • Page 28 Figure 4.2-2 Dimensions of the Wireless modem (Legacy variant) Measurements are given in millimeters. See also Technical Data, in Section 10. LZT 123 1834...

  • Page 29: System Connector Interface

    System Connector Interface 5.1 Overview Electrical connections to the wireless modem (except the antenna), are made through the System Connector Interface. The system connector is a 60-pin, standard 0.05 in (1.27 mm) pitch device. The system connector allows both board-to-board and board-to-cable connections to be made.
  • Page 30 Table 5.1-1 Pin Assignments Name Direction Function Connection Required Input DC power Ground Input DC power Ground Input DC power Ground Input DC power Ground Input DC power Ground CHG_IN Input Battery charger power Ground ADIN4 Input ADC Input 4 GPIO5 In/Out General purpose IO...
  • Page 31 Name Direction Function Connection Required TX_ON Output Transmit indication Output Ring Indicator GPIO8 In/Out General purpose IO DTR1 Input Data Terminal Ready (UART1) GPIO10 In/Out General purpose IO DCD1 Output Data Carrier Detect (UART1) GPIO11 In/Out General purpose IO RTS1 Input Ready To Send (UART1) GPIO9...

  • Page 32: Dealing With Unused Pins

    5.2 Dealing with Unused pins Integrators applications may connect all of the GR64 signals pins, or just those necessary for minimal operation, or most commonly some other permutation. GR64 signal pins are not connected to the host application you should terminate them in the following manner.
  • Page 33 Name Unused pin termination DTM3 Connect to VREF DFM3 Leave Open USBDP Leave Open USBDN Leave Open SSPDTM Connect to VREF SSPDFM Leave Open VUSB Leave Open ALARM Leave Open SSPFS Leave Open SSPCLK Leave Open MICIP Connect to AREF MICIN Connect to AREF EARP...

  • Page 34: General Electrical And Logical Characteristics

    5.3 General Electrical and Logical Characteristics The core digital IO is based upon 1.8V technology in the baseband chipset. All external IO signals undergo bi-directional level shifting on the physical module to provide flexibility to users of different voltage technology. An internal core IO regulator is used as a reference for the module-side logic, whilst the application (host-side) reference is fed by VREF in one of two implementations.
  • Page 35 Figure 5.3-1 Common Level Shifter Circuit (VREF as an Output) The output impedance of the Maxim chip is 6kohm, so you must ensure that your application impedance to ground or supply is high enough to allow for full voltage swing. A minimum application impedance of 56kohm should be assumed. Similarly, where a GPIO is used as an input, your application driver output impedance must not exceed 680 ohm.

  • Page 36: I2C Level Shifter Interface

    5.3.1.2 I2C Level Shifter Interface Because of the nature of the I C interface signals, SDA (data) & SCL (clock), they utilize a different type of level-shifting technology to that of the ‘common’ IO. The C level shifter IC uses an open drain construction with no direction pin, ideally suited to bi-directional low voltage (such as the GR64 1.8 V processor) I C port translation to the normal 3.3 V or 5.0 V I...

  • Page 37: Grounds

    5.4 Grounds Name Direction Function Ground Ground Ground Ground Ground Ground AREF Analogue reference There are two ground connections in the wireless modem, AREF (analogue ground) and GND (digital ground). Pin assignments are shown in the table above. AREF and GND are connected at a single point inside the wireless modem, however they must not be joined together in the user application.

  • Page 38: Regulated Power Supply Input (Vcc)

    5.5 Regulated Power Supply Input (VCC) Name Direction Function Input DC power Input DC power Input DC power Input DC power Input DC power Power is supplied to the wireless modem VCC pins, from an external source. User application circuitry should connect all VCC pins together in to carry the current drawn by the wireless modem.

  • Page 39: Voltage Reference (Vref)

    The module has approximately 40µF of internal capacitance across the VCC pins. During initial power-up the host power supply will have to charge this capacitance to the operating voltage. This initial in-rush CAUTION current may exceed the module’s normal peak current, sometimes greater than an order of magnitude higher (depending upon the power supply design) for a short duration (generally a few microseconds).
  • Page 40 VREF Input Parameter Unit VREF input voltage VREF load current µA Figure 5.6-1 Level shifter arrangement LZT 123 1834...

  • Page 41: Battery Charging Input (Chg_In)

    5.7 Battery Charging Input (CHG_IN) Name Direction Function CHG_IN Input Battery charger power For battery powered applications, the GR64 provides a charge input (CHG_IN) pin to aid and support battery charging. A typical application would power the wireless modem directly from a battery source connected to VCC (pins 1, 3, 5, 7, 9) then provide a dc power source to the CHG_IN connection (pin 11).

  • Page 42: Charging Process

    CHG_IN CHG_IN 3.6V 3.6V 3.6V 3.6V 50mA 50mA 50mA 50mA CHARGE FET CHARGE FET MAX CURRENT MAX CURRENT DETECTION DETECTION SINGLE SINGLE REF1 REF1 REF1 CELL Li-ION CELL Li-ION VOLTAGE VOLTAGE TIMER TIMER BATTERY BATTERY BATTERY BATTERY TIMER TIMER SOURCE SOURCE CHARGER CHARGER...

  • Page 43: Series Diode

    As a safety precaution, the battery cell voltage must be at least 2.5 V before fast- charge is allowed to take place. If the battery cell voltage is less than 2.5 V, it is considered either deeply discharged or shorted. To protect a Li-ion cell from the damage that may occur if it is fast-charged from this state, a 3.6 V trickle-charge source is used to safely condition the battery cell.
  • Page 44 Lithium ion batteries are environmentally friendly, inasmuch as they do not contain any heavy metal pollution substances such as cadmium, lead, or mercury. There are many manufacturers of Li-Ion batteries worldwide. Sony Ericsson make no recommendations with regard to specific vendors, but here are some considerations...
  • Page 45 To determine battery life, on a full charge, the following rule of thumb can be applied: Standby time = Battery Capacity (mAh) / Idle current (mA) Call time (voice or data) = Battery Capacity (mAh) / Call current (mA) Example 1 – Standby time: A 600mAh rated Li-Ion battery, from fully charged (around 4.2V) to the module cut- off point (3.2V) will provide around 95% of its total charge capacity.
  • Page 46 Example 3 – Typical Operation: A module performing periodic network data transfers and communicating intervallic status information to its host would spend its non-active periods in sleep mode. If the module spends 30 mins each day on call (320mA), 30 second each hour performing housekeeping, monitoring and status tasks (110mA), and sleeps (2.1mA) during the intervening periods, an 1800mAh rated Li-Ion battery fully charged would typically provide...

  • Page 47: Powering The Module On And Off (On/Off)

    5.8 Powering the Module ON and OFF (ON/OFF) Name Direction Function ON/OFF Input Device on/off control 5.8.1 Turning the Module On Figure 5.8-1 Power On timing The GR64 power ON sequence is shown above. The significant signals are VCC, ON/OFF and VREF, shown by solid lines. The other signals (in dashed lines) are internal to the module and are shown for reference purposes only.

  • Page 48: Turning The Module Off

    VREF exceeds it’s reset threshold approx 500µs later, then 250ms afterwards RESET (denoted by t ) the line goes high. The microprocessor can latch the power on (PWR_KEEP) RESET state by setting the power keep high after the goes high and before the power on (ON/OFF) signal is released.
  • Page 49 the RTC can continue to operate even though VCC is removed, provided that a sufficiently charged backup device is connected to the VRTC. Refer to section 5.18.1 for details. NOTE The relevant characteristics of the ON/OFF Power control interface are shown in the table below.

  • Page 50: Analogue Audio

    5.9 Analogue Audio Name Direction Function MICIP Input Microphone input positive MICIN Input Microphone input negative EARP Output Earpiece output positive EARN Output Earpiece output negative AUXO Output Auxiliary audio from module to host AUXI Input Auxiliary audio to module from host AREF Analogue reference The analogue audio signals comprise of two audio inputs to the module, and two...

  • Page 51: Auxiliary Audio To Mobile Station (Auxi)

    There five factory-set audio profiles as follows: • Portable hands free Low-level is recommended. • Handset Low-level is recommended. • Car kit Low-level is recommended. • Speakerphone High-level is recommended. • Headset Low-level or High-level can be used with headset, depending on requirements. Portable hands free is the factory-set default profile.

  • Page 52: Auxiliary Audio From Mobile Station (Auxo)

    5.9.2 Auxiliary Audio from Mobile Station (AUXO) AUXO is a single-ended auxiliary analogue audio output from the wireless modem and may be used to drive a speaker or an earpiece. The interface has an internal 100nF coupling capacitor; a load of 10kohm will provide a near full-scale output capability between 300 to 4300 Hz.

  • Page 53: Speaker Signals (Earp, Earn)

    Parameter Conditions Unit max input gain mVrms Input voltage full scale min input gain mVrms Frequency response -3dB cut-off 3400 Output dc bias level 2.16 2.64 5.9.4 Speaker Signals (EARP, EARN) EARP and EARN are the speaker output signals. These are differential-mode outputs. With a full-scale PCM input to the CODEC, 0 dB audio output gain setting, and a differential load RL = 30Ω, the output voltage between EARP and EARN is 1.5 V rms.
  • Page 54 Figure 5.10-3 PCM Frame format for a continuous transfer The PCM interface has a Slave mode, however the allocated DSP buffer size limits the maximum data rate available. A separate Application Note describing slave mode implementation can be obtained from Sony Ericsson through Customer Support. LZT 123 1834...

  • Page 55: Serial Data Interfaces

    5.11 Serial Data Interfaces The serial channels consist of two UARTs and a USB port. These provide communication links to the application or accessory units. The serial channels can be used in differing configurations, depending upon the users requirements and application. However, the common configuration options are described: •...

  • Page 56: Uart1

    5.11.1 UART1 Name Direction Function DSR1 Output Data Set Ready (UART1) Output Ring Indicator DTR1 Input Data Terminal Ready (UART1) DCD1 Output Data Carrier Detect (UART1) RTS1 Input Ready To Send (UART1) CTS1 Output Clear To Send (UART1) DTM1 Input Data To Module from host (UART1) DFM1 Output...

  • Page 57: Serial Data From Wireless Modem (Dfm1)

    5.11.2.1 Serial Data From Wireless modem (DFM1) DFM1 is an output signal that the wireless modem uses to send data via UART1 to the host application. The electrical characteristics of this level-shifted signal are described in section 5.3.1. 5.11.2.2 Serial Data To Wireless modem (DTM1) DTM1 is an input signal, used by the application to send data via UART1 to the wireless modem.

  • Page 58: Clear To Send (Cts1)

    5.11.3.3 Clear To Send (CTS1) CTS is asserted by the DCE to indicate that the host (DTE) may transmit data. When CTS is high, the host (DTE) is not permitted to transmit data. The table below shows the load characteristics for this signal. 5.11.3.4 Data Terminal Ready (DTR1) DTR indicates that the DTE is ready to receive data.

  • Page 59: Uart3 (Dtm3, Dfm3)

    5.11.4 UART3 (DTM3, DFM3) Name Direction Function DTM3 Input Data To Module from host (UART3) DFM3 Output Data From Module to host (UART3) UART 3 consists of a full duplex serial communication port with transmission and reception lines. Timing and electrical signals characteristics are the same as for UART1, DTM1 and DFM1, including the baud rate range and the capability to auto-baud.

  • Page 60: Usb

    5.11.5 USB Name Direction Function USBDP In/Out USB data positive USBDN In/Out USB data negative VUSB Input USB DC power The USB interface is compliant with the USB2.0 standard for a full speed (12Mbps) endpoint device. Together with VUSB and GND it creates a standard USB 4-pin interface.

  • Page 61: Sim Card Interface

    5.11.6 SIM Card Interface Name Direction Function SIMVCC Output 1.8V or 3.0V SIM card supply SIMDET Input SIM presence detection SIMRST Output SIM card reset signal SIMDAT In/Out SIM card data SIMCLK Output SIM card clock signal This interface allows the user to communicate with the smart (SIM) card in the user application.

  • Page 62: Sim Detection (Simdet)

    5.11.7 SIM Detection (SIMDET) SIMDET is used to determine whether a SIM card has been inserted into or removed from the SIM card holder. You should normally wire it to the ‘card inserted switch’ of the SIM card holder, but different implementations are possible. When left open, an internal pull-up resistor maintains the signal high and means ‘SIM card missing’...

  • Page 63: Buzzer

    Maximum input voltage There are two methods for updating the firmware in the GR64: Sony Ericsson Emma III and Updater. The Emma III system is a web based tool that accesses a Sony Ericsson server from which signed software can be downloaded. The Updater is a local application NOTE that downloads a signed image provided by SEMC.
  • Page 64 Figure 5.14-1 Recommended circuit for an LED LZT 123 1834...

  • Page 65: General Purpose Io

    5.15 General Purpose IO Name Default Alternate function GPIO1 GPIO1 GPIO2 GPIO2 GPIO3 GPIO3 GPIO4 GPIO4 GPIO5 ADIN4 ADC Input 4 GPIO6 LED control signal GPIO7 DSR1 Data Set Ready (UART1) GPIO8 Ring Indicator GPIO9 RTS1 Ready To Send (UART1) GPIO10 DTR1 Data Terminal Ready (UART1)

  • Page 66: Embedded Applications

    Some GPIO is configured to provide a keyboard interface (details are covered in the next section). In the GR64, all IO undergoes level shifting to maintain backward compatibility with older interface technology. Users should not that GPIO that is used truly bi- directional cannot be open drain type on both sides.

  • Page 67: Digital To Analogue Converter - Dac

    5.16 Digital to Analogue Converter – DAC Name Direction Function Output Pulse width modulated signal The GPIOx has dual functionality. In addition of being a fully programmable GPIO it also has the capability of becoming a PWM output. This PWM can be used as a DAC by implementing an RC-filter followed by an optional buffer.
  • Page 68 Figure 5.17-1 ADC sharing arrangement ADC sampling frequency and sampling source selection can be set up and controlled with AT-commands by the user. ADC samples requires up to 5 clock (ADCLK) cycles to process. The ADC also performs some system-level sampling. These two factors limit the maximum practical sampling rate to around 20ksps.

  • Page 69: I 2 C Serial Control Bus

    5.18 I C Serial Control Bus Name Direction Function In/Out C data Output C clock The I C interface comprises two signals; data (SDA) and clock (SCL). Both SDA and SCL have pull-up resistors. Therefore, when the bus is free, both SDA and SCL are in a HIGH state.

  • Page 70: Burst Transmission (Tx_On)

    5.19 Burst Transmission (TX_ON) Name Direction Function TX_ON Output Transmit indication Burst transmission is the period during which the GSM transceiver is transmitting RF signals. TX_ON is an indicator that the module is transmitting. A typical application may use TX_ON to blank adjacent receiver circuitry as a means of protecting sensitive input stages.

  • Page 71: Real Time Clock Backup Supply (Vrtc)

    5.20.1 Real Time Clock Backup Supply (VRTC) Name Direction Function VRTC Input DC supply for real time clock VRTC provides an input connection to the module which allows the user to power the real time clock (RTC) within the GR64 by way of a coin cell or charged capacitor. When the module is powered, an internal LDO regulator provides a 200µA source designed to supply the microprocessor’s RTC block.

  • Page 72: Rtc Alarm (Alarm)

    Figure 5.20-1 VRTC connection 5.20.2 RTC Alarm (ALARM) Name Direction Function ALARM Output RTC Alarm The Alarm output is logic output from the module which is supplied from the RTC circuitry block. This block is in turn supplied either from the main supply of the module or from a backup battery if the main supply is not available.

  • Page 73: Alarm Utilization As A Wake-Up

    Figure 5.20-2 Typical host-side circuit for ALARM output VRTC is specified to work down to 1.1V across the environmental operating conditions of the GR64. Integrators may discover in controlled environments that the VRTC interface will function reliably as low as 0.8V, so best practice would be to design the circuitry to operate down to 0.7V.

  • Page 74: Antenna Connector

    To bypass the MMCX connector, a pair of PCB landing pads are available on the underside of the module. You can probe these pads or solder a coaxial cable directly to them. Sony Ericsson; however, cannot guarantee absolute performance when connecting to the antenna in...

  • Page 75: Hints For Integrating The Wireless Modem

    Hints for Integrating the Wireless Modem This chapter gives you advice and helpful hints on how to integrate the wireless modem into your application from a hardware perspective. Make sure you read and consider the information under the following headings before starting your integration work: •...

  • Page 76: Sim Card

    SIM card. When designing applications, the SIM card’s accessibility should be taken into account. Sony Ericsson recommends that users protect SIM card access by a PIN code. This will ensure that the SIM card cannot be used by an unauthorized person.

  • Page 77: Installation Of The Wireless Modem

    The wireless modem and antenna may be damaged if either come into contact with ground potentials other than the one in the users application. Beware, ground potential are not always what they appear to be. In the final application, the antenna must be positioned more than 20 cm away from human bodies.

  • Page 78: Connection Of Components To Wireless Modem

    Before installing the wireless modem, use an ordinary mobile telephone to check a possible location for it. In determining the location for the radio device and antenna, you should consider signal strength as well as cable length. 7.4.1.3 Connection of Components to Wireless modem The integrator is responsible for the final integrated system.

  • Page 79: Audio

    There are two ways of updating the firmware in the GR64. There is a web-based tool that can access a Sony Ericsson server from where SW can be downloaded. There also is an Updater, which is a local application that downloads an image provided by SEMC.

  • Page 80: Antenna Placement

    The antenna must be designed for the frequency bands deployed in the regions that the wireless modem is being used. For fixed locations this may be dual bands (for example E-GSM900/GSM1800 in Europe; GSM850/GSM1900 in North America). For applications which are mobile, users should consider whether three or all four GSM bands could be encountered.
  • Page 81 • Noise can be caused by electronic devices and radio transmitters. • Path-loss occurs as the strength of the received signal steadily decreases in proportion to the distance from the transmitter. • Shadowing is a form of environmental attenuation of radio signals caused by hills, buildings, trees or even vehicles.

  • Page 82: Embedded Applications

    8.1 Features Main features of embedded applications are as follows: • C-based scripting language (Sony Ericsson specific) • Over the air upgrade of scripts (NOT GSM software) • Library of intrinsic functions • 2 scripts can be stored in the memory at any time (but only 1 can be active) 8.2 Implementation...

  • Page 83: M2Mpower Ide (Integrated Development Environment)

    Code cannot be ported directly from an existing application and loaded directly onto the wireless modem. It must be re-written in the Sony Ericsson Mobile script language so that the wireless modem interpreter can function correctly. 8.2.2 M2mpower IDE (Integrated Development Environment)

  • Page 84: Tcp/Ip Stack

    TCP/IP Stack An on board IP/TCP/UDP stack has been integrated into the software negating the need for the customer to implement one in their own code base. This is accessible by using an embedded application (see section 9) using intrinsic functions.

  • Page 85: Technical Data

    10 Technical Data 10.1 Mechanical Specifications Refer to Figure 4.2-1 & Figure 4.2-2 for reference to mechanical features. Variant Mechanical Feature Value Length 50 mm Width 33 mm without SIM holder 3.3 mm Thickness (see illustration below) with SIM holder 5.9 mm Weight Figure 10.1-1 Thickness of module variant without SIM holder...

  • Page 86: Power Supply Voltage, Normal Operation

    10.2 Power supply voltage, normal operation Parameter Mode Limit VCC Supply voltage Nominal 3.6 V 3.2 V 4.5 V Absolute maximum -0.3V to 6.5V voltage range <100mV @<200kHz Maximum supply ripple <20mV @>200kHz Maximum allowable voltage drop Transmission burst 200mV Maximum current consumed Full power (2W) transmit 2250 mA (peak)

  • Page 87: Environmental Specification

    10.5 Environmental Specification Test Case Test Summary Ref Standard Temp: max storage Humidity: nominal Heat Test IEC 60068-2-2 Duration: 16 hours Temp: min storage Cold Test IEC 60068-2-1 Duration: 16 hours Temp (low) : min storage Temp (high) : max storage 2 hrs dwell at each extreme Temperature Cycling IEC 60068-2-14...
  • Page 88 Test Case Test Summary Ref Standard Freq: 10-60 Hz, constant displacement ≡±0.35mm Freq : 60-500 Hz, constant acceleration ≡ 5 g Sinusoidal Vibration IEC 60068-2-6 Sweep velocity: 1 oct/min Sweeps: 5 per axis Axis: 3 axis (x, y, z) per device Power Spectral Density: 5 Hz 0.10 m...

  • Page 89: Regulatory Notices

    11 Regulatory Notices The GR64 described in this manual conforms to the Radio and Telecommunications Terminal Equipment (R&TTE) directive 99/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC. The product fulfils the requirements according to 3GPP TS 51.010-1, EN 301 489-7 and EN60950. This device complies with Part 15 of the FCC rules.

  • Page 90: Developers Kit

    Developers Kit LZT 123 1834...

  • Page 91: Introduction To The Universal Developer's Kit

    12 Introduction to the Universal Developer’s Kit The Sony Ericsson M2M universal developer’s kit (UDK) is designed to get you started quickly. It contains all the hardware you will need to begin the development of an application. The only items you need to provide are; a wireless modem, a computer, a SIM card with a network subscription, and a knowledge of programming with AT commands.
