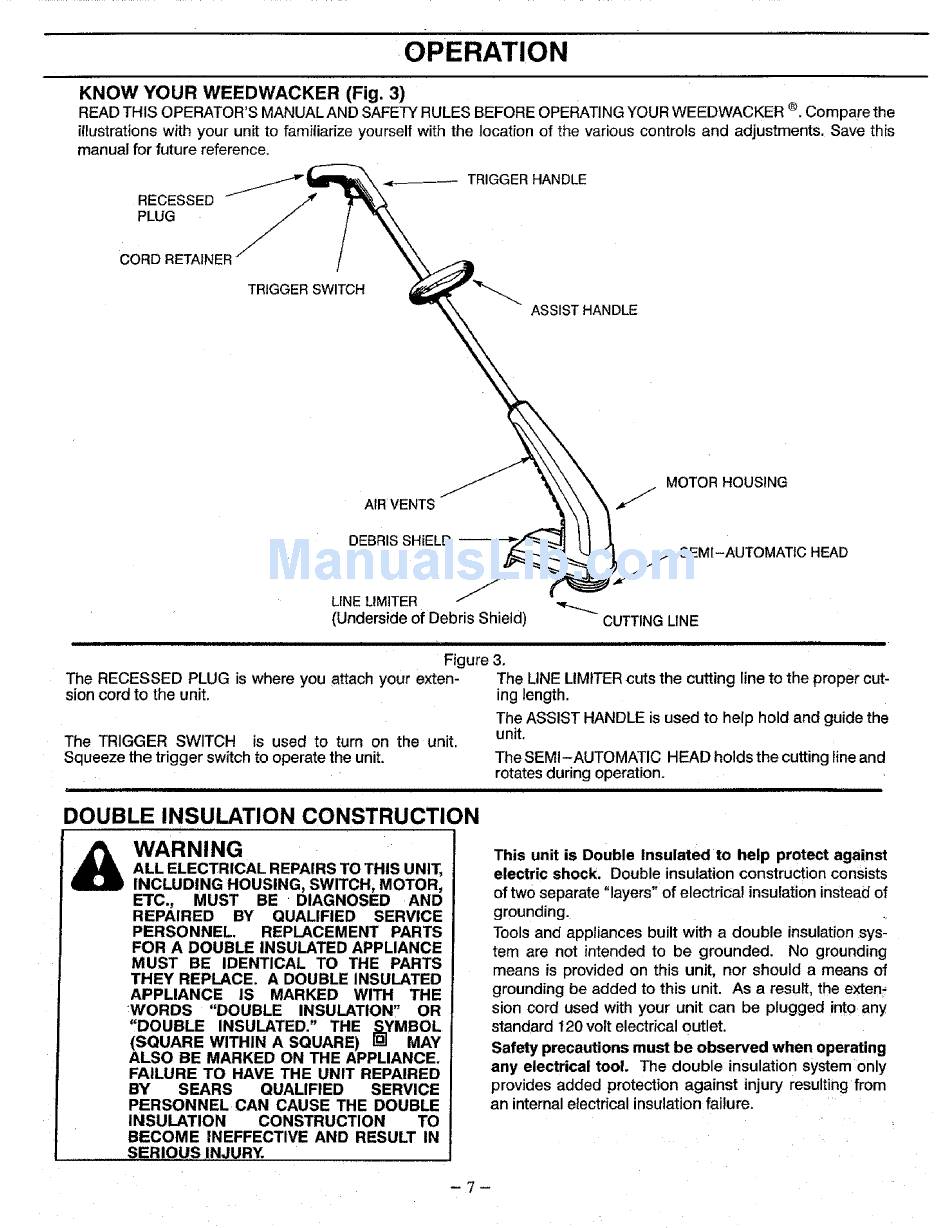

OPERATION
KNOW YOUR WEEDWACKER
(Fig. 3)
READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR WEEDWACKER ®. Compare the
illustrations
with your unit to familiarize yourself with the location of the various controls and adjustments.
Save this
manual for future reference.
RECESSED j'_'_'_-
_
_t.=_ _
TRIGGER HANDLE
oo.o.FA,NER"
TR,GG
,ST.AND E
\
MOTOR
HOUS,NG
A,.VENTS
\\ \
tl/1
SEMI-AUTOMATIC HEAD
(Underside of Debris Shield)
"_"_-_"- C UTTING LINE
Figure 3.
The RECESSED PLUG is where you attach your exten-
sion cord to the unit.
The TRIGGER SWITCH
is used to turn on the unit.
Squeeze the trigger switch to operate the unit.
The LINE LIMtTER cuts the cutting line to the proper cut-
ing length.
The ASSIST HANDLE is used to help hold and guide the
unit.
The SEMI-AUTOMATIC
HEAD holds the cutting fine and
rotates during operation.
DOUBLE INSULATION
CONSTRUCTION
WARNING
ALL ELECTRICAL REPAIRS TO THIS UNIT,
INCLUDING
HOUSING, SWITCH, MOTOR,
ETC.,
MUST
BE DIAGNOSED
AND
REPAIRED
BY
QUALIFIED
SERVICE
PERSONNEL.
REPLACEMENT
PARTS
FOR A DOUBLE INSULATED APPLIANCE
MUST
BE IDENTICAL
TO THE PARTS
THEY REPLACE.
A DOUBLE INSULATED
APPLIANCE
IS
MARKED
WITH
THE
:WORDS
"DOUBLE
INSULATION,
OR
',DOUBLE
INSULATED."
THE _YMBOL
(SQUARE
WITHIN A SQUARE)
9
MAY
ALSO BE MARKED ON THE APPLIANCE.
FAILURE TO HAVE THE UNIT REPAIRED
BY
SEARS
QUALIFIED
SERVICE
PERSONNEL
CAN CAUSE THE DOUBLE
INSULATION
CONSTRUCTION
TO
BECOME
INEFFECTIVE
AND RESULT IN
SERIQ_S
INJURY.
This unit is Double Insulated to help protect against
electric shock.
Double insulation construction consists
of two separate "layers" of electrica! insulation instead of
grounding.
Tools and appliances built with a double insulation sys-
tem are not intended to be grounded.
No grounding
means is provided on this unit, nor should a means of
grounding be added to this unit. As a result, the extent
sion cord used with your unit can be plugged into any
standard 120 volt electrical outlet.
Safety precautions must be obsewed
when operating
any electrical tool. The double insulation system only
provides added protection against injury resulting from
an internal electrical insulation failure.
?
