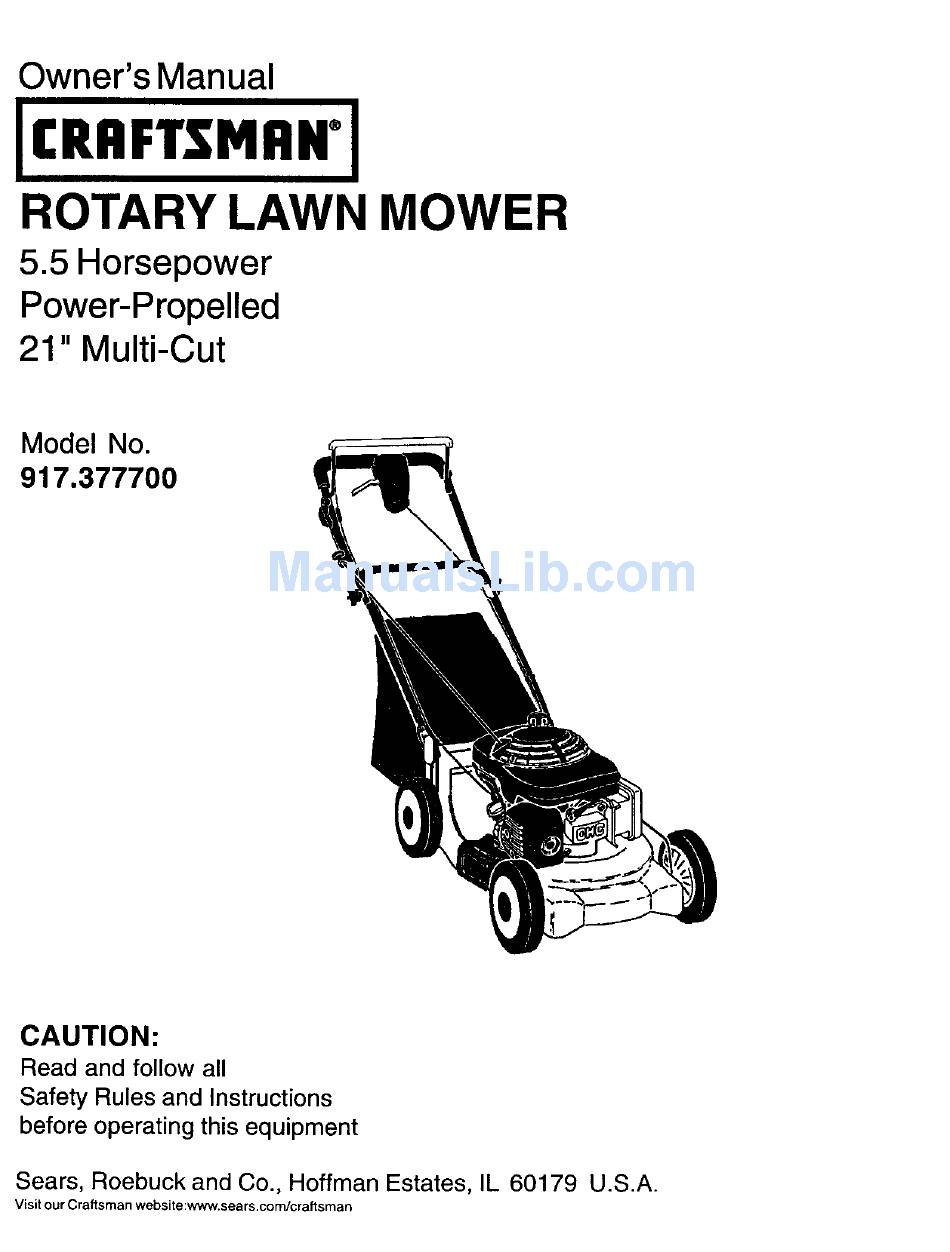

Owner's Manual
ICRIIFTSMHWI
ROTARY LAWN MOWER
5.5 Horsepower
Power-Propelled
21" Multi-Cut
Model No.
917.377700
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.377700 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftsman 917.377700

Summary of Contents for Craftsman 917.377700

  • Page 1 Owner's Manual ICRIIFTSMHWI ROTARY LAWN MOWER 5.5 Horsepower Power-Propelled 21" Multi-Cut Model No. 917.377700 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website:www.sears.com/craftsman...
  • Page 2 Service ...... Back Cover LIMITED IWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up according to the operating and maintenance instructions the owner's manual,...
  • Page 3 I.GENERAL OPERATION • Always wear safety goggles or safety glasses with side shields when • Read, understand, and follow all instructions on the machine and in the operating mower. I1. SLOPE OPERATION manual(s) before starting. Be thor- oughly familiar with the controls and Slopes are a major factor related to slip the proper use of the machine before...

  • Page 4: Lawn Mower Maintenance

    • Never run a machine inside a closed • Stop and inspect the equipment if you area. strike an object. Repair, if necessary, • Never make adjustments or repairs before restarting. with the engine (motor) running. ° Never attempt to make wheel height Disconnect the spark plug wire, and...
  • Page 5 Read these instructions and this manual 3. Remove any packing material from around control bar. in its entirety before you attempt Your lawn mower handle can be adjusted assemble or operate your new lawn mower. for your mowing comfort. Refer to "AD- IMPORTANT: This lawn mower is JUST HANDLE"...

  • Page 6: Before Operating

    KNOWYOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments, Save this manual for future reference. These symbols may appear on your lawn mower or in literature...

  • Page 7: Engine Zone Control

    DRIVE CONTROL The operation of any lawn mower can result in foreign • Self-propelling is controlled by holding objects thrown into the the operator presence control bar down eyes, which can result in to the handle and pulling the drive severe eye damage.
  • Page 8 TO A'I-rACH GRASS CATCHER TO ADJUST CUTTING HEIGHT 1. Lift the rear door of the lawn mower All four wheels are adjusted by a single lever. and place the grass catcher frame side hooks into the slots of the rear •...
  • Page 9 TO CONVERT MOWER Your lawn mower was shipped ready to be used as a mulcher. To convert bagging or discharging: REAR BAGGING • Open rear door and remove mulcher plug. Store mulcher plug in a safe place. • You can now install the grass catcher. •...

  • Page 10: Before Starting

    BEFORE STARTING ENGINE A CAUTION: Alcohol blended fuels (called gasohol or using ethanol or ADD OIL methanol) can attract moisture which Your lawnmower is shipped without oil in leads to separation and formation of the engine. For type and grade of oil to acids during storage.

  • Page 11: To Stop Engine

    MULCHING MOWING TIPS Slowly move throttle control lever to FAST position after engine starts. IMPORTANT: For best performance, • To start a warm engine, move throttle keep mower housing free of built-up control lever to FAST position, then grass and trash. See "CLEANING" in the follow steps above.

  • Page 12: Lubrication Chart

    ERVICE DATES Check for Loose Fasteners Clean/Inspect Grass Catcher (if Equipped) i_ _ Clean Lawn Mower Clean Under Drive Cover (Power-Propelled Mowers) Check drive belt/pulleys (Power-Propelled Mowers) Check/Sharpen/Replace Blade I,/3 Lubrication Chart Clean Battery/Recharge IE, .c Sta. M owers) E Check Engine Oil Level Change Engine Oil V¢1.2...

  • Page 13: Specifications

    PRODUCT SPECIFICATIONS Serial number: Date of purchase: Gasoline capacity / type: 1.0 quarts (unleaded regular) Oil type (API-SF-SJ): SAE 30 (above 32°F); SAE 5W-30 (below 32°F) Oil capacity: 18.5 ounces Spark plug (gap: .030") NGK BPR6ES Blade bolt torque: 36-44 ft. Ibs. •...
  • Page 14 Check the crankcase oil level before GRASS CATCHER starting the engine and after each five (5) • The grass catcher may be hosed with hours of continuous use. "13ghten oil plug water, but must be dry when used. securely each time you check the oil •...

  • Page 15: Lawn Mower

    TO CLEAN AIR FILTER SPARK PLUG Remove cover. Replace spark plugs at the beginning of 2. Carefully remove cartridge. each mowing season or after every 100 3. Clean by gently tapping on a flat hours of operation, whichever occurs first. surface.
  • Page 16 ENGINE TO ASSEMBLE GRASS CATCHER ENGINE SPEED 1. Put grass catcher frame into grass bag with rigid part of bag on the bottom. Your engine speed has been factory set. Make sure the frame handle is outside Do not attempt to increase engine speed of the bag top.

  • Page 17: Troubleshooting

    ratio found on stabilizer container. Run engine at least 10 minutes after adding SQUEEZE I1__ Handle pin stabilizer to allow the stabilizer to reach the carburetor. Do not drain the gas tank and carburetor if using fuel stabilizer. ENGINE OIL Drain oil (with engine warm) and replace with clean engine...
  • Page 18 TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Service Center. CAUSE PROBLEM CORRECTION 1. Rear of lawn mower Loss of power 1. Set to "Higher Cut" housing or cutting blade position. dragging in heavy grass. 2. Cutting too much grass.
  • Page 19 GARANT{A LIMITADA DE DOS ANOS PARA LA SEGADORA A MOTOR CRAFTSMAN Por dos (2) a6os, a partir de la fecha de compra, cuando esta Segadora Craftsman se mantenga, lubrique y afine segDn las instruccionas para la operaci6n y el mantenimiento en el manual dal dueEo, Sears reparar_l gratis todo defecto en el material y la mano de obra.
  • Page 20 I1. OPERAClON SOBRE LAS CUESTAS I. OPERAClON Los accidentes ocurren con m_s frecuencia • Antes de empezar, debe familiarizarse en las cuestas. Estos accidentes ocurren completamente con los controles y el uso debido a resbaladas o cm'das, las cuales correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones que pueden resultar en graves lesiones.

  • Page 21: Mantenimiento

    • Nunca haga funcionar una mdquina dentro • Pare e inspeccione el equipo si le pega a un de un drea cerrada. objeto. Rep&relo, si es necesarlo, antes de hacerlo arrancar. • Nunca haga ajustes o reparaciones mientras el motor est6 en marcha. •...
  • Page 22 Lea estas instrucciones y el manual El mango de la segadora puede ajustarse completamente antes de tratar de mortar u seg_'mle acomode para segar. Refidrase a "AJUSTE DEL MANGO" en la Seccibn de operar su segadora nueva. IMPORTANTE: Este cortacesped viene SIN Servicio y Ajustes de este manual.
  • Page 23 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUEI_IO Y I_AS REGLAS DE SEGURIDAD ANTES DE OPERAR SU SEGADORA. Compare las ilustraciones con su segadora para familiadzarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos sfmbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.
  • Page 24 CONTROL DE LA IMPULSION La operaci6n de cualquier • La autopropulsi6n se contmla manteniendo segadora puede hacer que la palanca de mando operador presente salten objetos extrafios dentro abajo hacia el mango y tirando la palanca de de sus ojos, Io que puede producir dafios graves en _stos.
  • Page 25 PARA AJUSTAR LA ALTURA PARA MONTAR Y ADJUNTAR CORTE RECOGEDOR DE CESPED Las cuatro ruedas son ajustadas con una 1. Levante la puerta trasera de la segadora palanca Onica. de c6sped y ponga el marco del recogedor Tire de la palanca de ajustes hacia la de crisped a dentro de las ranuras de la rueda.
  • Page 26 PARA CONVERTIR LA SEGADORA Su segadora fue enviada lista para usarse como acolchadora de capa vegetal. Para convertirla a una operaci6n de ensacado o de descarga: SEGADORAS CON DESCARGA TRASERA • Abra la puerta trasera y remueva la tap6n acolchadora. Gudrdela en un lugar seguro. •...
  • Page 27 3. Ustedrecibe un envasa de Tapadel rellenador de aceite con la gasolina unidad. Vierta lentamente 3/4 (12 onzas) de aceite en el tubo de reneno del motor. Permita que el aceite se asiente. Use un medidor en la tapa/varilla indicadora del nivel para relleno del aceite para revisar el nivel.

  • Page 28: Para Parar

    PARA PARAR EL MOTOR CONSEJOS PARA SEGAR ACOLCHAR • Para parar el motor y si no intenta ponedo en marcha de nuavo, alivie la barra de IMPORTANTE: Pare obtener el mejor control que exige la presencia del operador. rendimiento mantenga la caja de la segadora Espere hasta que la cuchilla y todas las sin acumulacion de cesped y basura.

  • Page 29: Antes De Cada Uso

    OOEOOMPLETESUSE.V,O,O. GU . Limpiadinspeccionar el recogedor de Revisar si hay sujetadores sueltos cdsped (si viene equipado) Limpiar la segadora Limpiar debajo de la cubierta de ta trans- mision (segadoras con poder propulsor) sadas (se_adoras con poder propulsor) Revisar las correas y las poleas impul- Revisar o/afilar/cambiar la cuchilla V' 3 Tabla de lubricacibn...

  • Page 30: Del Producto

    ESPEClFICAClONES DEL PRODUCTO NDmero de sede: Fecha de compra: Capacidad y tipo de gasolina: 1.0 cuartos (regular sin plomo) Tipo de aceite (API-SF-SJ): SAE 30 (sobre 32°F);SAE 5W-30 (debajo 32°F) 18.5 onzas Capacidad de aceite: NGK BPR6ES Buj[a (abertura: .030") 36-44 FT.
  • Page 31 RECOGEDOR DE ClaSPED 3. Incline la cortadora de cdsped por este • El recogedor de c_sped puede ser rociado costado tal como se muestra y purgue el con el agua de la manguera pero tiene que aceite en un recipiente id6neo. Mueva la estar seco cuando se vaya a usar.
  • Page 32 SILENCIADOR _PRECAUCI_N: Desconecte el alambre de Inspeccione y cambie el silenciador si estd la bujl'ay p6ngalo en donde no pueda entrar en contacto con 6sta. corrofdo puede producir un peligro de incendio y/o daSo. • Limpie la parte inferior de su segadora raspdndola para remover la acumulaci6n de BUJ|AS cesped y basura.
  • Page 33 personales. Si cree que el motor est_ PRECAUClON: NO haqa funcionar su funcionando demasiado rdpido o demasiado segadora sin el desviador _e recortes o sin el lento, Ileve su segadora a mas con su centro recogedor de c_sped, aprebados, en su de servicio Sears o con un otro centro de lugar.
  • Page 34 est& usando estabilizador de combustible. MOTOR ACEITE DEL MOTOR SISTEMA DE COMBUSTIBLE Drene el aceite (con el motor caliente) y IMPORTANTE: Es importante evitar que se c&mbielo con aceite de motor limpio. (Vea formen depositos de coma en partes funda- "MOTOR"...
  • Page 35 PROBLEMA CAUSA CORRECCI6N Falta de fuerza 4. Acumulaci6n de cdsped, hojas 4. Limpie la parte inferior de la "continuado) o basura debajo de la segadora caja de la segadora. 5. Demasiado aceite en motor. 5. Revise el nivel del aceite. 6.
  • Page 36 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.377700 14 13...
  • Page 37 CRAFTSMAN ROTARY LAWN MOWER -- MODEL NUMBER 917.377700 PART PART DESCRIPTION DESCRIPTION 182724 Handle, Upper, with Grip 85463 Danger Decal 161105X479 Handle, Lower 179783X004 Bracket Assembly 182747 Grip, Foam 57808 Screw 179585 Guide, Rope, Side 166042 V-Groove Pulley 132004 Nut, Hex Lockwasher 1/4-20...
  • Page 38 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.377700...
  • Page 39 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.377700 PART PART DESCRIPTION DESCRIPTION 181071 EZ Walk Drive Control Assembly 82923 Nut Hex Flange Lock 180612 Cable, Drive 180626 Hubcap, Mag Platinum Screw 160785 X004 Shaft Asm. Rear 54583 Cover Drive 160786X004 Shaft Asm.
  • Page 40 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AIAE CONTROLJ FAN COVER CAMSHAFT FLYWHEEL t-lO 15--1' CARBURETOR l_'J'...
  • Page 41 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AIAE CONTROL FANCOVER I_-Y PART KEY PART DESCRIPTION DESCRIPTION 5580311 3683646 Arm, Governor Rubber,Supporter, 107 mm 5580329 5028923 Rod, Governor Petcock Assembly, Manual 5580345 Spring, Governor 5580394 Bracket, Petcock 5580352 Spring, Throttle Return 5580451 Cap Assembly, Fue[ Tank 4439428 Spdng, Lever 5580469...
  • Page 42 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AIAE CYLINDER BARREL 0-18 CRANKSHAFT I RODJ PISTON CONNECTING lAIR CLEANER RECOIL STARTER...
  • Page 43 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AIAF CYUNDER BARREL PISTON CONNECTING ROD PART PART NO. NO. DESCRIPTION DESCRIPTION 5579982 CylinderAssembly 5580014 Piston 2399780 Clip, Valve Guide 1426576 Pin, Piston 5579990 Cover, Head 5580022 Rod Assembly, Connecting 5580006 Cover Comp., Breather 1431055 Bolt, Connecting Rod 0636845 Bolt, Flange (6 x 12)
  • Page 44 Forrepairof major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME ® AnylJme, dayor night (1-800469-4663) (U.SA and Canada) wv_t.sear$.colll www,seEIrs._ For repair of carry-in products like vacuums, lawn equipment, and electronics, call for the nearest Sears Parts and Repair Center. 1-800-488-1222 Any'6"ne, dayorr_ht (U.SA one) www,sears.com...
