CRAFTSMAN 3400 PSI Pressure Washer 580.753400

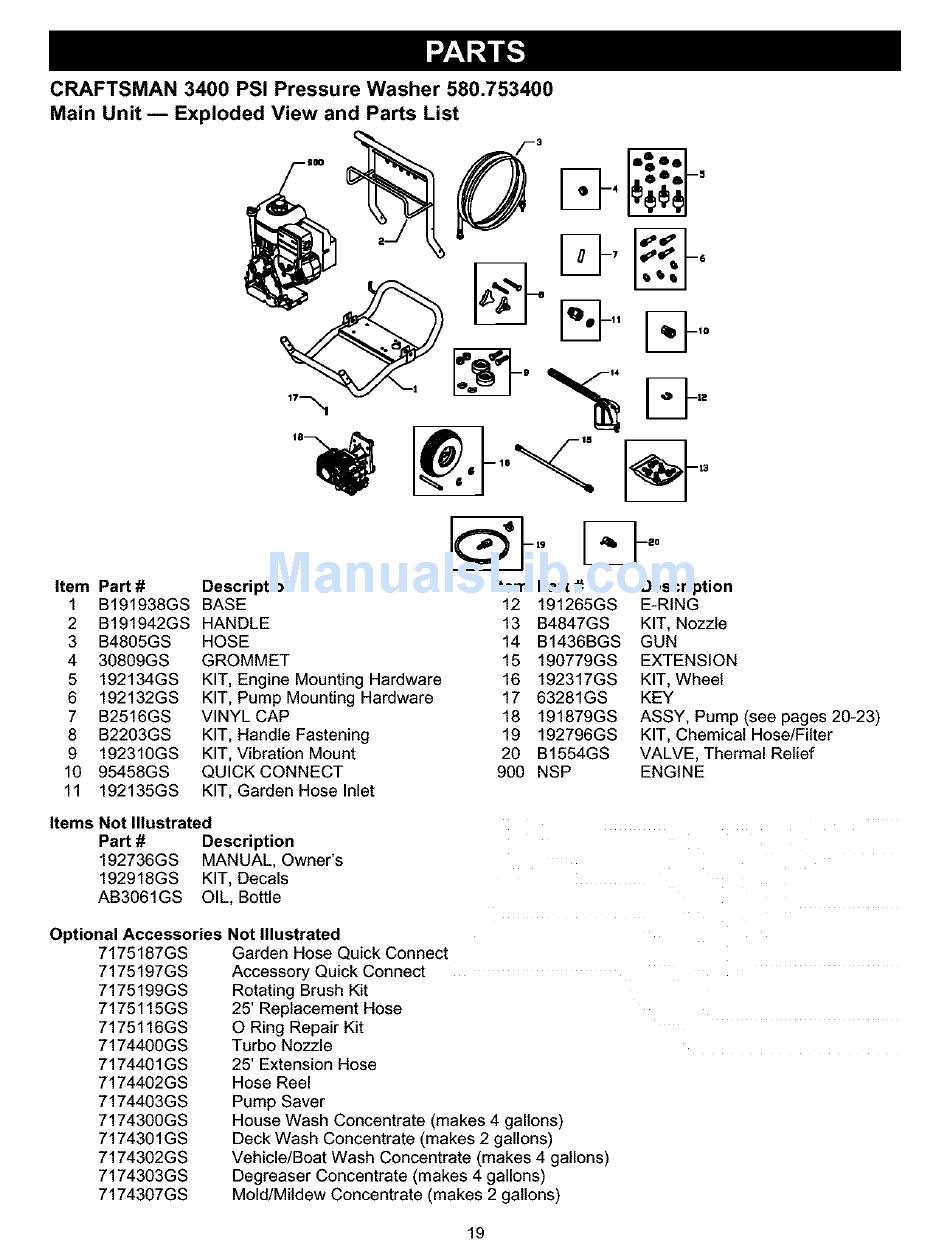

Main Unit -- Exploded View and Parts List
Item Part # Description
1 B191938GS BASE
2 B191942GS HANDLE
3 B4805GS HOSE
4 30809GS GROMMET
5 192134GS KIT, Engine Mounting Hardware
6 192132GS KIT, Pump Mounting Hardware
7 B2516GS VINYL CAP
8 B2203GS KIT, Handle Fastening
9 192310GS KIT, V{bration Mount
10 95458GS QUICK CONNECT
11 192135GS KIT, Garden Hose Inlet
_19 _20
Item Part# Description
12 191265GS E-RING
13 B4847GS KIT, Nozzle
14 B1436BGS GUN
15 190779GS EXTENSION
16 192317GS KIT, Wheel
17 63281GS KEY
18 191879GS ASSY, Pump (see pages 20-23)
19 192796GS KIT, Chemical Hose/Filter
20 B1554GS VALVE, Thermal Relief
900 NSP ENGINE
Items Not Illustrated
Part # Description
192736GS MANUAL, Owner's
192918GS KIT, Decals
AB3061GS OIL, Bottle
Optional Accessories Not Illustrated
7175187GS Garden Hose Quick Connect
7175197GS
7175199GS
7175115GS
7175116GS
7174400GS
7174401GS
7174402GS
7174403GS
7174300GS
7174301GS
7174302GS
7174303GS
7174307GS
Accessory Quick Connect
Rotating Brush Kit
25' Replacement Hose
O Ring Repair Kit
Turbo Nozzle
25' Extension Hose
Hose Reel
Pump Saver
House Wash Concentrate (makes 4 gallons)
Deck Wash Concentrate (makes 2 gallons)
Vehicle/Boat Wash Concentrate (makes 4 gallons)
Degreaser Concentrate (makes 4 gallons)
Mold/Mildew Concentrate (makes 2 gallons)
