Summary of Contents for Singer 3321 matri

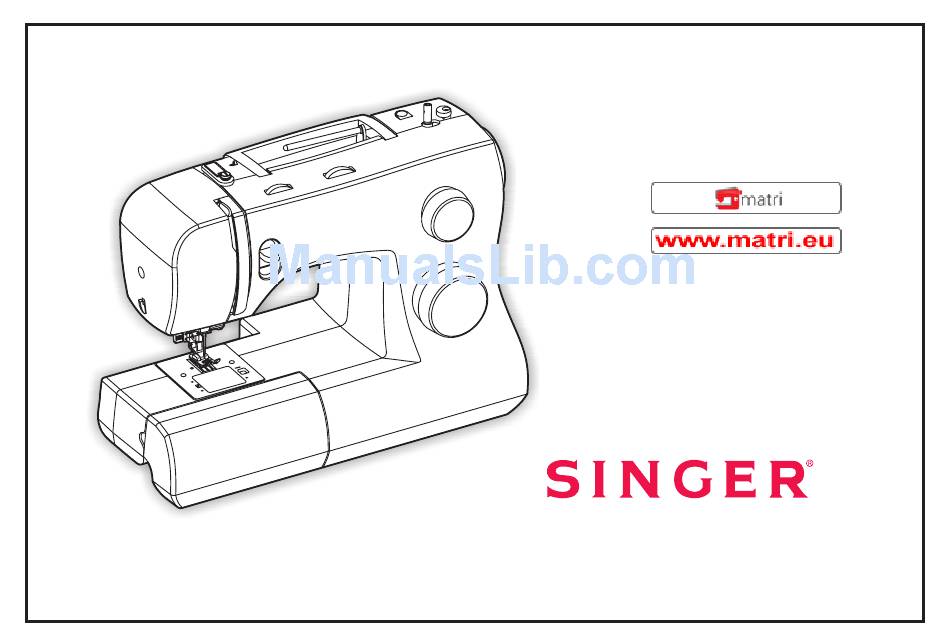

- Page 1 3321 Instruction Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety should always be needle causing it to break. followed, including the following: 9. Switch the sewing machine off ("O") when making any adjustments Read all instructions before using this sewing machine. in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and the like. - Page 3 Congratulations As the owner of a new Singer sewing machine, you are about to begin an exciting adventure in creativity. From the moment you first use your machine, you will know you are sewing on one of the easiest to use sewing machines ever made.
-
Page 4: Table Of Contents
List of Contents Machine Basics Principle Parts of the Machine..............................2/3 Connecting Machine to Power Source ............................4 Two Step Presser Foot Lifter ..............................5 Accessories .....................................6 Threading the Machine Winding the Bobbin .................................7 Inserting the Bobbin ................................8 Threading the Upper Thread ..............................9 Automatic Needle Threader ..............................10 Raising the Bobbin Thread ..............................11 Thread Tension..................................12... -
Page 5: Machine Basics Principle Parts Of The Machine
Principal Parts of the Machine 1. Thread tension dial 2. Thread take-up lever 3. Reverse sewing lever 4. Thread cutter 5. Presser foot 6. Needle plate cover 7. Removable extension table/ accessory storage 8. Bobbin stopper 9. Stitch width dial Stitch length dial... -
Page 6: Presser Foot
Principal Parts of the Machine 13. Horizontal spool pin Bobbin winding spindle 15. Hole for a uxiliary spool pin 16. Handwheel 17. Power and light switch 18. Main plug socket 19. Bobbin thread guide 20. Upper thread guide 21. Face plate 22. -
Page 7: Connecting Machine To Power Source
Connecting Machine to Power Source Connect the machine to a power source as illustrated. (1) This appliance is equipped with a polarized plug which must be used with the appropriate polarized outlet. (2) Attention: Unplug power cord when machine is not in use. Foot control The foot control pedal regulates the sewing speed. -
Page 8: Two Step Presser Foot Lifter
Two Step Presser Foot Lifter When sewing several layers or thick fabrics, the presser foot can be raised to a higher position for easy positioning of the work. (A) -
Page 9: Accessories
Accessories Standard accessories (1) 1 Standard accessories a. All purpose foot b. Zipper foot c. Buttonhole foot d. Button sewing foot 006918008 006905008 006909008 006914008 e. Seam ripper/ brush f. Edge/ quilting guide g. Pack of needles h. Spool holders i. -
Page 10: Winding The Bobbin
Winding the Bobbin Place thread and corresponding spool holder on to spool . (1/2) - Snap thread into thread guide. (3) - Wind thread clockwise around bobbin winder tension discs. (4) - Thread bobbin as illustrated and place on spindle. (5) - Push bobbin spindle to right. -
Page 11: Inserting The Bobbin
Inserting the Bobbin When inserting or removing the bobbin, the needle must be fully raised. 1. Insert the bobbin in the bobbin case with the thread running counterclockwise direction (arrow). 2. Pull the thread through the slit (A). 3. Draw the thread clockwise until it slips into the notch (B). 4. -
Page 12: Threading The Upper Thread
Threading the Upper Thread This is a simple operation but it is important to carry out correctly as by not doing so several sewing problems could result - Start by raising the needle to its highest point (1), and continue turning the handwheel counterclockwise until the needle just slightly begins to descend. -
Page 13: Automatic Needle Threader
Automatic Needle Threader - Raise the needle to its highest position. - Press lever (A) down as far as it will go. - The threader automatically swings to the threading position (B). - Pass thread around thread guide (C). - Pass the thread in front of the needle around the hook (D) from bottom to top. -
Page 14: Raising The Bobbin Thread
Raising the Bobbin Thread Hold the upper thread with the left hand. Turn the handwheel (1) towards you (counterclockwise) lowering, then raising needle. Note: If it is difficult to raise the bobbin thread, check to make sure the thread is not trapped by the hinged cover or the Removable Extension Table. -
Page 15: Thread Tension
Thread Tension Upper thread tension Basic thread tension setting: "4". (1) To increase the tension, turn the dial to the next number up. To reduce the tension, turn the dial to the next number down. A. Normal thread tension for straight stitch sewing. B. -
Page 16: How To Choose Your Pattern
How to Choose Your Pattern The diagram on this page display the stitch patterns available on the machine. Stitches in the top of the diagram are indicated on the Pattern Selector Dial in g . To select the patterns indicated with the g color, turn the Pattern Selector Dial. -
Page 17: Stitch Width Dial & Stitch Length Dial
Stitch Width Dial & Stitch Length Dial Function of stitch width dial The maximum zigzag stitch width for zigzag stitching is 6mm; however, the width can be reduced on any patterns. The width increases as you move zigzag dial from "0" - "6". (1) The Stitch Width Dial is also the control for the straight stitch infinite needle position. -
Page 18: Sewing Straight Stitch
Sewing Straight Stitch To begin sewing, set the machine for straight stitch. (1) Place the fabric under the presser foot with the fabric edge lined up with the desired seam guide line on the needle plate. Lower the presser foot lifter, and then step on the foot controller to start sewing. -
Page 19: Reverse Sewing/Removing The Work/Cutting The Thread
Reverse Sewing To secure the beginning and the end of a seam, press down the reverse sewing lever (A). Sew a few reverse stitches. Release the lever and the machine will sew forward again. (1) Removing the Work Turn the handwheel toward you (counterclockwise) to bring the thread take up lever to its highest position, raise the presser foot and remove work behind the needle and presser... -
Page 20: Choosing Stretch Stitch Patterns
Choosing Stretch Stitch Patterns The Stretch Stitch Patterns are indicated with a blue color on Pattern Selector Dial. To select these stitches, turn the Pattern Selector Dial to the desired pattern. Then, turn the Stitch Length Dial to the indicator marked "S1". Though there are several stretch patterns, here are two examples: Straight Stretch Stitch (1) Set the Pattern Selector Dial to "... -
Page 21: Blind Hem
(2) Unfold the fabric when hemming is completed and press. Note: To make blind hem sewing even easier, use a blind hem ® foot, available from your SINGER retailer. (See page 6 for part number) -
Page 22: Buttonholes
Buttonholes Prepare 1. Take off the all purpose foot and attach the buttonhole foot. 2. Measure diameter and thickness of button and add 0.3 cm (1/8") for bar tacks to obtain correct buttonhole length; mark buttonhole length on fabric (a). 3. -
Page 23: Sewing On Buttons
Sewing on Buttons Install the darning plate. (1) Change the all purpose foot to the button sewing foot. (2) Set the stitch length to "0". Place the button and fabric under the Button Sewing foot, as illustrated in (3). Set the machine for zig-zag stitch, then set the width to number "3"... -
Page 24: Installing The Removable Extension Table
Installing the Removable Extension Table Hold the removable extension table horizontally, and push it in the direction of the arrow. (1) To remove the extension table, pull it toward the left. The inside of the removable extension table can be utilized as an accessory box. -
Page 25: Attaching The Presser Foot Shank
Attaching the Presser Foot Shank Raise the presser foot (a) with the presser foot lifter. Attach the presser foot shank (b) as illustrated. (1) Attaching the presser foot Lower the presser foot shank (b) using the presser foot lifter, until the cut-out (c) is directly above the pin (d). (2) The presser foot (f) will engage automatically. -
Page 26: Needle/Fabric/Thread Chart
Leather, vinyl, upholstery. (Leaves smaller hole than standard SINGER 2032 large needle.) Note : ® 1. For best sewing results always use genuine SINGER needles. 2. Replace needle often (approximately every other garment ) and/ or at first thread breakage or skipped stitches. -
Page 27: Darning Plate
Install the darning plate as illustrated. For normal sewing, remove the darning plate. For free-motion sewing it is recommended to use a darning/embroidery foot, available as an optional accessory ® from SINGER retailers. (See page 6 for part number of darning/embroidery foot ) -
Page 28: Inserting & Changing Needle
Change the needle regularly, especially if it is showing signs of wear and causing problems. For best sewing results ® always use SINGER Brand Needles. Insert the needle as illustrated as follows: A. Loosen the needle clamp screw and tighten again after inserting the new needle. -
Page 29: Changing The Bulb
- Loosen screw (A) as illustrated. (1) - Remove the face plate (B). - Unscrew the bulb and install a new one (C). (2) - Replace the face plate and tighten screw. Should there be any problem, consult your authorized ® SINGER retailer. -
Page 30: Troubleshooting Guide
Troubleshooting Guide Problem Cause Correction Upper thread 1. The machine is not threaded correctly. 1. Rethread the machine. breaks 2. The thread tension is too tight. 2. Reduce the thread tension. (lower number) 3. The thread is too thick for the needle. 3. - Page 31 Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. If in doubt please contact your retailer for guidance. 021Q5A010 4( ) Mar/10 SINGER 3321(Q55A)
