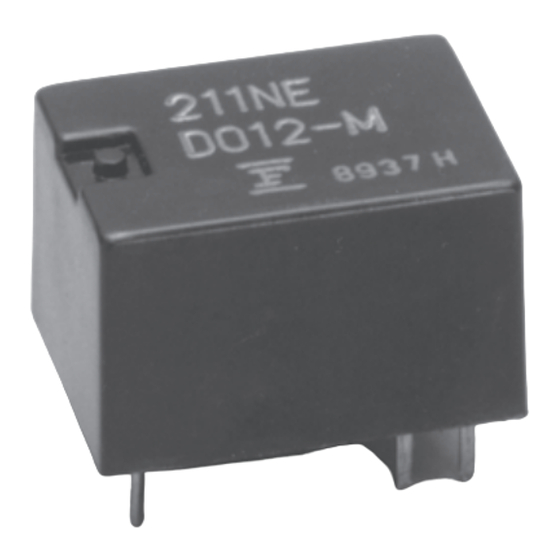

MINIATURE RELAY
1 POLE—1 to 2 A
FBR211 SERIES
n FEATURES
2 A maximum carrying current
l
Capable of 2 A maximum continuous carrying current in the
contact
Superior reliability gold-overlay contacts
l
P type: Gold-overlay silver-palladium contacts
International terminal pitch of one inch grid terminal layout
l
High sensitivity, low power dissipation types also available
l
Standard types: 0.45 W (A or B type)
High sensitivity types: 0.2 W (C or E type)
Conforms to FCC 68.302 (high dielectric strength type)
l
UL recognized (File number E63615)
l
CSA recognized (File number LR64026)
l
RoHS compliant since date code: 0433A
l
Please see page 5 for more information
n ORDERING INFORMATION
FBR211 S
[Example]
(a)
(b) (c)
(a)
Series Name
(b)
Enclosure
(c)
Coil Power and Schematics
(d)
Nominal Voltage
(e)
UL Marking on Cover
(f )
Contact Material
(g)
Special Type
(h)
CSA Marking
Note: The designation name is stamped on the top of the relay case as follows:
(Example) Designation ordered: FBR211SAD005-P
(FOR SIGNAL SWITCHING)
A
D012
U
P
(d)
(e)
(f )
(g)
FBR211
S: Flux free type
N: Plastic sealed type
A: Standard A type
B: Standard B type
C: High sensitivity C type
E: High sensitivity E type
(Example) D003: 3 VDC
D012: 12 VDC (refer to the COIL DATA CHART)
Nil : No UL marking
U : UL marking
P : Gold-overlay silver-palladium
M : Gold-overlay silver
Nil : Standard
2 : High dielectric strength type
Nil
: Standard
-CSA : UL + CSA marking (valid when (e) is U)
Stamp: 211SAD005-P
RoHS compliant
2
(–CSA)
(h)
}
(nominal power 450 mW type)
}
(nominal power 200 mW type)
1

Advertisement

   Summary of Contents for Fujitsu FBR211 SERIES

  • Page 1

    MINIATURE RELAY 1 POLE—1 to 2 A (FOR SIGNAL SWITCHING) FBR211 SERIES RoHS compliant n FEATURES 2 A maximum carrying current Capable of 2 A maximum continuous carrying current in the contact Superior reliability gold-overlay contacts P type: Gold-overlay silver-palladium contacts International terminal pitch of one inch grid terminal layout High sensitivity, low power dissipation types also available Standard types: 0.45 W (A or B type)

  • Page 2

    FBR211 SERIES n COIL DATA CHART 1. STANDARD (A or B type) MODEL Nominal Nominal Coil current Must Must Maximum Nominal Coil A type B type resistance (at nominal operate release allowable temperature voltage power (±10%) voltage) voltage voltage voltage rise Flux free Plastic sealed...

  • Page 3: Specifications

    FBR211 SERIES n SPECIFICATIONS Item Standard (A or B type) High sensitive (C or E type) Contact Arrangement 1 form C (SPDT) Material Gold-overlay silver-palladium / gold-overlay silver Resistance (initial) Maximum 100 mΩ (at 0.1 A 6 VDC) Rating (resistive) 0.5 A 120 VAC or 1 A 28 VDC Maximum Carrying Current Maximum Switching Power...

  • Page 4

    FBR211 SERIES CHARACTERISTIC DATA Range of operation temperature and voltage Range of operation temperature and voltage Operate and release time data (Standard 0.45 W type) (high sensitive 0.2 W type) (Data) assumes that (Data) assumes that Not including bounce time the maximum allow- the maximum allow- able temperature...

  • Page 5

    FBR211 SERIES n DIMENSIONS 1. STANDARD (Flux free type) Schematics (BOTTOM VIEW) Dimensions (A type or C type) (B type or E type) 10.1 + 0.5 15.1 + 0.5 0.35 7.62 (1.24) 10.16 (1.2) 2.54 2. N-TYPE (Plastic sealed type) Schematics (BOTTOM VIEW) Dimensions (A type or C type)

  • Page 6: General Information

    Relays produced after the specific date code that is indicated on each data sheet are lead-free now. Most of our signal and power relays are lead-free. Please refer to Lead-Free Status Info. (http://www.fujitsu.com/us/downloads/MICRO/fcai/relays/lead-free-letter.pdf) Lead free solder paste currently used in relays is Sn-3.0Ag-0.5Cu.

  • Page 7

    Fujitsu Components America or its affiliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our products Fujitsu Components America, Inc. or its affiliates reserve the right to change specifications/datasheets without prior notice.
