Ashly MX-206 Operating Manual

Stereo microphone mixer
Hide thumbs Also See for MX-206:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
MX-206
Stereo
Microphone Mixer
Operating Manual
ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com

Advertisement

Table of Contents
loading

Related Manuals for Ashly MX-206

Summary of Contents for Ashly MX-206

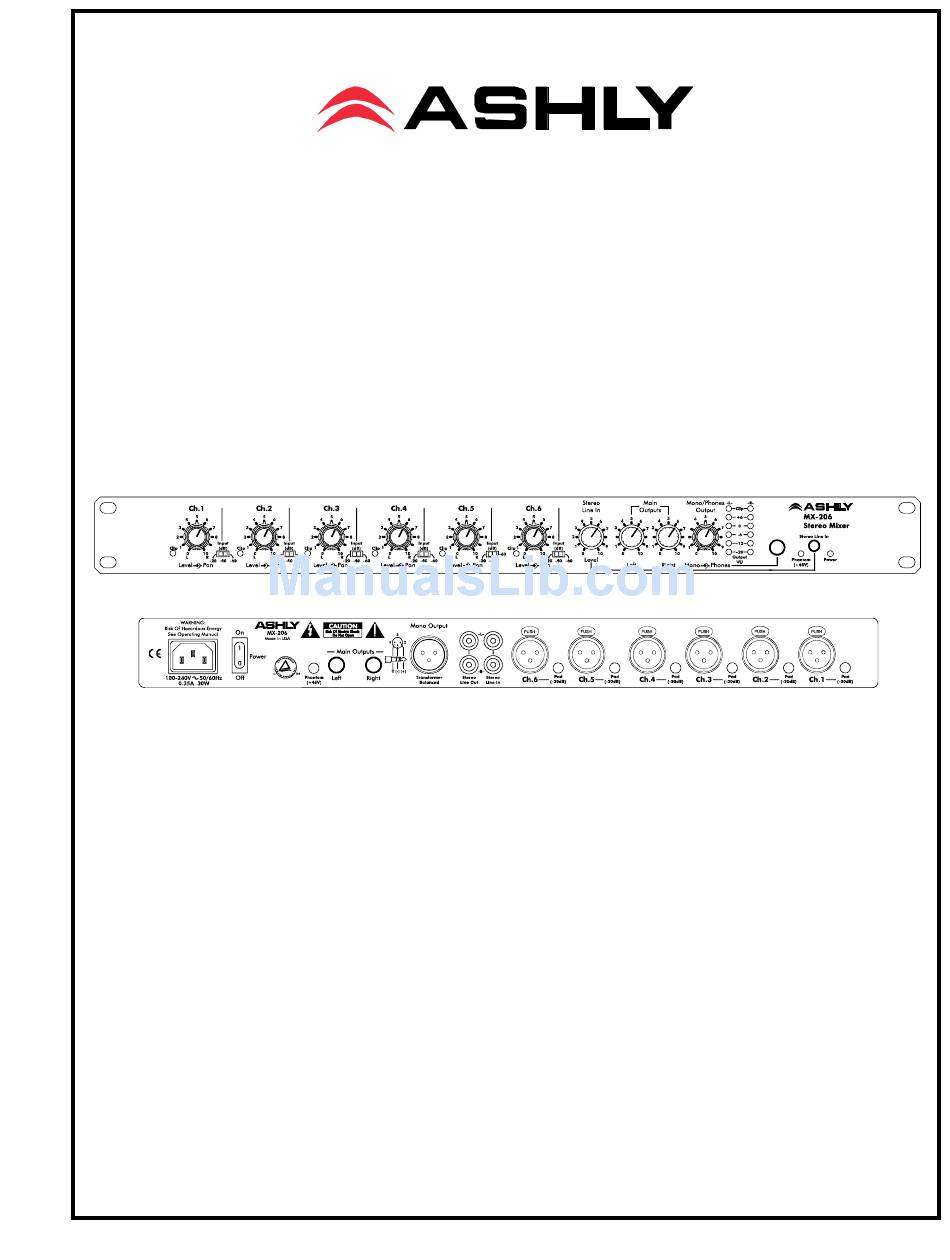

  • Page 1 MX-206 Stereo Microphone Mixer Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...

  • Page 2: Table Of Contents

    Operating Manual -MX-206 Stereo Microphone Mixer Table Of Contents INTRODUCTION ............3 UNPACKING .

  • Page 3: Introduction

    Save the ship- from Ashly. This third generation mixer adds a universal ping carton and all packing materials , as they were care- 100-240VAC 50/60Hz power supply and a 3.5mm front fully designed to reduce to minimum the possibility of panel stereo line input jack.

  • Page 4: Connections And Cables

    Operating Manual -MX-206 Stereo Microphone Mixer 4.5 Stereo Line In 4.12 Power Switch This control adjusts the level of the stereo line in This switch turns on AC power to the mixer, light- signal from the RCA inputs on the back panel and the ing the green LED.
  • Page 5 Operating Manual - MX-206 Stereo Microphone Mixer Two-conductor (twisted pair) shielded cable is best noise ratio and should only be used when the input is be- for all XLR type connections. Belden No. 8412, or its equiva- ing overdriven with the Input dB (gain) switch at its mini- lent, is an excellent cable due to its heavy construction.

  • Page 6: Typical Applications

    Operating Manual -MX-206 Stereo Microphone Mixer 6. TYPICAL APPLICATIONS: 6.1 Small Sound Reinforcement System: In the setup shown here, the MX-206 is used to mix typical sound sources that might be found in a small club, meeting room, school theater or similar environment. Six input channels are used for microphones for vocal or instrumental pickup.

  • Page 7: Troubleshooting Tips

    If possible, feed everything in the system from one power source with a common ground. Use balanced input and output connections between widely separated components. If you need help, get in touch with your Ashly dealer or call an Ashly technical service representative at 1-800-828-6308.

  • Page 8: Warranty Information

    ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects.
