Panasonic WV-SW458 Installation Manual

Network camera
Hide thumbs Also See for WV-SW458:
Table of Contents

Advertisement

Quick Links

Installation Guide

Included Installation Instructions

Network Camera

WV-SW458/WV-SW458M
Model No.
WV-SW458E/WV-SW458ME

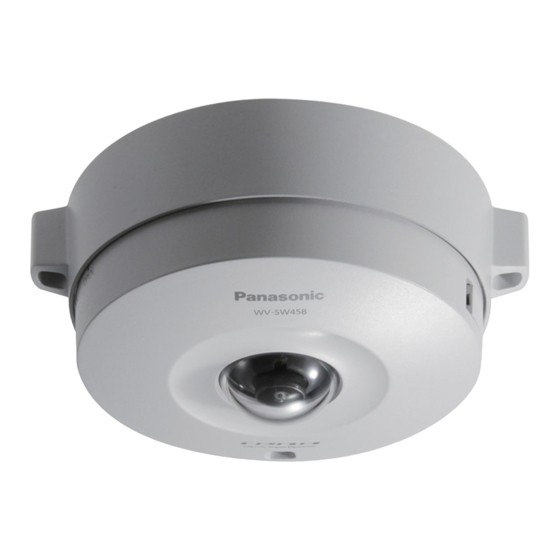

(This illustration represents WV-SW458.)
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WV-SW458

Summary of Contents for Panasonic WV-SW458

  • Page 1: Installation Guide

    Network Camera WV-SW458/WV-SW458M Model No. WV-SW458E/WV-SW458ME (This illustration represents WV-SW458.) Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
  • Page 2 Wir erklären in alleiniger Verantwortung, daß das Produkt, auf das sich diese Erklärung bezieht, mit der folgenden For U.S. and Canada: Norm oder normativen Dokument übereinstimmt. Gemäß WV-SW458, WV-SW458M den Bestimmungen der Richtlinie 2004/108/EC. For Europe and other countries: Nous déclarons sous notre propre responsabilité que le WV-SW458E, WV-SW458ME produit auquel se réfère la présente déclaration est...

  • Page 3: Table Of Contents

    Contents Important safety instructions ......................4 Limitation of liability ........................5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Main functions ..........................6 About the user manuals ........................ 7 System requirements for a PC ...................... 7 Trademarks and registered trademarks..................

  • Page 4: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat. 6) Only use attachments/accessories specified by the manufacturer.

  • Page 5: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...

  • Page 6: Preface

    Preface The network camera WV-SW458/WV-SW458M is designed to operate using a PC on a network (10BASE-T/100BASE-TX), and can be installed under eaves (sheltered outdoor). By connecting to a network (LAN) or the Internet, images and audio from the camera can be moni- tored on a PC via a network.

  • Page 7: About The User Manuals

    About the user manuals There are 2 sets of operating instructions for the WV-SW458, WV-SW458M (P model), WV-SW458E, WV-SW458ME (E model) as follows. • Installation Guide: Explains how to install and connect devices. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera.

  • Page 8: Trademarks And Registered Trademarks

    * A phenomenon in which portions of the screen are displayed out of alignment • F or information on the operation verification of the supported operating systems and web browsers, refer to our website at http://panasonic.net/pss/security/support/index.html. Trademarks and registered trademarks • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe...

  • Page 9: Network Security

    Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks.

  • Page 10: Precautions

    Precautions Refer installation work to the dealer. Do not use this product in an inflammable Installation work requires technique and experi- atmosphere. ences. Failure to observe this may cause fire, Failure to observe this may cause an explosion electric shock, injury, or damage to this prod- resulting in injury.
  • Page 11 Do not rub the edges of metal parts with About the PC monitor your hand. Displaying the same image on a monitor for a Failure to observe this may cause injury. long time may damage the monitor. It is recom- mended to use a screen-saver.
  • Page 12 Code label AVC Patent Portfolio License The code labels (accessory) are required at THIS PRODUCT IS LICENSED UNDER THE inquiry for trouble. Use caution not to lose AVC PATENT PORTFOLIO LICENSE FOR THE these labels. It is recommended to paste one PERSONAL USE OF A CONSUMER OR of the labels onto the CD-ROM case.

  • Page 13: Precautions For Installation

    Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from fail- ures arising out of improper installation or operation inconsistent with this documenta- tion. This product is designed to be installed Do not install this product in a humid or under eaves.
  • Page 14 Procure fixing screws separately. Router The screws that secure this product are not When connecting this product to the Internet, supplied. Prepare them according to the mate- use a broadband router with the port forward- rial and strength of the area where the product ing function (NAT, IP masquerade).

  • Page 15: Major Operating Controls

    Major operating controls Dome cover * Do not touch the dome cover with your bare hands. Enclosure Camera fixing screw SD memory card slot cover * E model only Network cable RJ-45 connector (female) SW458 Network cable M12 connector (male) SW458M Alarm input/output cable Power cable (12 V DC) Microphone/line input cable (white)
  • Page 16 SD memory card slot cover SD memory card slot SD memory card error indicator INITIAL SET button Link indicator (lit when linking) Access indicator (blinks when accessing) About the [INITIAL SET] button After turning off the power of the camera, turn on the power of the camera while holding down this button, and wait for about 5 seconds or more without releasing the button.

  • Page 17: Preparations

    Preparations When installing the camera on a ceiling or a wall, there are 3 methods as specified below. • Using a two-gang junction box ( pages 18 and 19) ☞ • Installing the camera directly on the ceiling or wall page 19) ☞ SW458M • Using the supplied mount bracket pages 20 to 23) ☞ SW458 IMPORTANT: • Procure 4 screws (M4) to secure the camera attachment (accessory) or the mount bracket (accessory) to a ceiling or a wall according to the material of the installation area.

  • Page 18: Method Of Camera Installation

    Using the side cable access hole SW458M When installing the camera directly on the ceiling or wall with cables exposed, cut out a portion of the enclosure to open a cable access hole. Side cable access hole IMPORTANT: • To prevent injury and protect cables, smooth opened cable access holes of the enclosure with a file or other tool.
  • Page 19 Note: • The direction of “gTOP” on the camera attachment (accessory) determines the upwards direc- tion of the image on the PC monitor. • For ceiling mounting: Determine the direction that you want images to be displayed upwards on the PC monitor, and then mount the camera attachment with “ g TOP” facing this direction. • For wall mounting: The camera attachment (accessory) shall be mounted with “gTOP”...
  • Page 20 Using the mount bracket (accessory) SW458 Note: • When the camera is mounted on the ceiling or wall with a hole for cable running, or the camera is mounted using open wiring, the mount bracket (accessory) is used. IMPORTANT: • If open wiring is conducted, be sure to use conduits and run the cables inside the tubes to protect the cables from direct sunlight.
  • Page 21 Determine the direction of the mount bracket according to the installation environment (how the cables are wired, etc.) before mounting it to a ceiling or a wall by fixing 4 screws (locally pro- cured). The direction of the camera in relation to the mount bracket is the 4 directions as shown in the illustration.
  • Page 22 <Using a conduit> Align the direction of the conduit to the direction of the female thread for the conduit on the mount bracket, and mount the mount bracket to hole A or hole B on the ceiling or wall. [For use of the hole Conduit Mount bracket (accessory)
  • Page 23 In the direction determined in x, fix the camera attachment (accessory) on the mount bracket using the fixing screws (accessory). (Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}) Camera attachment (accessory) Fixing screws (accessory) Note: • T he direction of “gTOP” on the camera attachment (accessory) determines the upwards direction of the image on the PC monitor.

  • Page 24: Insert/Remove An Sd Memory Card

    Insert/remove an SD memory card IMPORTANT: • When inserting an SD memory card, make sure the direction. • Before removing the SD memory card, select “Not use” for “SD memory card” on the [SD memory card] tab of the “Basic” page first. Turn off the power after “Not use” selection, and then unload the SD memory card.

  • Page 25: Connection

    Note: • When using the mount bracket (accessory), it is possible to connect the cables after mounting the camera onto the mount bracket. SW458 • Refer to page 20 when connecting the conduit. <WV-SW458> Network cable LAN cable (category 5 or better) RJ-45 connector (female) * E model only Alarm input/output cable 4P alarm cable (accessory) 2P power cable (accessory)
  • Page 26 Connect the microphone/line input cable and the microphone (for use of the audio reception function). Input impedance: 2 kΩ±10 % Recommended cable length: Less than 1 m {3.3 feet} (for microphone input) Less than 10 m {33 feet} (for line input) Recommended microphone: Plug-in power type microphone (option) Connect a monaural mini plug (ø3.5 mm).
  • Page 27 IMPORTANT: • I nput and output of the External I/O terminal 2 and 3 can be switched by configuring the setting. “Off” is selected by default. It is possible to determine whether or not to receive input from External I/O terminal 2 and 3 (ALARM IN2, 3) by selecting “Off”, “Alarm input”, “Alarm output” or “AUX output” for “Terminal 2” or “Terminal 3” on the [Alarm] tab of the “Alarm”...

  • Page 28: Waterproof Treatment For The Cable Joint Sections

    Waterproof treatment for the cable joint sections Adequate waterproof treatment is required for the cables when installing the camera with cables exposed or installing it under the eaves. The camera body is waterproof, but the cable ends are not waterproof. Be sure to use the supplied waterproof tape at the points where the cables are connected to apply waterproof treatment in the following procedure.
  • Page 29 Connection example when connecting to a network using a PoE hub Powered speaker (option) PoE device (hub) LAN cable (category 5 or better, straight, STP*) Microphone LAN cable (option) (category 5 or better, straight, STP*) Powered speaker (option) LAN cable (category 5 or better, straight, STP*) Microphone (option)

  • Page 30: Installation

    Installation Camera mounting Installation shall be conducted after turning off each device. Attach the camera attachment (accessory) on the ceiling or wall. <Using a two-gang junction box> Secure the camera attachment (accessory) to the two-gang junction box (locally procured). (☞ Pages 18 and 19) <Installing the camera directly on the ceiling or wall>...
  • Page 31 Using the mount bracket SW458 Attach the camera onto the camera attachment (accessory) while aligning the “OPEN” mark of the camera with the projection of the camera attachment (accessory). Projection IMPORTANT: • W hen mounting the camera body, cables shall be run between the camera attach- ment (accessory) and mount bracket as indicated by the arrows in the illustration.
  • Page 32 Engage the camera attachment fixing screws of Projection the camera with the screw hole of the camera attachment (accessory) and rotate the camera in the direction of the arrow to secure the cam- era to the camera attachment (accessory). Rotate the camera until a click is heard so that the projection of the camera attachment (acces- sory) will be set to the “LOCK”...
  • Page 33 Accommodate the connected cables inside the cable guide of the camera mount bracket. IMPORTANT: • T o prevent the cables from being caught when the base cover (accessory) is attached, keep the cables inside the cable guide. Cable guide Connected cable Cable guide Attach the base cover (accessory) that was removed according the steps in page 20.

  • Page 34: Configure The Network Settings

    Configure the network settings Configuring the camera so that it can be accessed from a PC The following are descriptions for when the camera with default settings is configured. If you are using firewall software on your PC, the Setup Program may not be able to find any cameras on your network. Configure the setting of the camera after temporarily invalidating the firewall software. Contact the network administrator or your Internet service provider for information about configuring the settings of the network. Insert the provided CD-ROM into the CD-ROM drive of your PC. • T he License Agreement will be displayed. Read the Agreement and choose “I accept the term in the license agreement”, and click [OK]. • T he launcher window will be displayed. If the launcher window is not displayed, double click the “CDLauncher.exe” file on the CD-ROM. Note: • R efer to “Using the CD-ROM” in the Operating Instructions on the provided CD-ROM for further information about CDLauncher. Click the [Run] button next to [IP Setting Software]. “Panasonic IP Setting Software” page will be displayed. Click the [Network Settings] button after selecting the MAC address/IP address of the camera to be configured.
  • Page 35 Select the camera you want to configure, and click [Access Camera]. Note: • W hen cameras are displayed in [IP Setting Software] screen, click the camera with same MAC address as the MAC address printed on the camera that you want to configure. It is necessary to install the viewer software “Network Camera View 4S” to display images. Follow the instructions of the wizard to start the installation. • The “Live” page will be displayed. • P erform the [Time & date] settings in the “Setup” - “Basic” page before using the camera. Note: • W hen no image is displayed on the “Live” page, refer to the Troubleshooting in the Operating Instructions on the provided CD-ROM. • I t is possible to enhance the network security by encrypting the access to cameras using the HTTPS function. Refer to the Operating instructions on the provided CD-ROM for how to configure the HTTPS settings.

  • Page 36: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using DC power supply...

  • Page 37: Specifications

    Specifications • Basic Power source: 12 V DC, PoE (IEEE802.3af compliant) Power consumption: 12 V DC*: 540 mA/ 6.5 W PoE 48 V: 125 mA/ 6.0 W (Class 2 devices) * ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY or LIMITED POWER SOURCE.
  • Page 38 Scanning system: Progressive Minimum illumination: Color: 1.5 lx {0.15 footcandle} (F2.4, Auto slow shutter: Off (1/30 s), Gain: On(High)) 0.1 lx {0.01 footcandle} (F2.4, Auto slow shutter: max. 16/30 s, Gain: On(High))* 1.2 lx {0.12 footcandle} (F2.4, Auto slow shutter: Off (1/30 s), Gain: On(High)) 0.08 lx {0.008 footcandle} (F2.4, Auto slow shutter: max.
  • Page 39 • Lens Focal length: 0.837 mm Maximum aperture ratio: 1:2.4 (Fixed) Angular field of view: Horizontal: 182° Vertical: 176° • Network Network: 10BASE-T/100BASE-TX, RJ-45 connector (female) SW458 10BASE-T/100BASE-TX, M12 connector (male) SW458M Resolution: 2M Panorama [16:9]/ 2M Double Panorama [16:9]: H.264(1) 1920x1080/640x360/320x180 max.30 fps H.264(2) 640x360/320x180 max.30 fps JPEG...
  • Page 40 Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic SD memory card (option): SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...

  • Page 41: Standard Accessories

    Standard accessories Installation Guide (this document) ............1 pc. Warranty card (P model only) .............1 pc. CD-ROM* ..................1 pc. Code label* ..................1 pc. The following parts are used during installation procedures. Camera attachment ................1 pc. Base cover ..............1 pc. SW458 Mount bracket ..............1 pc.
  • Page 44 Panasonic Marketing Europe GmbH Three Panasonic Way, Secaucus, Winsbergring 15, 22525 Hamburg, Germany New Jersey 07094 U.S.A. Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca © Panasonic System Networks Co., Ltd. 2012 Cs0912-1112 PGQX1203YA Printed in China...
