INSTALLATION
W
HERE TO INSTALL THE
1. For domestic water applications, locate where the main water supply pipe enters the home or building. For
light commercial applications such as dishwashers, ice makers, boilers, water heaters etc., attach the
ClearWave™ unit to the water supply line to that particular appliance.
2. Find a suitable location to install the ClearWave™ on the water supply pipe before the piping branches off
to supply water throughout the home.
H C
OW TO INSTALL THE
1. One set of mounting brackets are provided, for mounting the ClearWave™ onto 1/2" to 1-1/2" water pipes
or wall mounted near the selected pipe area. Mount the mounting brackets to the base of the ClearWave™
by using the screws provided. Mount the ClearWave™ onto the pipe with wire ties or to the wall with
appropriate fasteners. (see Figure 1) For pipe mounting, the wall mount tabs should be removed from the
mounting brackets. (see Figure 2)
2. Plug the antenna into each end of the housing. If longer wires are needed, up to 50 feet of 12Ga stranded
wire can be added to the antenna wires with an insulated butt end wire connector or they can be replaced
with 65 feet of 12Ga stranded wire.

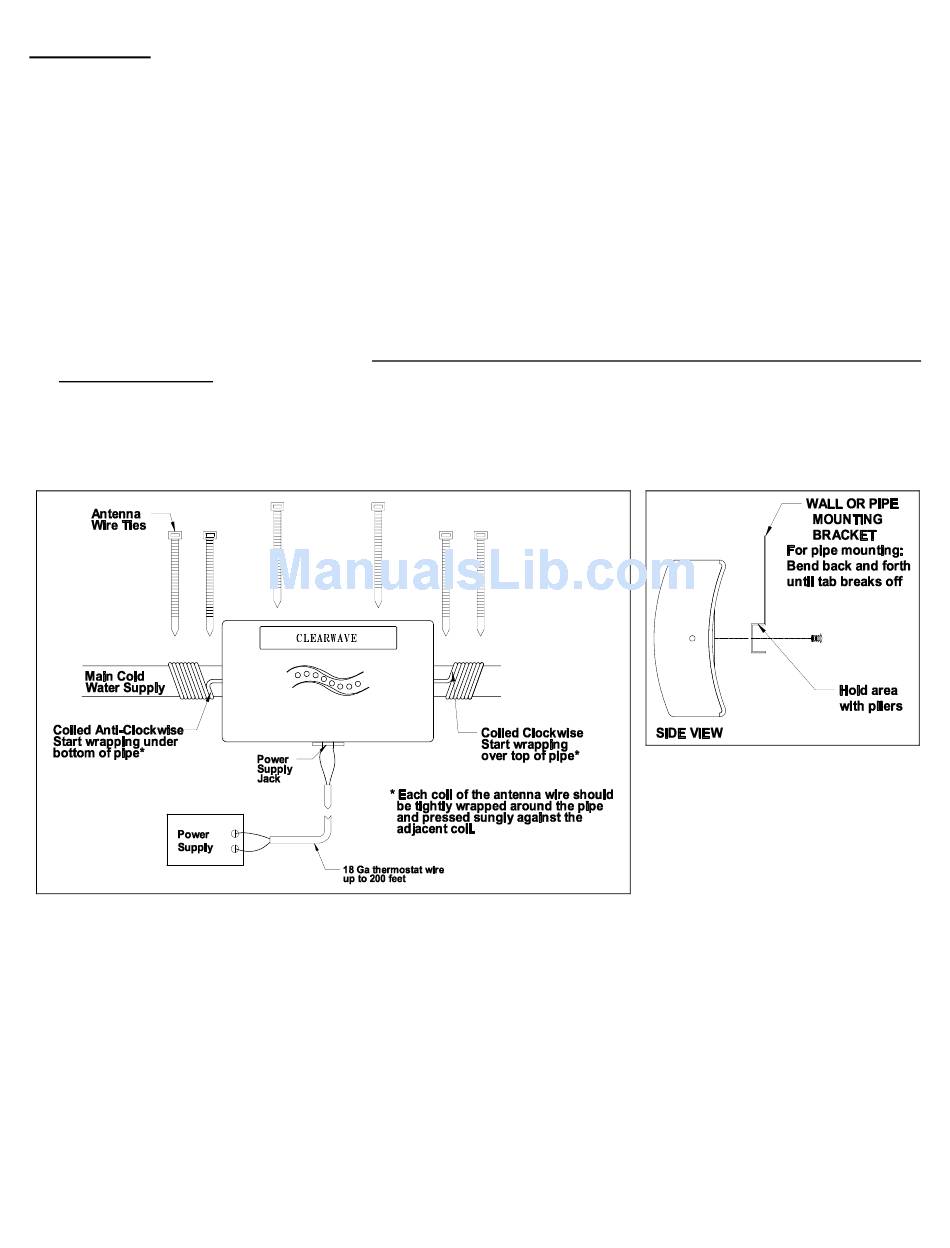

Figure 1
C W ™
LEAR AVE
W ™
LEAR AVE
Page 4
Figure 2
