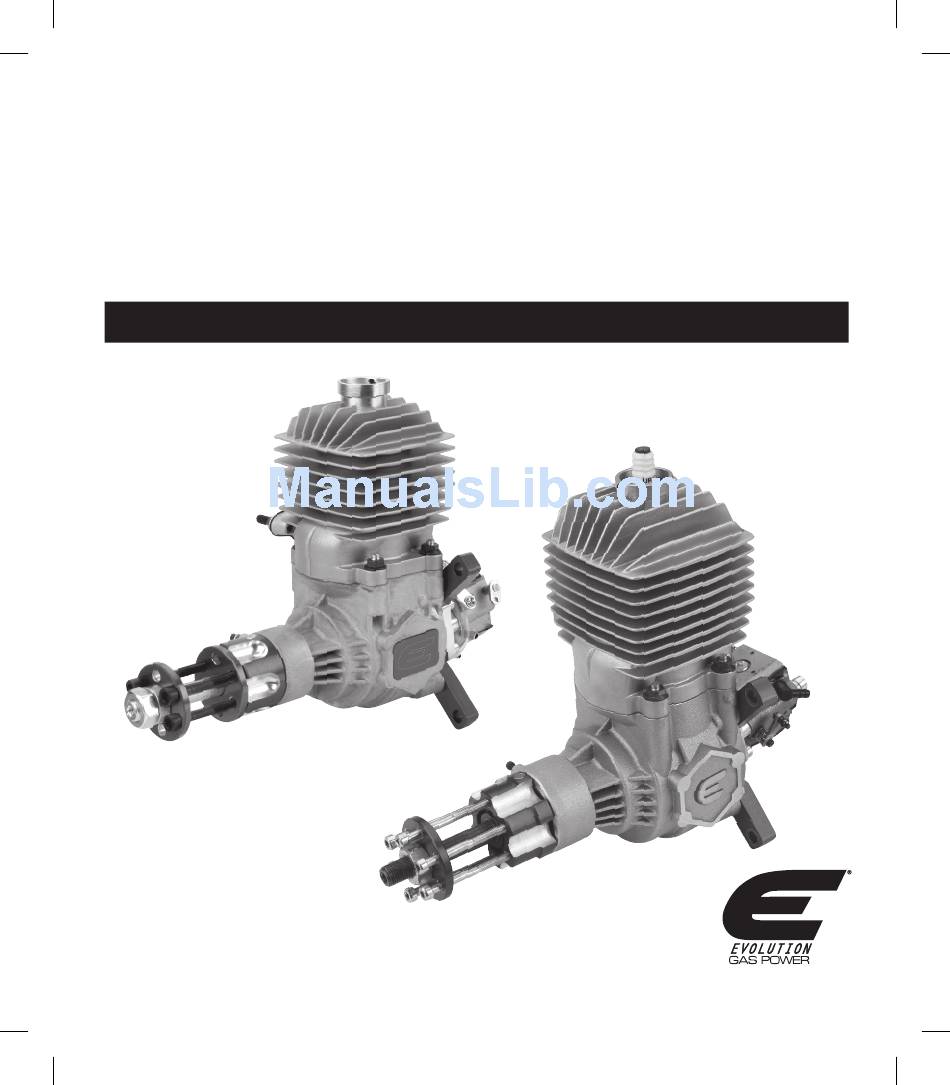

- Page 1 Evolution Engines 45GX2/58GX2 U S ER G U IDE 8103.3_EVO_4558.manual.indd 1 6/16/06 10:23:12 AM...
- Page 2 Before using this engine, please read these instructions carefully. Introduction Congratulations on your purchase of the newest and one of the most technically advanced 2-stroke gas model airplane engines in the world. Whether you are new to the sport of model aviation or an experienced flyer, you will enjoy the features of the new Evolution ®...
-
Page 3: Selecting A Suitable Propeller
Mounting the Engine Fuel for the Evolution Gas Engine Most model airplane designs make provision for an engine The Evolution gas engine has been designed to run on a mixture mount. It is extremely important that the engine mount be of high-quality unleaded gasoline and synthetic oil intended for securely attached to the airplane’s firewall and that the engine racing 2-stroke gasoline engines. -
Page 4: Fuel For The Evolution Gas Engine
Fuel for the Evolution Gas Engine The Evolution ® Gas engine has been designed to run on a mixture of high-quality unleaded gasoline and synthetic oil intended for racing 2-stroke gasoline engines. For the run-in period of the new engine, mix the fuel in a ratio of 30 parts gasoline to 1 part lubricant. After run-in, use a ratio of 40 parts gasoline to 1 part lubricant. -
Page 5: Carburetor Adjustment
Starting the Engine Continued Starting Without Easy Start Feature 3) If the engine does not start, leave the throttle at the high idle 1) When you are ready to start your engine, make sure that the position, turn the ignition off, then on and close the choke ignition is switched off, the choke valve is closed and the valve. -
Page 6: Troubleshooting Guide
Troubleshooting Guide If the engine does not start Mechanical Faults - check and use a new spark plug if needed. If the engine can not be turned over easily (Check the spark: Put the plug into the cable end and by turning the engine you’ll see the necessary spark. - Page 7 5GX Evolution Engine Dimensions 180mm 122mm 71mm 78mm 78mm 6.6mm M10x1mm 55mm 58GX Evolution Engine Dimensions 190mm 140mm 75mm 78mm 78mm 6.6mm M10x1mm 55mm 8103.3_EVO_4558.manual.indd 7 6/16/06 10:23:16 AM...
- Page 8 Evolution Engines Easy Start Ignition System The spark ignition included with your Evolution ® gas engine is a modern generation electronic ignition. There are many useful functions built into the microprocessor of this unit. In addition to the basic ignition functions, the unit has a FAIL-SAFE feature: After 90 seconds of inactivity it automatically switches to an inactive state.
- Page 9 Programming Easy Start Function and Pre-Ignition Curve Ignition Programming cable Ignition battery Transmitter Receiver Receiver battery Servo D isconnect the ignition system’ s C onnect the auto-choke servo to Short Silencer Choke Settings Long Silencer Choke Settings (e.g., Pitts Style) (e.g., Canister or Tuned Pipe) battery.
- Page 10 5GX Part # Description Part # Description Part # Description EVO30040101 Crankcase EVO30040701 Piston EVO30040307 Carburetor Flange Gasket EVO30040202 Front Bearing EVO30040702 Piston Ring EVO30040308 Carburetor Flange Screw Set EVO30040203 Rear Bearing EVO30040801 Piston Pin EVO30041301 Reed Valve Case EVO30040301 Rear Cover EVO30040802 Piston Pin Retainer...
- Page 11 58GX Part # Description Part # Description Part # Description EVO30010101 Crankcase EVO30010407 Exhaust Flange Gasket EVO30010307 Carburetor Flange Gasket EVO30010202 Front Bearing EVO30010701 Piston EVO30010308 Carburetor Flange Screw Set EVO30010203 Rear Bearing EVO30010702 Piston Ring EVO30011301 Reed Valve Case EVO30010204 Packing EVO30010801...
- Page 12 © 2006 Manufactured exclusively for Horizon Hobby, Inc. 877-504-0233 www.horizonhobby.com 8103.3 8103.3_EVO_4558.manual.indd 12 6/16/06 10:23:11 AM...
