EVOLUTION MK-7 MIDI KEYBOARD MANUAL

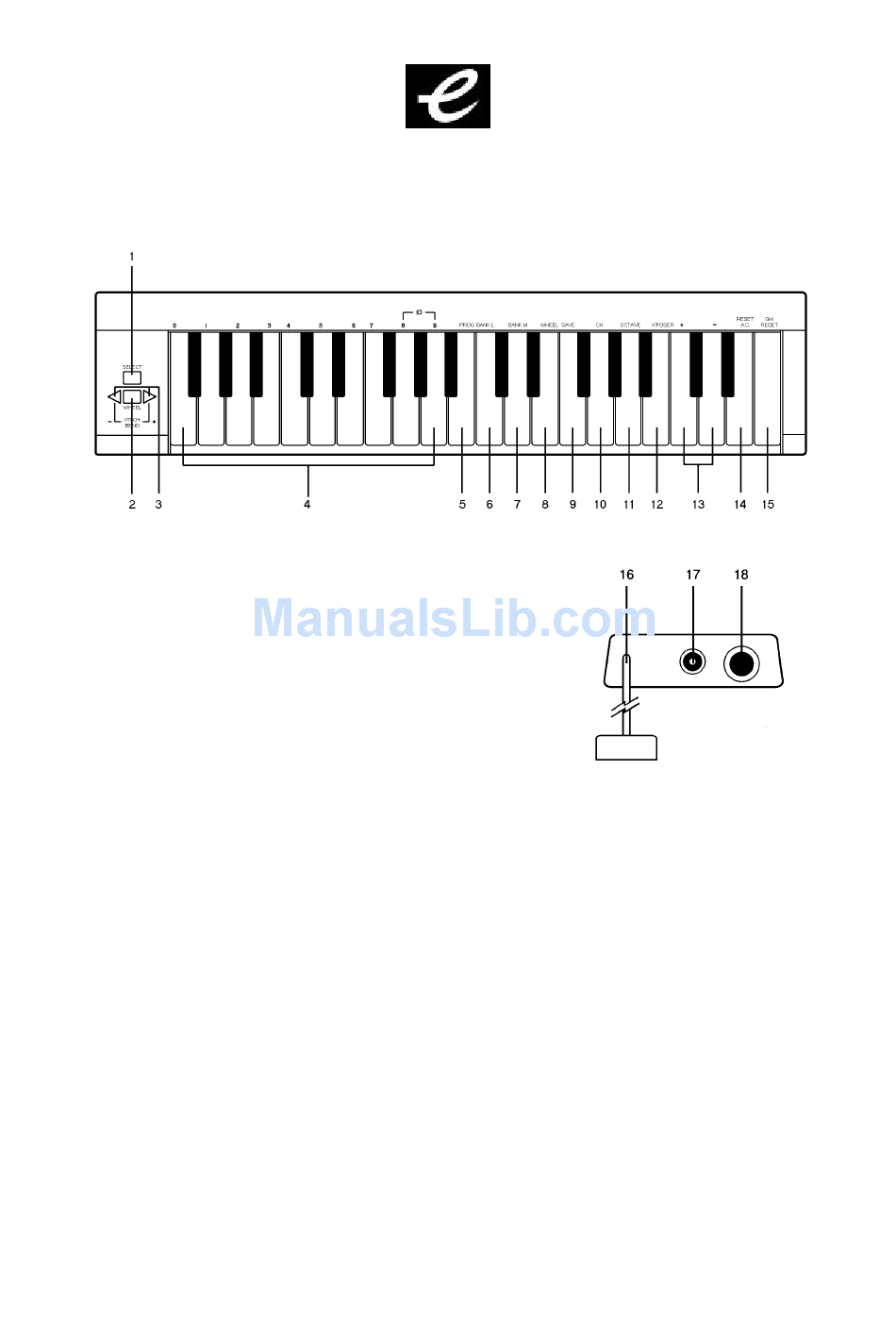

1.
General Guide
1.
WHEEL button
2.
SELECT button
3.
PITCH BEND +/- switches
4.
Numeric keys
5.
PROGRAM key
6.
BANK LSB key
7.
BANK MSB key
8.
WHEEL key
9.
SAVE key
10.
CHANNEL key
11.
OCTAVE key
12.
TRANSPOSE key
13.
+/- keys
14.
RESET-AC key
15.
GM-RESET
16.
MIDI OUT Connector
For connecting directly to PC sound card game port
17.
DC Jack
For connecting to AC/DC adapter. DC output 9V-1 2V, 1 50mA, centre positive.
18.
POWER switch
2.
Power Supply
2-1
DC Power - Batteries (not included)
This unit is powered by 6 "AA" (UM-3) size batteries. Weak batteries will result in poor performance. When
the power is getting weaker, replace the worn out batteries as follows:
1.
Remove the battery compartment cover and take out the batteries.
2.
Insert new batteries and make sure that the polarity is correct.
3.
It is advisable to replace all 6 batteries at the same time and not to mix batteries. Alkaline batteries are
recommended for maximum performance.
2-2
AC Power
You can also use AC adapter with the following specification: 9-12V DC output, 150mA, centre positive.
Note:
Do not leave the adapter plugged in for long periods of time if the unit is not in use.
3.
Preparation
This unit's MIDI OUT connector is specially for connecting to personal computers.
KEYBOARD
BACK PANEL
Advertisement
Table of Contents
Related Manuals for Evolution Technologies MK-7
Summary of Contents for Evolution Technologies MK-7
- Page 1 EVOLUTION MK-7 MIDI KEYBOARD MANUAL General Guide KEYBOARD BACK PANEL WHEEL button SELECT button PITCH BEND +/- switches Numeric keys PROGRAM key BANK LSB key BANK MSB key WHEEL key SAVE key CHANNEL key OCTAVE key TRANSPOSE key +/- keys RESET-AC key GM-RESET MIDI OUT Connector...
- Page 2 Using the connector(16) directly plug into PC sound card game port. Turn on the POWER switch (18). Turn all other equipment’s power on. Setting the MIDI TRANSMIT Channel There are 16 MIDI transmit channels available. The value is 1 to 16. Set the unit’s MIDI channel. The unit sends all MIDI messages on this MIDI channel.
- Page 3 Press + and - keys simultaneously to reset the pitch to default level. Release the SELECT button. Sending a PROGRAM CHANGE number This function allows send any MIDI PROGRAM CHANGE 0-127. Hold down SELECT button (2) and ... Press PROGRAM key (5), Press the numeric keys (4) to set the PROGRAM CHANGE number to be sent.
- Page 4 0,32 Bank Select Modulation Breath Control Control Data Entry Change Volume Panpot Hold 1 Program 0-127 Change True Number *********************** System Exclusive Song Position Common Song Select Tune Local ON/OFF Messages All Notes ON/OFF Active Sense Reset Notes O/X can be set to O or X Evolution Website: http://www.evolution.co.uk/ For technical support, email support@evolution.co.uk...
