Altec Lansing DX1012-8A Specifications

P
R O F E S S I O N A l

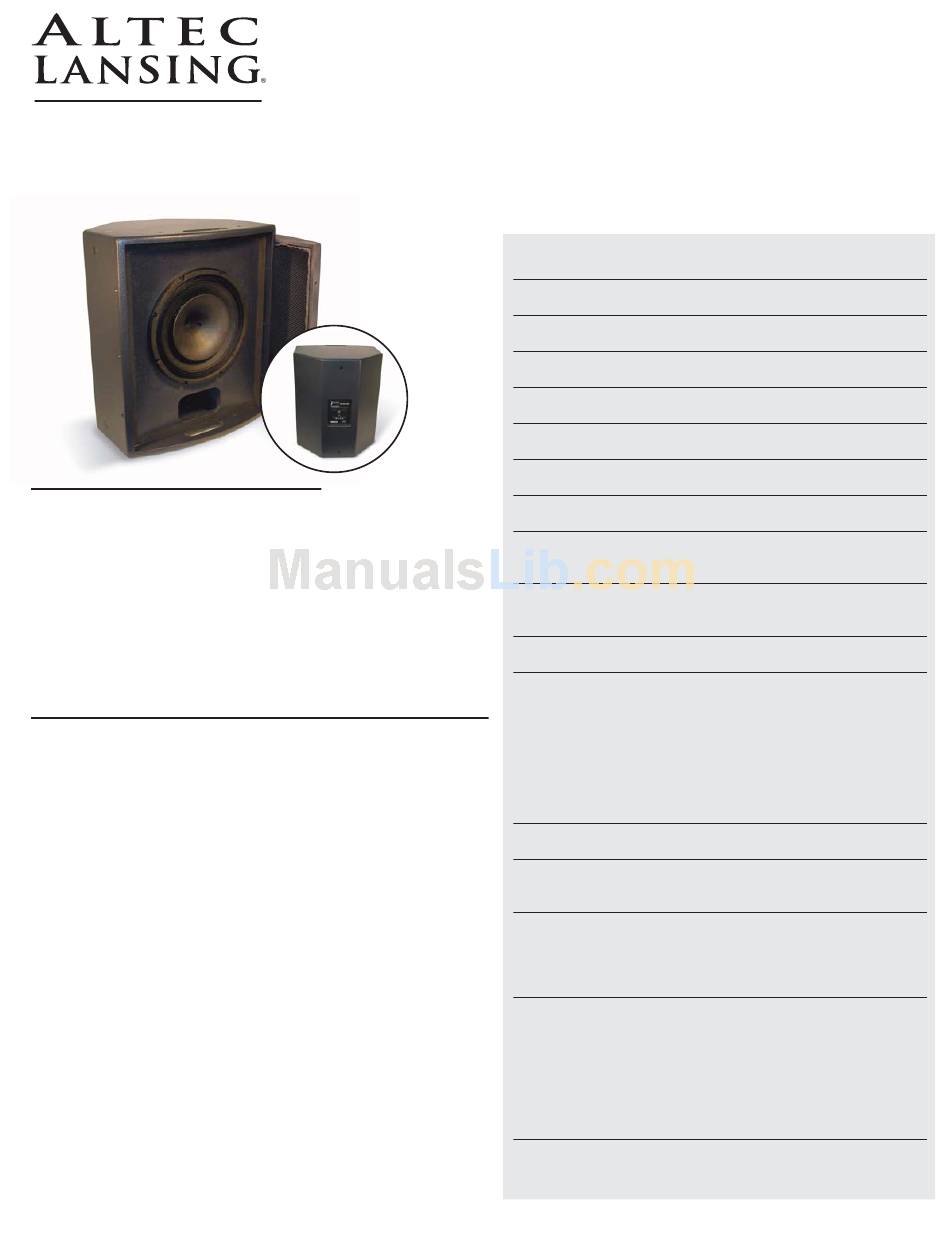

DX1012-8A
FEATURES - THE ALTEC LANSING DIFFERENCE
• Point-source single magnet structure Duplex
• Large Format HF Driver (1.4" exit, 2.8" diaphragm)
• 90˚ conical high frequency horn
• 12"/300 mm direct radiator low frequency speaker
• Passive crossover network with Neutrik Speak-On
connectors
• 13-Ply Paintable Poplar Enclosure offered in Charcoal Gray or White
with contrasting cloth-covered metal grille
• Eyebolt Hanging Hardware included
• Neutral grille cloth included that can be dyed to match any décor
GENERAL PRODUCT DESCRIPTION
Houses of Worship and Auditoriums require speaker systems that can
accurately reproduce the human voice and not miss a beat when the task
is live or recorded high fidelity music. Standard two-way speaker systems
are adequate, but suffer from cancellations and interference from
adjacent HF and LF sources. Altec Lansing's solution is a Duplex® single
magnet, point-source component that minimizes these cancellations
without sacrificing speech intelligibility or high fidelity, full-range music
reproduction.
The DX1012-8A uses a unique Duplex
large format high frequency driver and a 12"/300 mm low frequency
speaker & voice coil mounted to the front of the same magnet structure.
This point-source design means that all of the acoustic energy is
generated in a 1.5" space. The high frequency driver is mated to a 90˚
conical high frequency horn, insuring smooth coverage across the rated
bandwidth.
A 13-ply poplar paintable cabinet has internal reinforced L-brackets
presenting multiple suspension options (horizontal and vertical
orientation). Three forged eyebolts are included with each speaker. The
model DX1012-8A-G is a charcoal gray painted cabinet with contrasting
light gray cloth covered metal grille.
The DX1012-8A-W is a white cabinet with contrasting beige cloth
covered metal grille.
Should you need to paint the cabinet to match the décor of the facility, a
piece of neutral grille cloth is included with each speaker. This grille cloth
can be dyed to match the speaker cabinet color, or to integrate the
frontal area of the cabinet into the architectural space.
Where extended low frequency performance is required in Auditorium
and House of Worship systems, the Altec Lansing Professional model
LF115-8A single 15" flyable subwoofer provides an excellent complement
to the DX1012-8A.
1000 W. Wilshire Blvd., Suite 362 • Oklahoma City, Oklahoma 73116 • Phone: 1-405-848-3108 • Fax: 1-405-848-3217 • www.altecpro.com
® design
and barrier strip
®
® ENGINE component featuring a
FREQUENCY RESPONSE
1, 2
70 Hz - 16 kHz (±3 dB)
USABLE LOW FREQUENCY LIMIT (-10 dB)
45 Hz
SENSITIVITY
3
97 dB SPL
POWER HANDLING
4
300 W continuous; 1,200 W peak
MAXIMUM OUTPUT (1 m)
5
122 dB SPL continuous; 128 dB SPL peak
COVERAGE ANGLES
6
90 o (horizontal) x 90 o (vertical)
DIRECTIVITY FACTOR, Q
6
11.11
DIRECTIVITY INDEX, Di
6
11.46 dB
TRANSDUCER COMPONENTS
LF: 1x 12 in. Woofer in a Vented Enclosure
HF: 1x 1.4 in. Exit Compression Driver
IMPEDANCE 7
Nominal: 8.0 Ω
Minimum: 6.1 Ω at 190 Hz
CROSSOVER FREQUENCY
Passive LF - HF: 1,500 Hz
HARMONIC DISTORTION
8
1% rated power
2nd Harmonic 0.38%
3rd Harmonic 0.48%
THD 0.81%
10% rated power
2nd Harmonic 1.14%
3rd Harmonic 0.78%
THD 1.57%
INPUT CONNECTIONS
1x 4 position barrier strip and 2x NL4
ENCLOSURE MATERIALS & FINISH
18 mm, 13 ply Poplar Plywood Finished with
Catalyzed Polyurethane
SUSPENSION SYSTEM
9
Working Load Limit (maximum weight applied to uppermost
mounting point): 250 lbs. (113.6 kg)
(12) 3/8 in.-16 Threaded Mounting Suspension Points (3 each
top & bottom and 2 each sides & back)
DIMENSIONS
Net
22.00 in. (H) x 18.75 in. (W) x 15.00 in. (D) x 7.25 in. (W rear)
559 mm (H) x 476 mm (W) x 381 mm (D) x 184 mm (W rear)
Shipping
25.5 in. (H) x 23 in. (W) x 20 in. (D)
648 mm (H) x 584 mm (W) x 508 mm (D)
WEIGHT
Net 55 lbs. (25.0 kg)
Shipping 60 lbs. (27.3 kg)
1, 2
