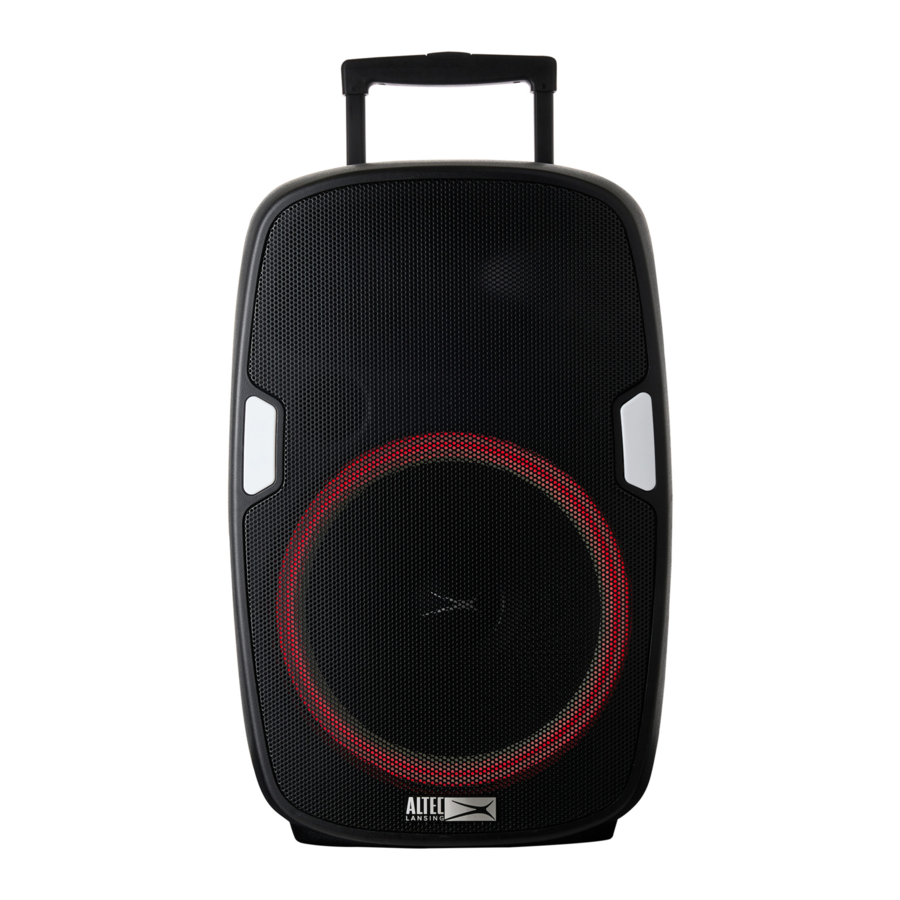

Altec Lansing SoundRover 180 IMT7002 - Party Speaker Manual

IN THE BOX

INPUT/ OUTPUT PORTS

DEVICE CONTROLS

AUDIO MODES

Bluetooth Pairing

Go to the Bluetooth page in Settings. Make sure Bluetooth is on before connecting to the available device "AL SoundRover".
If the speaker does not automatically go into pairing after turning it on press the BT/Pair button.

FM Radio

1. Press and hold the Play/Pause button to perform a scan of the FM band. The SoundRover will store the strongest stations as presets.
2. Press the Next/Scan and Previous/Scan buttons to move a preset.
3. Press and hold the Next/Scan and Previous/Scan buttons to scan to the next strongest radio station.


LIGHT MODE

Press the Light Mode button to toggle through the di erent modes. Press and hold the button for three seconds to turn the side LEDs ON/OFF.
Mode 1: Multicolor swirl
Mode 2: Back and forth
Mode 3: Thin swirl
Mode 4: Slow multicolor ring
Mode 5: Fast multicolor ring
Mode 6: Multicolor ring
Mode 7: Slow multicolor, growing ring
Mode 8: Fast multicolor, growing ring

TRUE WIRELESS

The SoundRover has the True Wireless function. If you own two SoundRovers, follow the directions below to pair them together.

1. Turn the first speaker on and pair it to a Bluetooth compatible device.
2. Press and hold the Bluetooth/Pair button on the first speaker for two seconds. 'HOST' will appear on the display screen indicating it is the main speaker.

3. Turn on the second speaker. Press the Bluetooth/Pair button and 'BT' will appear on the display screen. When this appears the first speaker will automatically connect to the second speaker.

4. To disconnect the True Wireless function press the Bluetooth button on either speaker.

MICROPHONE

Connect the included microphone into the Microphone jack to sing along to music.
Adjust the volume of the microphone by turning the the Mic Level knob.

SAFETY PRECAUTIONS

SPECIFICATIONS

Bluetooth Spec: V4.2
Bluetooth Range: up to 33 Feet
Power Supply: AC100-240V
Battery Type: 11.1V, 7000 mAh Lithium Ion Battery
Output: 60 W
Charge Time: Approximately 5 hours
Play Time: Approximately 6 Hours

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Altec Lansing SoundRover 180 IMT7002 - Party Speaker Manual
