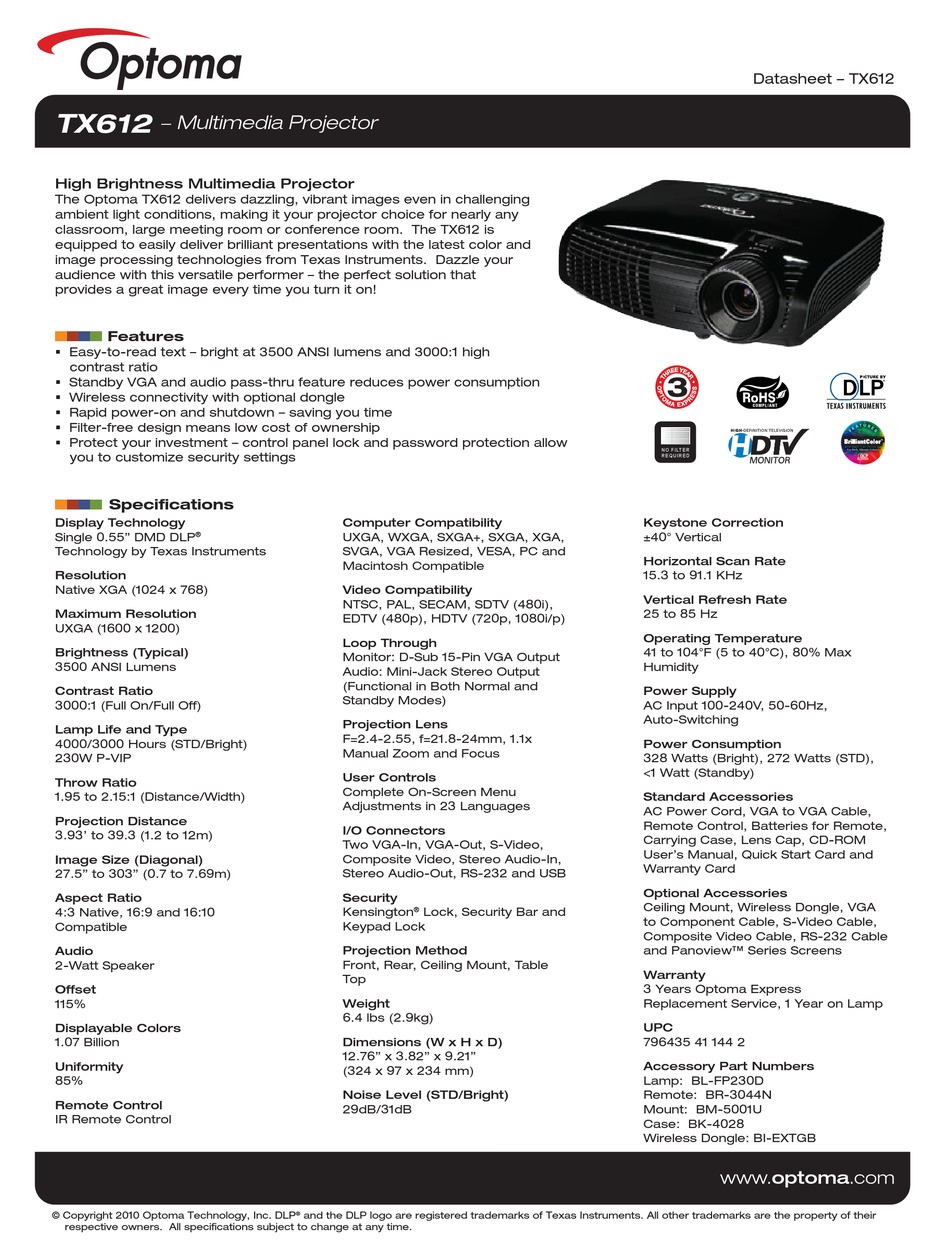

Optoma TX612 Datasheet

TX612
− Multimedia Projector
High Brightness Multimedia Projector
The Optoma TX612 delivers dazzling, vibrant images even in challenging
ambient light conditions, making it your projector choice for nearly any
classroom, large meeting room or conference room. The TX612 is
equipped to easily deliver brilliant presentations with the latest color and
image processing technologies from Texas Instruments. Dazzle your
audience with this versatile performer – the perfect solution that
provides a great image every time you turn it on!
Features
 Easy-to-read text – bright at 3500 ANSI lumens and 3000:1 high
contrast ratio
 Standby VGA and audio pass-thru feature reduces power consumption
 Wireless connectivity with optional dongle
 Rapid power-on and shutdown – saving you time
 Filter-free design means low cost of ownership
 Protect your investment – control panel lock and password protection allow
you to customize security settings

Specifications

Display Technology
Single 0.55" DMD DLP
®
Technology by Texas Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
3500 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
230W P-VIP
Throw Ratio
1.95 to 2.15:1 (Distance/Width)
Projection Distance
3.93' to 39.3 (1.2 to 12m)
Image Size (Diagonal)
27.5" to 303" (0.7 to 7.69m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Audio
2-Watt Speaker
Offset
115%
Displayable Colors
1.07 Billion
Uniformity
85%
Remote Control
IR Remote Control
© Copyright 2010 Optoma Technology, Inc. DLP
respective owners. All specifications subject to change at any time.
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
Loop Through
Monitor: D-Sub 15-Pin VGA Output
Audio: Mini-Jack Stereo Output
(Functional in Both Normal and
Standby Modes)
Projection Lens
F=2.4-2.55, f=21.8-24mm, 1.1x
Manual Zoom and Focus
User Controls
Complete On-Screen Menu
Adjustments in 23 Languages
I/O Connectors
Two VGA-In, VGA-Out, S-Video,
Composite Video, Stereo Audio-In,
Stereo Audio-Out, RS-232 and USB
Security
Kensington Lock, Security Bar and
®
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table
Top
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76" x 3.82" x 9.21"
(324 x 97 x 234 mm)
Noise Level (STD/Bright)
29dB/31dB
® and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
Datasheet – TX612
NO FILTER
REQUIRED
Keystone Correction
±40° Vertical
Horizontal Scan Rate
15.3 to 91.1 KHz
Vertical Refresh Rate
25 to 85 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 80% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
328 Watts (Bright), 272 Watts (STD),
<1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Carrying Case, Lens Cap, CD-ROM
User's Manual, Quick Start Card and
Warranty Card
Optional Accessories
Ceiling Mount, Wireless Dongle, VGA
to Component Cable, S-Video Cable,
Composite Video Cable, RS-232 Cable
and Panoview™ Series Screens
Warranty
3 Years Optoma Express
Replacement Service, 1 Year on Lamp
UPC
796435 41 144 2
Accessory Part Numbers
Lamp: BL-FP230D
Remote: BR-3044N
Mount: BM-5001U
Case: BK-4028
Wireless Dongle: BI-EXTGB
www.optoma.com
