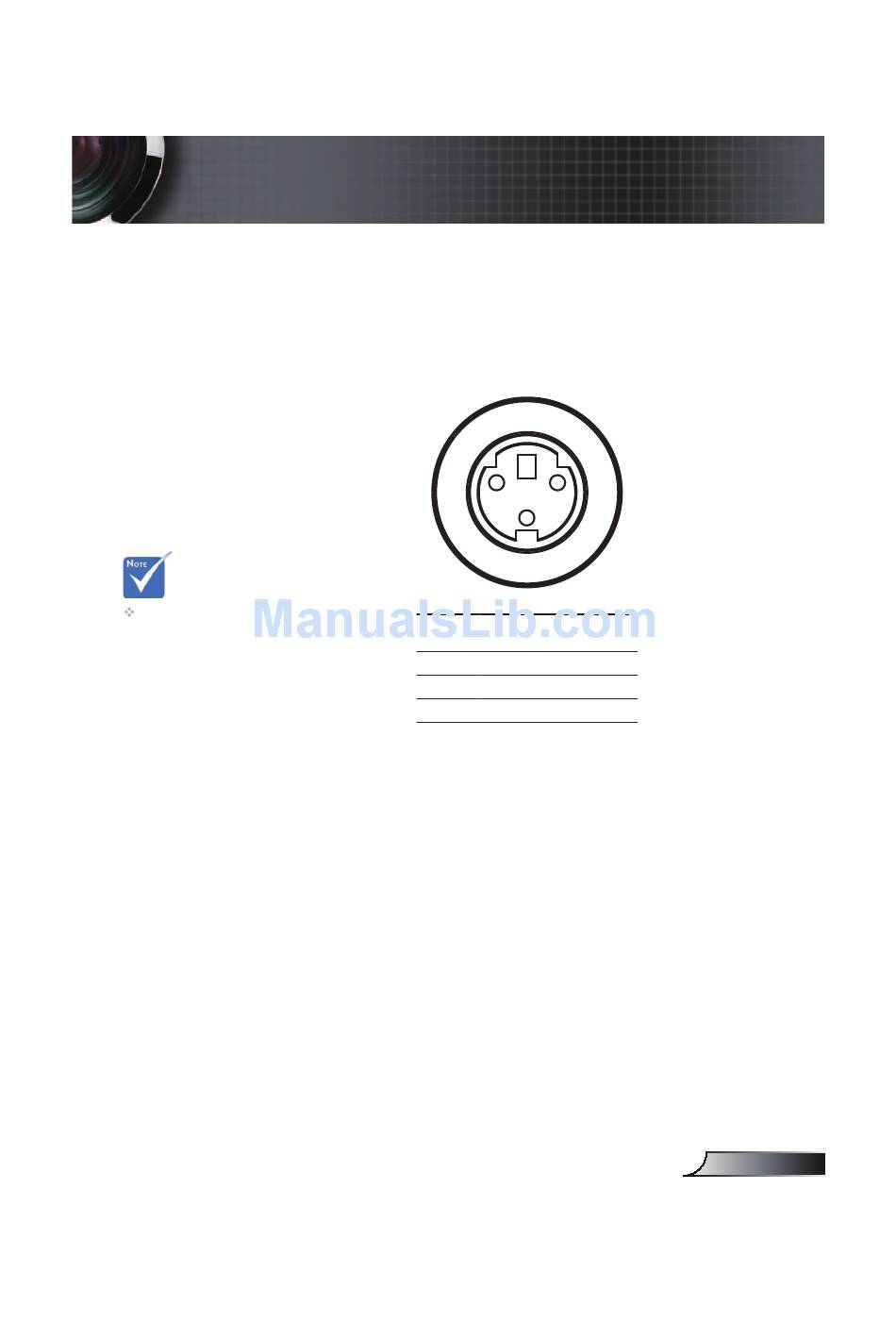

RS232 Commands and Protocol
Function List
RS232 Pin Assignments
RS232 shell is
grounded.
Appendices
1
2
3
Spec.
Pin no.
(from projector side)
1
TXD
2
RXD
3
GND
57
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the TW610ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optoma TW610ST

Summary of Contents for Optoma TW610ST

  • Page 1: Rs232 Commands And Protocol Function List

    Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments RS232 shell is Spec. grounded. Pin no. (from projector side) English...

  • Page 2: Rs232 Protocol Function List

    Appendices RS232 Protocol Function List XX=00-99, projector's ID, Baud Rate : 9600 XX=00 is for all projectors Data Bits: 8 Parity: None 1. There is a <CR> after Stop Bits: 1 all ASCII commands. Flow Control : None 2. 0D is the HEX code UART16550 FIFO: Disable for <CR>...
  • Page 3 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX39 5 7E 30 30 33 39 20 35 0D Input Source VGA1 ~XX39 6 7E 30 30 33 39 20 35 0D VGA2 ~XX39 9 7E 30 30 33 39 20 39 0D S-Video ~XX39 10 7E 30 30 33 39 20 31 30 0D Video ~XX39 1 7E 30 30 33 39 20 31 0D...
  • Page 4 = 0 (a=30) ~ 10 (a=31 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX83 1 7E 30 30 38 33 20 31 0D...
  • Page 5 Appendices --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SEND from projector automatically --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 232 ASCII Code HEX Code Function Projector Return Description --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- System status INFOn n : 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/ Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- READ from projector ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 232 ASCII Code HEX Code Function Projector Return...
