Summary of Contents for BenQ MX722
- Page 1 MX722 Digital Projector User Manual...
-
Page 2: Table Of Contents
Table of contents Important safety Using the test pattern......34 Using the teaching templates ....35 instructions ....3 Shutting down the projector ....36 Introduction....7 Direct power off........36 Menu operation ........37 Projector features........7 Shipping contents ........8 Maintenance .... -
Page 3: Important Safety Instructions
Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. Safety Instructions Please read this manual before In some countries, the line voltage is... - Page 4 Safety Instructions (Continued) The lamp becomes extremely hot Do not place this product on an during operation. Allow the projector unstable cart, stand, or table. The to cool for approximately 45 minutes product may fall, sustaining serious prior to removing the lamp assembly damage.
- Page 5 Safety Instructions (Continued) Do not place this projector in any of Do not block the ventilation holes. the following environments. - Do not place this projector on a blanket, bedding or any other soft - Space that is poorly ventilated or surface.
- Page 6 If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.
-
Page 7: Introduction
3D Function supported Various 3D formats make the 3D function more flexible. By presenting the depth of the images, you can wear BenQ 3D glassed to enjoy the 3D movies, videos and sporting events in a more realistic way. •... -
Page 8: Shipping Contents
Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories The supplied accessories will be suitable for your region, and may differ from those illustrated. *The warranty card is only supplied in some specific regions. -

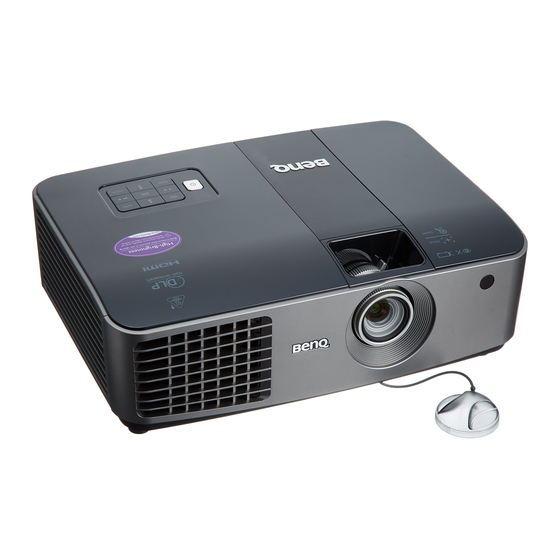

Page 9: Projector Exterior View
Projector exterior view External control panel Front/upper side (See "Controls and functions" on page for details.) Lamp cover Vent (heated air exhaust) Lens cap Focus and Zoom rings Vent (cool air intake) Front IR remote sensor Projection lens RJ45 LAN input jack USB port RS232 control port HDMI-input port... -
Page 10: Controls And Functions
Controls and functions Projector Focus ring 10. LAMP indicator light Adjusts the focus of the projected image. Indicates the status of the lamp. Lights up or flashes when the lamp has developed a Zoom ring problem. Adjusts the size of the image. 11. -
Page 11: Remote Control
Remote control ZOOM+/ZOOM- Magnifies or reduces the projected picture Toggles the projector between standby size. mode and on. PAGE +/PAGE - Source selection buttons Operate your display software program (COMPUTER 1, COMPUTER 2, (on a connected PC) which responds to VIDEO, S-VIDEO, HDMI page up/down commands (like Microsoft Selects an input source for display. -
Page 12: Remote Control Effective Range
22. Numeric buttons Right/ Enters numbers in network settings. Increases the projector volume. Notes: When the On-Screen Display (OSD) menu • Numeric buttons 1, 2, 3, 4 cannot be pressed when is activated, the #4, #6, and #14 keys are asked to enter password. -
Page 13: Replacing The Remote Control Batteries
Replacing the remote control batteries To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off. Remove any existing batteries (if necessary) and install two AAA batteries observing the battery polarities as indicated in the base of the battery compartment. -
Page 14: Positioning Your Projector
Note that a special rear projection screen portability. and the BenQ Projector Ceiling Mount Kit are required for this installation location. Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Installation menu after you turn the projector on. -
Page 15: Obtaining A Preferred Projected Image Size
All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. -
Page 16: Connection
Connection When connecting a signal source to the projector, be sure to: Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. • In the connections shown below, some cables may not be included with the projector (see "Shipping contents"... -
Page 17: Connecting Video Source Devices
LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination. • The D-Sub output only works when an appropriate D-Sub input is made to the COMPUTER-1 jack. •... - Page 18 The table below describes the connection methods for different devices, and where the sound is from. Device PC/Component Video Video/S-Video Microphone AUDIO-IN-1/AUDIO- Audio input port AUDIO (L/R) IN-2 • MIC The projector can play AUDIO-IN-1/AUDIO- • AUDIO (L/R)/MIC AUDIO (L/R)/MIC the sound from...
-
Page 19: Operation
Operation Starting up the projector Plug the power cord into the projector and into a power outlet. Turn on the power outlet switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied. Please use the original accessories (e.g. -
Page 20: Adjusting The Projected Image
Adjusting the projected image Adjusting the projection angle To adjust the projector: Screw the adjuster feet to fine-tune the horizontal angle. To retract the feet, screw the adjuster feet in a reverse direction. If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. -
Page 21: Correcting Keystone
Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen. To correct this, follow ONE of these steps: • Using the remote control Press on the projector or remote control... -
Page 22: Using The Menus
Position Menu Settings Phase Operation Settings H. Size Remote Receiver Front+Top Digital Zoom Panel Key Lock Background Color BenQ Teaching Template Splash Screen BenQ Analog RGB MENU Exit Analog RGB MENU Exit Press to select a to highlight the SYSTEM preferred language and press SETUP: Basic menu. -
Page 23: Securing The Projector
Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the rear side of the projector. See item 22 on page for details. -
Page 24: If You Forget The Password
BenQ Customer Center. Write down the number and turn off your projector. Recall Code: Seek help from the local BenQ service 255 255 255 255 center to decode the number. You may be required to provide proof of purchase MENU... -
Page 25: Switching Input Signal
Disabling the password function To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Change Security Settings menu after opening the OSD menu system. Press MODE/ENTER. The message “INPUT PASSWORD” displays. Enter the current password. i. -
Page 26: Magnifying And Searching For Details
To do this: Press MENU/EXIT and then press until the SOURCE menu is highlighted. Press to highlight Color Space Conversion and press to select a suitable color space. This function is only available when the HDMI-input port is in use. Magnifying and searching for details If you need to find the details on the projected picture, magnify the picture. - Page 27 About the aspect ratio • In the pictures below, the black portions are inactive areas and the white portions are active areas. • OSD menus can be displayed on those unused black areas. 16:9: Scales an image so that it is Auto Scales an image proportionally to fit displayed in the center of the...
-
Page 28: Optimizing The Image
Optimizing the image Using Wall Color In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures. To use this function, go to the DISPLAY >... -
Page 29: Adjusting Brightness
Press to select a menu item to be changed and adjust the value with . See "Fine-tuning the image quality in user modes" below for details. Fine-tuning the image quality in user modes According to the detected signal type and selected picture mode, some of the below functions may not be available. -
Page 30: Setting A Preferred Color Temperature
Setting a preferred color temperature To set a preferred color temperature: Highlight Color Temperature and select Warm, Normal or Cool by pressing on the projector or remote control. Press to highlight Color Temperature Fine Tuning and press MODE/ ENTER. The Color Temperature Fine Tuning page displays. Press to highlight the item you want to change and adjust the values by pressing... -
Page 31: Setting The Presentation Timer
Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red in the projected Yellow GREEN picture will be selected. Increasing its range will include red close to yellow and red close to magenta. -
Page 32: Remote Paging Operations
Press to highlight Timer Position and set the timer position by pressing Top-Left Bottom-Left Top-Right Bottom-Right Press to highlight Timer Counting Direction and select your desired counting direction by pressing Selection Description Count Up Increases from 0 to the preset time. Count Down Decreases from the preset time to 0. -
Page 33: Hiding The Image
Hiding the image In order to draw the audience's full attention to the presenter, you can use BLANK on the projector or ECO BLANK on the remote control to hide the screen image. The word “BLANK” appears in the corner of the screen while the image is hidden. When this function is activated with an audio input connected, the audio can still be heard. -
Page 34: Adjusting The Sound
Adjusting the sound The sound adjustments made as below will have an effect on the projector speaker(s). Be sure you have made a correct connection to the projector audio input. See "Connection" on page 16 for how the audio input is connected. Muting the sound To temporarily turn off the sound: Press MENU/EXIT and then press... -
Page 35: Using The Teaching Templates
Using the teaching templates The projector provides several preset patterns for various teaching purposes. To activate the pattern: Open the OSD menu and go to the DISPLAY > Teaching Template menu and press to select Blackboard or Whiteboard. Press to choose the pattern you need. Press MODE/ENTER to activate the pattern. -
Page 36: Shutting Down The Projector
Shutting down the projector Press POWER or OFF and a confirmation message will display prompting you. If you don't respond in a few seconds, the message will disappear. Press POWER or OFF a second time. The POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector. -
Page 37: Menu Operation
Menu operation Menu system Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using. Main menu Sub-menu Options Off/Light Yellow/Pink/Light Green/Blue/ Wall Color Blackboard Aspect Ratio Auto/Real/4:3/16:9/16:10 Keystone Position Phase H. -
Page 38: System Setup
Quick Cooling On/Off Settings Instant Restart On/Off Disable/5 min/10 min/15 min/20 min/25 Blank Timer min/30 min Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/ Sleep Timer 12 hr Remote Receiver Front+Top/Front/Top Panel Key On/Off Lock Background Color BenQ/Black/Blue/Purple Splash Screen BenQ/Black/Blue Operation... - Page 39 Main menu Sub-menu Options High Altitude Mode On/Off Mute On/Off Volume Audio Settings Microphone Volume Power On/Off On/Off Ring Tone Lamp Mode Normal/Economic Lamp Settings Reset Lamp Timer Equivalent Lamp Change Password Security Power On Lock Change Security Settings Settings Web Control Lock 2400/4800/9600/14400/19200/ Baud Rate...
- Page 40 • Source • Picture Mode • Lamp Mode • Resolution INFORMA Current System Status • 3D Format TION • Color System • Equivalent Lamp • Firmware Version Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.
-
Page 41: Description Of Each Menu
Description of each menu Function Description Corrects the projected picture’s color when the projection surface is Wall Color not white. See "Using Wall Color" on page 28 for details. There are several options to set the image's aspect ratio depending on Aspect Ratio your input signal source. -
Page 42: Function Description
Function Description Teaching "Using the teaching templates" on page 35 for details. Template Pre-defined picture modes are provided so you can optimize your Picture Mode projector image set-up to suit your program type. See "Selecting a picture mode" on page 28 for details. - Page 43 Function Description Quick Auto "Switching input signal" on page 25 for details. Search Color Space "Changing Color Space" on page 25 for details. Conversion Presentation Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 31 for details.
- Page 44 Function Description Direct Power On Allows the projector to turn on automatically once the power is fed through the power cord. Signal Power On Sets whether to turn the projector directly on without pressing POWER or ON when the projector is in standby mode and the signal is feed through the VGA cable.
- Page 45 Function Description High A mode for operation in high altitude areas. See "Operating in a high Altitude altitude environment" on page 33 for details. Mode Audio "Adjusting the sound" on page 34 for details. Settings Lamp Mode "Setting Lamp Mode as Economic" on page 49 for details.
-
Page 46: Wired Lan
"Connection" on page 16 for how to make the connection. Enabling this function slightly increases the standby power consumption. Wired LAN Projection Log In Code BenQ Network Projector Operation Guide for details. Network AMX Device Discovery Settings When AMX Device Discovery is On, the projector can be detected by AMX controller. - Page 47 Function Description Source Shows the current signal source. Picture Mode Shows the selected mode in the PICTURE menu. Lamp Mode Shows the current lamp mode. Resolution Current Shows the native resolution of the input signal. System 3D Format Status Shows the current 3D mode. Color System Shows input system format: NTSC, PAL, SECAM, YUV, or RGB.
-
Page 48: Maintenance
Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens and case clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. -
Page 49: Lamp Information
Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. "Setting Lamp Mode as Economic" below for more information on Economic mode. To obtain the lamp hour information: Press MENU/EXIT and then press to highlight the SYSTEM SETUP:... -
Page 50: Timing Of Replacing The Lamp
49), you may continue to operate the Lamp>XXXX Hours projector until the next hour lamp warning appears. Order a new lamp at lamp.benq.com Press MODE/ENTER to dismiss the message. It is strongly recommended that you replace the Notice lamp at this age. The lamp is a consumable item. -
Page 51: Replacing The Lamp
Replacing the lamp • To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. - Page 52 Use the handle to slowly pull the lamp out of the projector. • Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. • Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
- Page 53 Resetting the lamp timer After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Highlight Reset Lamp Timer. A warning message is displayed asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER.
- Page 54 Indicators Light Status & Description Power events Stand-by mode. Orange Green Powering up. Flashing Normal operation. Green Orange Normal power-down cooling Flashing Download CW start fail Green Scaler shutdown fail (data board) Red Flashing Scaler reset fail (video projector only) LAN download fail Green LAN download processing...
-
Page 55: Troubleshooting
Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the There is no power from the power cord. power outlet. If the power outlet has a switch, make sure that it is switched on. -
Page 56: Specifications
Specifications Projector specifications All specifications are subject to change without notice. Optical Input terminals Resolution Computer input 1024 x 768 XGA RGB input D-Sub 15-pin (female) x 2 Display system 1-CHIP DMD Video signal input S-VIDEO Lens F/Number Mini DIN 4-pin port x 1 F = 2.59-2.87 VIDEO Lamp... -
Page 57: Dimensions
Dimensions 120.5 50.5 Unit: mm Ceiling mount installation Ceiling Mount screw: M4 242.04 (Max L = 25 mm; Min L = 20 mm) 71.46 125.99 130.93 176.29 254.29 338.99 Unit: mm Specifications... -
Page 58: Timing Chart
119.989 97.551 115.5 (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 1280 x 768 1280 x 768_60* 59.87 47.776 79.5 BenQ Notebook 1024 x 576 60.0 35.820 46.966 Timing BenQ Notebook 1024 x 600 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60* 45.000... - Page 59 (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 1280 x 768 1280 x 768_60* 59.87 47.776 79.5 1024 x 576@60Hz BenQ Notebook Timing 60.00 35.820 46.996 1024 x 600@65Hz BenQ Notebook Timing 64.995 41.467 51.419 1280 x 720 1280 x 720_60* 45.000...
- Page 60 Vertical Horizontal Pixel Timing Resolution Frequency Frequency Frequency Remark (Hz) (kHz) (MHz) 480i* 720 x 480 59.94 15.73 HDMI only 480p 720 x 480 59.94 31.47 HDMI/DVI 576i 720 x 576 15.63 HDMI only 576p 720 x 576 31.25 HDMI/DVI 720/50p** 1280 x 720 37.5...
- Page 61 Supported timing for Video and S-Video inputs Horizontal Vertical Frequency Color sub-carrier Video mode Frequency (kHz) (Hz) Frequency (MHz) NTSC* 15.73 3.58 15.63 4.43 SECAM 15.63 4.25 or 4.41 PAL-M 15.73 3.58 PAL-N 15.63 3.58 PAL-60 15.73 4.43 NTSC4.43 15.73 4.43 *Supported timing for 3D signal with Frame Sequential format.
-
Page 62: Warranty And Copyright Information
Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.
