VIORE LCD32VXF6OBD Operating Instructions Manual
  1. Manuals
  2. Brands
  3. VIORE Manuals
  4. LCD TV
  5. LCD32VXF6OBD
  6. Operating instructions manual

VIORE LCD32VXF6OBD Operating Instructions Manual

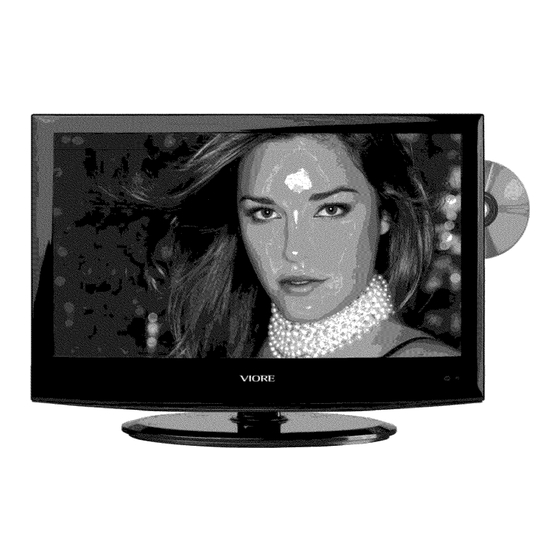

32" 1080p lcd tv with built-in blu-ray disc player
Hide thumbs

Advertisement

Quick Links

Download this manual

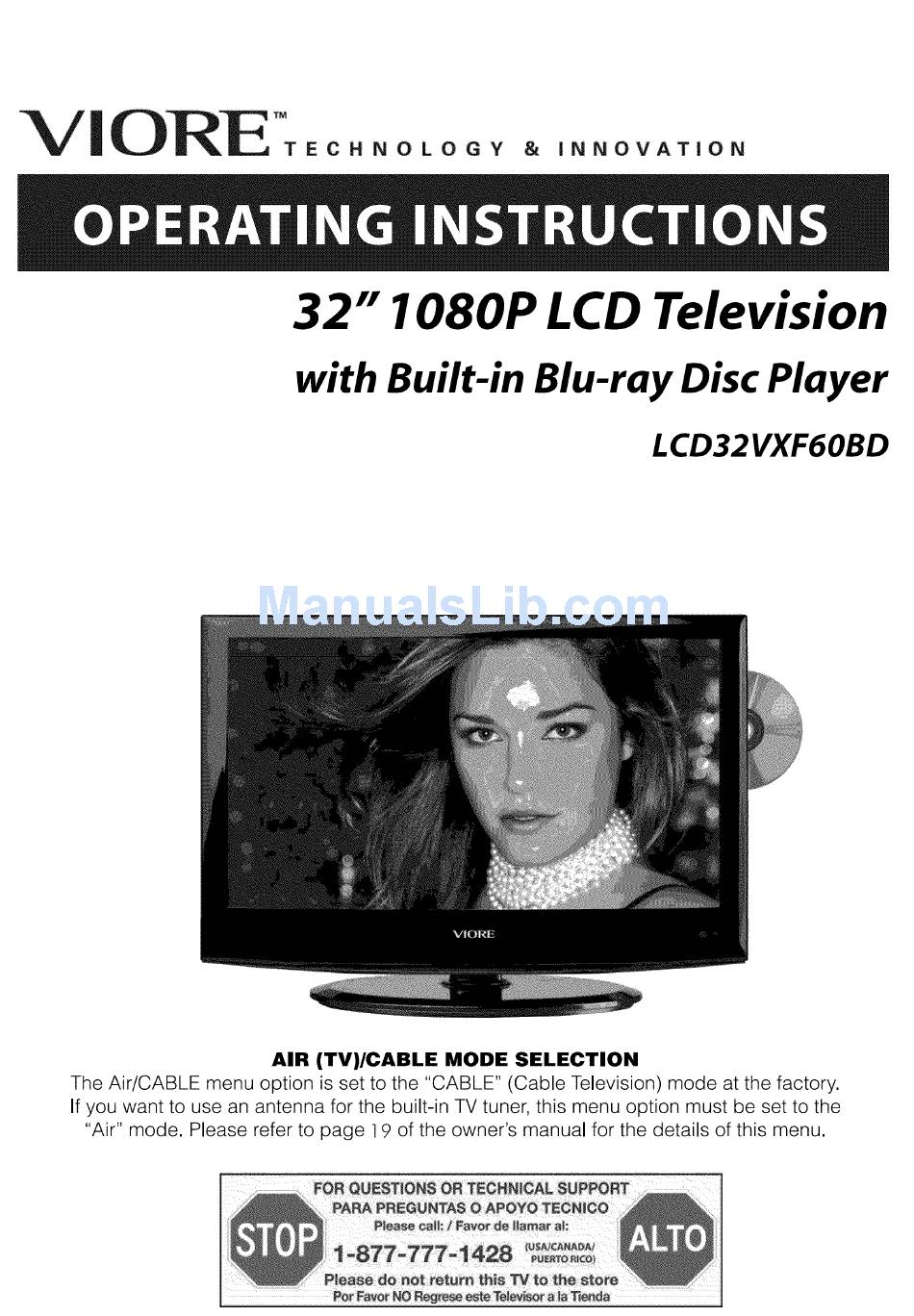

32" I080P LCD Television
with Built-in Blu-ray Disc Player
LCD32 VXF6OBD
AIR (TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE" (Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page ] 9 of the owner's manual for the details of this menu.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LCD32VXF6OBD and is the answer not in the manual?

Questions and answers

Related Manuals for VIORE LCD32VXF6OBD

Summary of Contents for VIORE LCD32VXF6OBD

  • Page 1 32" I080P LCD Television with Built-in Blu-ray Disc Player LCD32 VXF6OBD AIR (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
  • Page 3 • Caution ..................• Safety Information ................• Blu-ray Disc Player-Caution ............... • Blu-ray Disc Player- Information ..............• Names of each part(Front View) / Accessories ............• Names of each part(Back View) ..............• Mounting on a Desktop / Installation Precautions............. •...
  • Page 4 The lightning flash with arrowhead symbol, within an equilateral triangle intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute risk of electric shock to the persons. The exclamation point within an equilateral triangle...
  • Page 5 To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label.
  • Page 6 CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUCTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOUSE. DO NOT OPEN PRODUCT CASING - THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. Note: This unit can be used only where the power supply is AC 100-240V~, 50/60Hz.

  • Page 7: Disc Handling Precautions

    Restrictions on Playback This player may not respond to all operating commands because some BD, DVD or CD discs allow specific or limited operation and features during playback. Please note that this is not a defect in the player. The manufacturer cannot assure that this player will play every disc bearing the BD, DVD and CD Iogos because disc formats may evolve, and problems and errors can occur during the creation of BD, DVD and CD software and/or the manufacture of discs.
  • Page 8 30-- _-O- Please insert a 12cm disc according to the silk XIPUT button - Input Source Select Button Eject the disc MENU but[on- OSD Menu Display Button POWER button CH+t- button - ChanneltProgram +,- Button LED Indicator VOL÷I- button - Volume +.- Button Remote Control Window Play / Pause the disc playing...
  • Page 9 iiii!_ _ i i i_ii_ii!: ii_ _ POWER SWITCH POWER ® • ® 1. AC POWER IN: Connect to an earth 100-240V, 50/60Hz AC outlet with the PowerCable. 2. SWITCH: Switch on or off the power suply. 3. HDMII/2: Connect them to the video output terminal of DVD,(used in HDTVl...
  • Page 10 @ Your LCD TV can be placed on a Desktop as shown in the figure above. @ Please refaer to the following precautions "Using the Stand". ÷ Please secure enough space for safe use. (Please refer to A and B.) ÷...
  • Page 11 ÷ For connecting to ATSC or NTSC broadcasts © Wall Jack with F-Connector iiiiiiiiii_i_ii_ii!ii!iiiiiiiiii_!ii!_i_ !i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_i_i_i!iiiiiiiii !_!_!_!_!_!_!_!_i_i_ Coaxial (Round) Antenna Cable ........_iiiiiiii_i Analog+Digital 75 O external Antenna Press INPUT button on the remote control to select TV, then press OK button to confirm. Then you can receive the ATSC/NTSC signal.
  • Page 12 ÷ Functions of remote control buttons The remote control is using Infra-Red (In). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. INPUT POWER Press to display the input source...
  • Page 13 Numeric Keypad These buttons are used with GOTO button to move to a specific track on BD,DVD and CLEAR When entering numeric values GOTO via the numeric keypad,this Play your favorite title/chapter/track. button is used to clear a number INFO entered incorrectly.
  • Page 14 1. Check the polarity (+,-) of the batteries in the remote control. 2. Check that the batteries have power. 3. Check that the LCD TV is powered and that it is properly plugged in. 4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV. 1.
  • Page 15 ÷ Poweron/off Press on the buttom of the LCD TV to _ first. To turn the LCD TV on : Press "POWER" button on the LCD TV. .To turn the LCD TV off : Press "POWER" button on the LCD TV. To turn on/off by remote control : Press the button of remote control.
  • Page 16 Basic OSD Menu operation Press MENU button to display the OSD menu as below: Use < / > button to select the main menu, and press V button to enter the submenu. In the submenu, use A / V button to select the function item, and you could: adjust ("Contrast"...
  • Page 17 OSD Menu 1. Picture menu Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture.
  • Page 18 2. Audio menu Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequencies intensity. Treble: High frequencies intensity.
  • Page 19 3. Time menu Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time: Select between On and Off. Clock: Display the Date/Time according...
  • Page 20 Setup menu Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position,...
  • Page 21 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Change password: Change the password, you must enter the new password twice to confirm it.
  • Page 22 6. Channel menu Air/Cable: Allow you to select antenna between Air and Cable. If you selet "Cable", the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select "Cable"...
  • Page 23 Show/Hide: Allow you to show or hide the channels. Use A / V button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press <...

  • Page 24: Playable Disc Types

    INTRODUCTION OVERVIEW Your Btu-ray (BD) player has the capability of providing high-definition and cinema-like pictures. Soundtracks in more than one language are usually included on the disc and subtitle in more languages are often included as well. PLAYABLE DISC TYPES The following types of discs can be played in this BD player: DVD-or+RW Blu-Ray...

  • Page 25: Setup Menu Operation

    SETUP MENU SETUP MENU OPERATION 2.1.1 Invoking the Setup Menu After the BD player has been turned on, enter the SETUP menu by pressing the "OK" key on the remote. The following screen wilt appear: As shown in the figure above, the Setup Menu screen is divided into three separate sections. The LEFT section indicates that you are in the Settings (SETUP) menu.
  • Page 26 2.1.2 Changing Setup Menu Options In the Center section, move UP/DOWN arrow on remote to go to desired Setup Menu Category (Info, Display, Audio, Language, Parental, System, Network etc.,), press Enter key on remote control to make selection. The selected Setup Menu Category wilt be highlighted, press right arrow key and make changes on Right section for each setting opinions, press Enter key on remote to confirm and save change or changes just made.as shown below: By pressing the up/down arrow keys (j, T) on the remote and moving the highlighting, the setting for each...
  • Page 27 LANGUAGEMENU CATEGORY From the main setup menu, press the up/down arrow keys (A • ) on the remote until the Language menu category is highlighted. Then, press the right arrow key ( I_ ) on the remote until the centerportion of the setup screen is highlighted.
  • Page 28 Once the desired language has been highlighted, press the OK key (_) on the remote to set the language. The orange circle will then move to that language. You can then move to another menu item by pressing the left arrow key (_1) on the remote until the center portion of the setup menu is highlighted. 2.2.3 Menu Language To set the language that will be displayed when the BD or DVD disc's main menu appears, press the up/down arrow keys (•...
  • Page 29 DISPLAYMENU CATEGORY To set the video outputs correctly, press the up/down arrow keys (• • ) on the remote until the Display menu category is highlighted on the/efttportion of the setup menu screen. A screen similar to the following wilt appear: Each of the menu choices above will be explained in the next sections.
  • Page 30 2.3.2 TV Aspect You can use this menu item to tell the BD player whether you have a very rectangular shaped, 16:9-aspect ration television set, or a more traditional, almost square 4:3 aspect-ratio television set. To inform the BD player of your TV's aspect ratio, press the up/down arrow keys (A • ) on the remote until the TV Aspect choice in the center of the setup menu screen is highlighted.
  • Page 31 AUDIO MENU CATEGORY To set the digital and analog audio outputs correctly, press the up/down arrow keys ( • v) on the remote until the Audio menu category is highlighted on the/eftportion of the setup menu screen. A screen similar to the following wilt appear: Each of the menu choices above will be explained in the subsequent sections.
  • Page 32 Dolby Digital and DTS These formats use "accurate but not identical" compression to encode (Digital Theater Systems) muttichannet (5.1)audio onto a DVD or Blu-Ray disc. Digital Surround Dolby Digital Plus This format offers up to 7.1-channel surround sound, and is only available on some DVD and Blu-Ray discs.
  • Page 33 Not all surround-sound receivers are capable of playing back all of the digital audio codes listed above. In addition, some surround sound receivers can play pack PCM data, but the data must be sent to the receiver at a slower rate than what is stored on the Btu-Ray disc. Now that the various types of digital audio codecs have been explained, the next few menu items will be described in further detail.
  • Page 34 2.4.3 PCM Downsampling You can use this menu item to tell the BD player whether your surround receiver can handle high-bitrate PCM signals over the Coaxial/Optical interface. To inform the BD player of your surround sound receiver's PCM capabilities, press the up/down arrow keys ( •...
  • Page 35 Once the desired PCM sampling rate has been highlighted, press the OK key (_) on the remote to set the sampling rate. The orange circle will then move to the highlighted sampling rate. You can then move to another menu item by pressing the left arrow key (A v) on the remote until the center portion of the setup menu is highlighted.

  • Page 36: Parental Control

    PARENTALCONTROL To set the player's parental control settings, from the main setup menu, press the up/down arrow keys (A • ) on the remote until the Parental Control menu choice is highlighted. Press the 'Select' key on the remote, and the following screen wilt appear: Attempting to change any of these items initially will result in the following screen appearing: The first time this screen appears, you should enter the default parental password, which is 0000.
  • Page 37 You can then configure the BD player for various levels of parental control, as described in the next sections. 2.5.1 Parental Country Use this menu item to tell the BD player what country you are in. Currently this menu item has no effect. 2.5.2 Parental Control Use this menu item to turn parental control ON or OFF.
  • Page 38 SYSTEM MENU CATEGORY From the main setup menu, press the up/down arrow keys (A T) on the remote until the System menu choice is highlighted, and the following screen wilt appear: 2.6.1 Optical Disc AutoPlay Highlighting this setup menu selection, and then pressing ' OK ', will open/close automation playing after loading disc.
  • Page 39 2.7 Using the USB Port for BD-Live Storage and Media Playback A USB device provides an additional memory to enjoy media play and BD-Live bonus content. Connect the USB device to the USB jack on this product. We do not guarantee 100% compatibility with atl USB devices. 1.
  • Page 40 Disc PLAYING BD OR DVD Disc STANDARD (OR NORMAL) PLAYBACK OF A Press the STANDBY/ON button on the front panel of the BD player Press the power button @ on the remote. Turn on the TV, and using the TV remote control, select the input type on the TV that is connected via cable to the BD player (HDMI, component, etc) Press OPEN/CLOSE on the front panel of the BD player to open the tray.
  • Page 41 On many BD discs, chapter 1 of title 1 is an advertisement, or preview of upcoming release. If you wish, you may press the "Disc Menu" button on the remote to bring up the main disc menu. From there, you can often use the arrow keys on the remote to select the "Play Movie" menu item. To stop playback, press the PAUSE button I I on the remote control.

  • Page 42: Fast Forward

    FAST FORWARD When the disk is playing normally, press the forward scan button )) on the remote to begin fast forward at 2x normal playback speed. Each time the forward scan button is pressed, the playback speed will double. (The actual progression will be 2x fast forward, 4x fast forward, 8x fast forward, 16x fast forward, then back to play).

  • Page 43: Repeatinga Track

    REPEATING A TRACK When the disk is playing normally, press the REPEAT button on the remote. The words REPEAT OFF will appear on the TV screen. Continue pressing the REPEAT button on the remote until the words REPEAT TRACK appear on the screen. The track will now continuously loop.
  • Page 44 • Do not use other functions that are not mentioned in this user's manual. • In case a problem occurs with your LCD TV, please take the following steps first. , If you still have the problem, turn the power off and contact your dealer or an authorized service center. Problem Action The screen does not appear.
  • Page 45 LCD Panel 32" (measured diagonally) TFT LCD Brightness 420cd/m 2 Contrast Ratio 3600:1 BROADCAST SIGNAL SYSTEM NTSC M + ATSC ANTENNA INPUT IMPEDANCE SOUND OUTPUT 8W x 2 Max. Resolution 1920 x1080 Input Connector VIDEO YPbPr HDMI AC 100-240V, 50/60HZ Power Consumption 150W •...

  • Page 47: Limited Warranty

    VlORE or VlORE's authorized service center. VIORE will repair or if repairs cannot be made, VIORE will replace this Product at no charge if the Product is defective as specified in this limited warranty during the limited warranty period.
  • Page 48 VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
