User Manual
Quick Start Guide Wireless N Gigabit Router

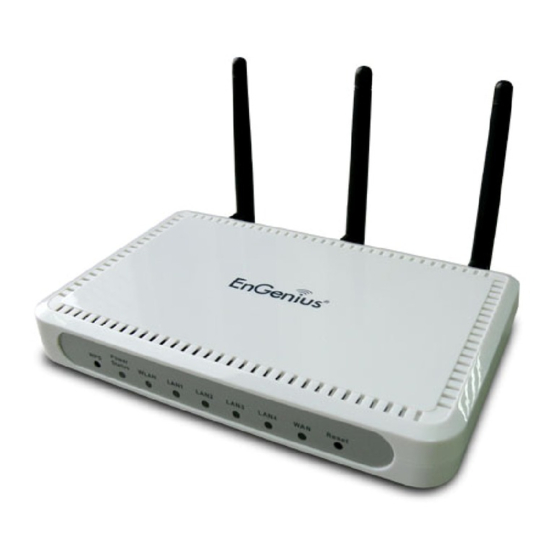

The Wireless-N Gigabit Router is a draft 802.11n compliant device that
delivers up to 6x faster speeds than 802.11g while staying backward
compatible with 802.11g and 802.11b devices.
It is not only a Wireless Access Point, which lets you connect to the
network without wires. There's also a built-in 4-port full-duplex
10/100/1000 Gigabit Switch to connect your wired-Ethernet devices
together. The Router function ties it all together and lets your whole
network share a high-speed cable or DSL Internet connection.
This Quick Start Guide will guide you through the steps of setting up the device using the Wizards. For
advanced configuration, refer to the User's Manual in the CD-ROM provided.

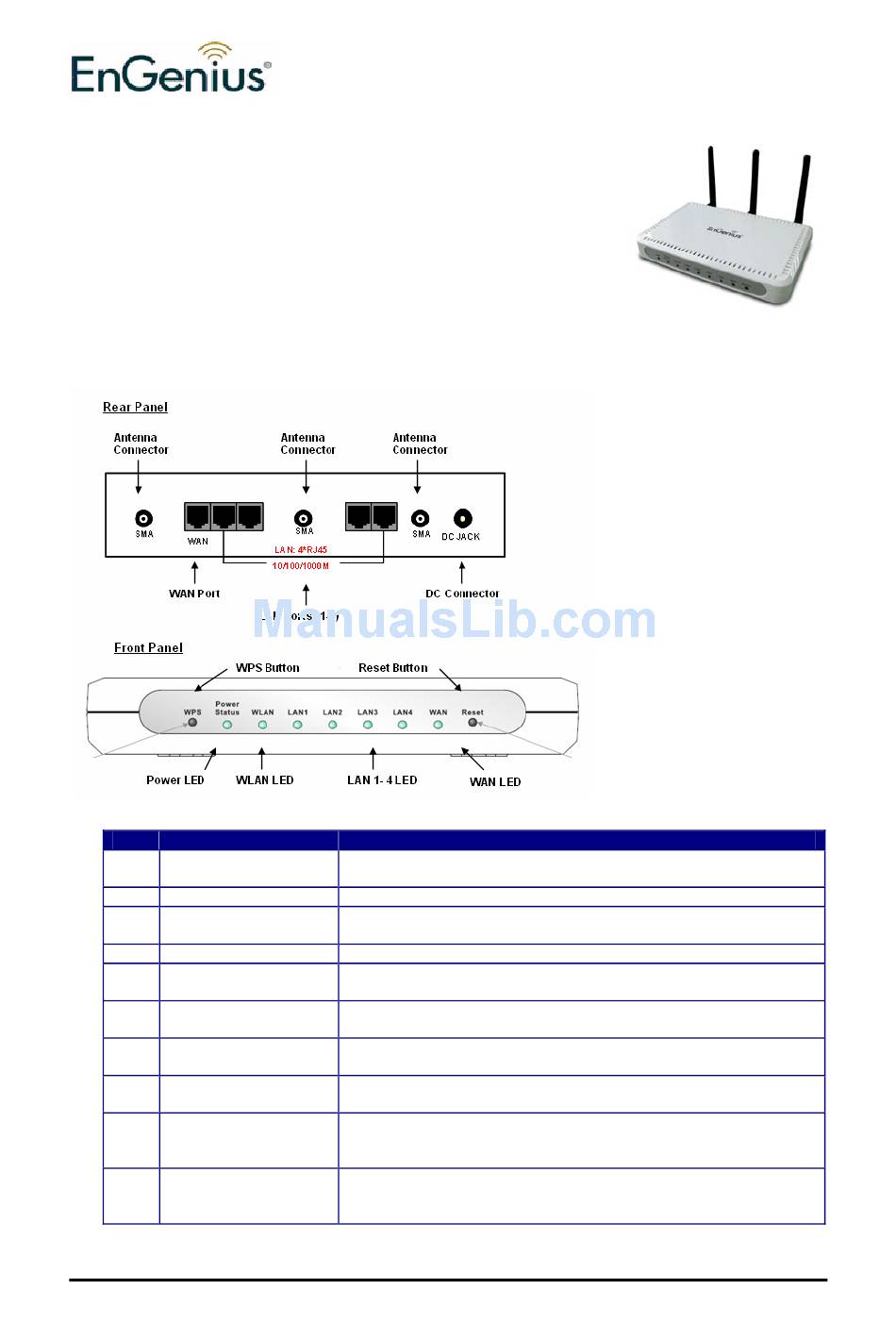

Step
Label
1
LAN Ports (1 – 4)
2
WAN Port
3
DC Connector
4
Antenna Connector
Connection / Activity
LED
WAN LED
WLAN LED
Power LED
Reset Button
WPS
Quick Start Guide v.1.0
Use an Ethernet cable to connect each port to a computer on your
Local Area Network (LAN).
Use an Ethernet cable to connect this port to your WAN router.
Use the power cable and connect the adapter to the power socket
on the wall, and the DC inlet into the DC connector.
Connect the three antennas to the SMA connectors.
This LED will light up once an Ethernet cable is connected to one
of the LAN ports.
This LED will light up once an Ethernet cable is connected to WAN
(Internet) port.
This LED will light up once the RF (wireless LAN) feature is
enabled
This LED will light up once the power cable is connected to the DC
connector.
Use this button to reset the device. You can restore the device
back to its factory default settings by holding down on this button
for 5 seconds.
WPS (Wireless Push Button) is used for WiFi Protected Setup. By
pressing this button, the security settings of the device will
automatically synchronize with other wireless devices on your
ESR-9710 Wireless N Gigabit Router
Description
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EnGenius ESR-9710
Summary of Contents for EnGenius ESR-9710
- Page 1 Quick Start Guide Wireless N Gigabit Router The Wireless-N Gigabit Router is a draft 802.11n compliant device that delivers up to 6x faster speeds than 802.11g while staying backward compatible with 802.11g and 802.11b devices. It is not only a Wireless Access Point, which lets you connect to the network without wires.
- Page 2 Quick Start Guide Wireless N Gigabit Router network that support Wi-Fi Protected Setup. Hardware Installation Place the unit in an appropriate place after conducting a site survey. Plug one end of the Ethernet cable into the LAN port of the device and another end into your PC/Notebook.
- Page 3 Quick Start Guide Wireless N Gigabit Router Internet Connection Wizard Click on the Internet Connection Setup Wizard button to begin the process. The Wizard requires that you configure the password, time zone, and Internet (WAN) connection. Click on the Next button to continue. By default, the device does not use a password.
- Page 4 Quick Start Guide Wireless N Gigabit Router L2TP Select the L2TP radio button and then click on the Next button. Address Mode: L2TP can be used with a dynamic or static IP address. If you select the Dynamic IP radio button, then the IIP address in the next field is not required. However, if you select the Static IP radio button, then the IP address in the next field is required.
- Page 5 Quick Start Guide Wireless N Gigabit Router If you select the Auto option, then the device will automatically configure the SSID and security mode. Click on the Next button to continue. The wizard has automatically configured the SSID and security mode for the device. Click on the Save button to complete the setup.
