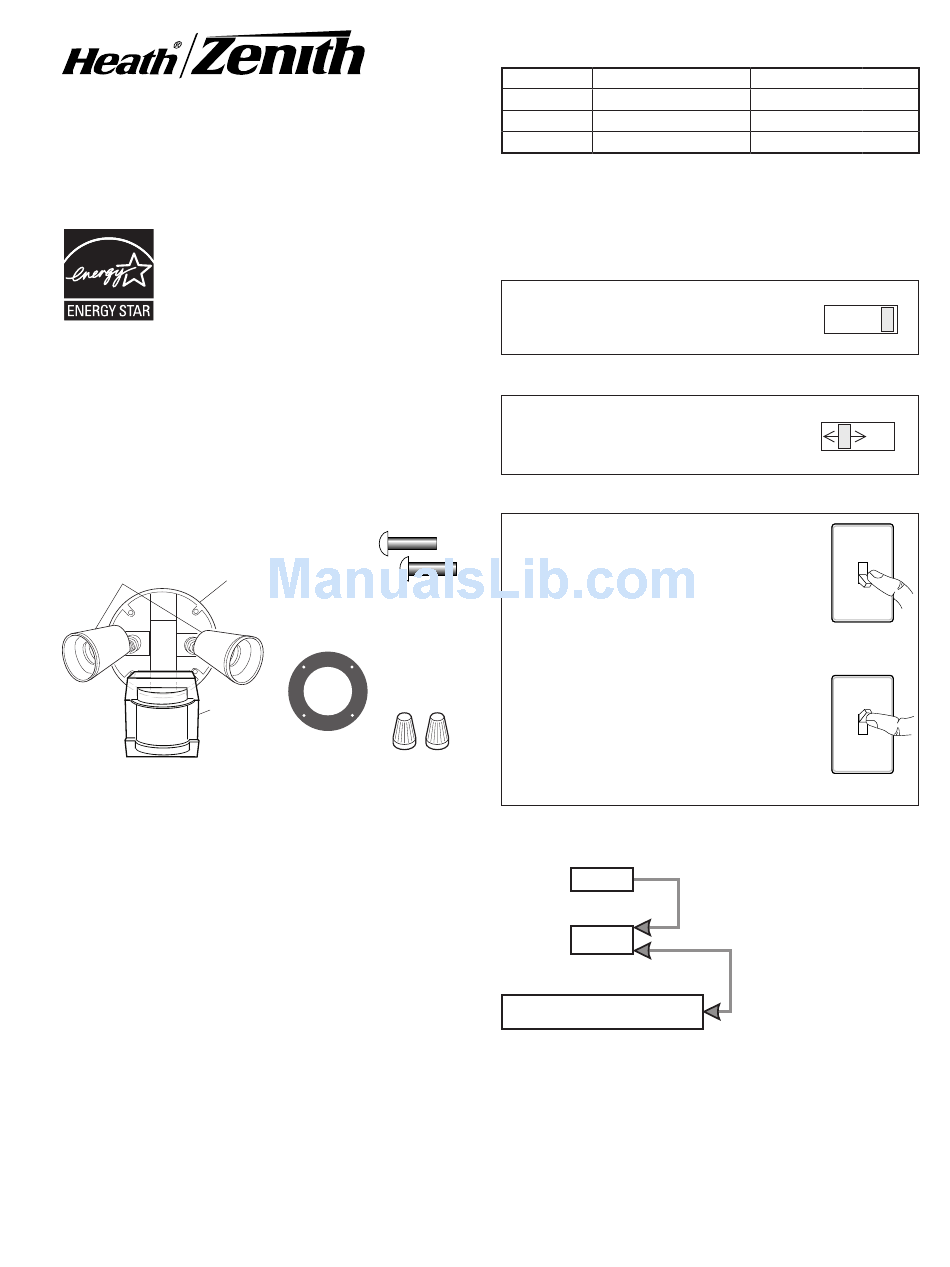

Motion Sensor Light
Control
As an ENERGY STAR
has determined that this product meets the EN-
ERGY STAR
This product is ENERGY STAR
when used with 120 Watt bulbs.
Model SL-5408
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.

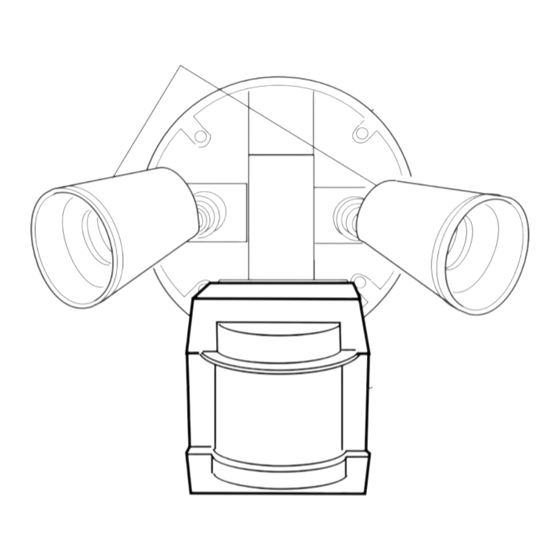

This package includes:
Lamp Holders
Cover
Plate
Sensor
Light Control
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with a junction box
marked for use in wet locations.
• The backplate has knockouts so the sensor can be
mounted on most junction boxes.
• In some applications a universal adaptor plate may
be needed. Adaptors are available at home centers
and electrical supply stores.
© 2007 HeathCo LLC
Partner, Heath
/Zenith
®
®
®
guidelines for energy efficiency.
®
compliant
4 Mounting
Screws (2 sizes)
Gasket
2 Wire
Connectors
OPERATION
Mode:
On-Time
Test
5 Seconds
Auto
1, 5, or 10 Min
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5,
or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Works:
Day Night
x
/
minutes for
1
2
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch to
1, 5, or 10 minutes
Flip light switch off
for one second then
back on*
595-5292-19
x
x
x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-5408-GR-A - Heathco, Llc - Motion Scrty Floodlight and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heath Zenith SL-5408-GR-A - Heathco, Llc - Motion Scrty Floodlight

  • Page 1 * resets to Auto Mode at dawn. Note: When first turned on wait about 1 minutes for the circuitry to calibrate. As an ENERGY STAR Partner, Heath /Zenith ® ® has determined that this product meets the EN- TEST ERGY STAR ®...
  • Page 2: Installation

    INSTALLATION ire the ight ontroL ❒ Turn power off at the fuse or circuit breaker. For easy installation, select an existing light operated ❒ Remove the existing light fixture. by a wall switch for replacement. ❒ Route the light control's wires through the large For best performance, mount the fixture about gasket hole.
  • Page 3: Test And Adjustment

    TEST AND ADJUSTMENT ❒ Loosen the clamp screw in the Clamp sensor ball joint and gently Screw rotate the sensor. ❒ Turn on the circuit breaker and light switch. ❒ Walk through the coverage Ball ❒ Turn the SENSITIVITY (SENS) control to the mid posi- area noting where you are Joint tion and the ON-TIME control to the TEST position.
  • Page 4: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE SYMPTOM POSSIBLE CAUSE Lights will not come 1. Light switch is turned off. Lights stay on 1. A flood lamp is positioned too close to continuously. 2. F l o o d l i g h t i s l o o s e o r the sensor or pointed at nearby objects burned out.
  • Page 5 FUNCIONAMIENTO Modalidad: A tiempo: Trabaja: Día Noche Prueba 5 seg. Detector de Autom. 1, 5 ó 10 min. Manual Hasta el Movimiento y amanecer* *Se pone en Automático al amanecer. Control de Luz Nota: Cuando lo prenda por primera vez espere 1 minutos para que el circuito se claibre.
  • Page 6 INSTALACION CONECTE EL CONTROL DE LUZ Para una fácil instalación escoja una luz con un ❒ Apague la energía en el fusible o cortacircuitos. interruptor de pared. ❒ Quite el aparato de luz existente. Para un mejor funcionamiento, instale el aparato a casi ❒...
  • Page 7: Prueba Y Ajuste

    PRUEBA Y AJUSTE ❒ Afloje el tornillo sujetador en la Tornillo unión esférica y gire despacio Sujetador ❒ Prenda el cortacircuitos y el interruptor de luz. el detector. ❒ Gire el control de sensibilidad (SENS) a la mid, y ❒ Camine por el área a prote- Unión el control de tiempo (ON-TIME) a la posición de gerse y dése cuenta dónde...
  • Page 8: Guia De Investigacion De Averias

    GUIA DE INvESTIGACION DE AvERIAS SINTOMA POSIBLE CAUSA SINTOMA POSIBLE CAUSA La luz no se enci- La luz se 1. El interruptor de luz está apaga- 1. Un faro está colocado demasiado cerca ende. queda al detector o apunta a objetos cercanos prendida 2.
  • Page 9 Note: Après mise en circuit, attendre enfiron minute pour que l’étalonnage du circuit soit En tant que partenaire ENERGY STAR ® complété. Heath /Zenith a déterminé que ce produit ® satisfait aux directives d’efficacité énergétique ESSAI ENERGY STAR ® . Ce produit est conforme à...
  • Page 10 INSTALLATION CÂBLAGE DE LA COMMANDE D’ÉCLAIRAGE Pour faciliter l’installation, choisir un appareil d’éclairage devant être remplacé et qui est déjà commandé par un ❒ Couper l’alimentation du circuit d’éclairage au interrupteur. fusible ou au disjoncteur. Pour assurer un rendement maximal, monter ❒...
  • Page 11: Essais Et Réglages

    ESSAIS ET RÉGLAGES ❒ Desserrer la vis de blocage Vis de de la rotule et faire pivoter le blocage ❒ Mettre en circuit le disjoncteur et l’interrupteur détecteur pour pointer. d’éclairage. Rotule ❒ Marcher dans la zone de ❒ Tourner la commande de sensibilité (SENS) à la couverture et noter à...
  • Page 12: Guide De Dépannage

    GUIDE DE DÉPANNAGE SYMPTÔME CAUSE POSSIBLE SYMPTÔME CAUSE POSSIBLE L ’ é c l a i r a g e 1. L’interrupteur d’éclairage est hors L’éclairage reste 1. Un projecteur est situé trop près du s’allume pas. allumé continuel- tension. détecteur ou pointé...
