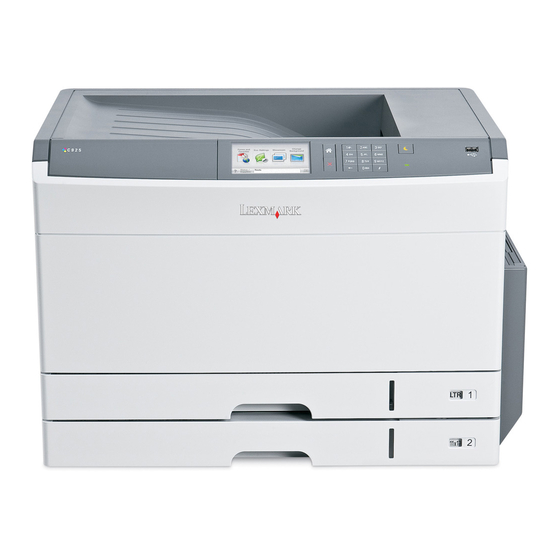

Lexmark C925 Quick Reference

Quick Reference

Loading paper and

specialty media

Setting the paper size and type

The Paper Size setting is automatically sensed according to the
position of the paper guides in each tray except in the standard
150-sheet tray (Tray 1) and in the multipurpose feeder. The Paper Size
setting for Tray 1 is set manually via the wheel on the tray, while the
Paper Size setting for the multipurpose feeder is set in the Paper Size
menu.
From the home screen, navigate to:
> Paper Menu > Paper Size/Type > select a tray > select the
paper size or type >
Only Tray 1 has Plain Paper as the factory default Paper Type setting.
Custom 2, 3, 4, 5, and 6 are the default settings for the other trays.
Loading the standard or optional
550-sheet tray
The printer has standard150- (Tray 1) and 250-sheet trays (Tray 2), and
it may have one or more optional 550-sheet trays. All 550-sheet trays
support the same paper sizes and types. The only sizes that are
supported for both long-edge and short-edge feeding are Letter and
A4. Anything longer than A4 should be fed with the short edge of the
page entering the printer first, anything shorter should be fed with
the long edge of the page entering the printer first.
Any unusual sized sheets or heavy weight media should be loaded
into the multipurpose feeder, which can support up to 50 sheets.
CAUTION—TIPPING HAZARD: To reduce the risk of
equipment instability, load each paper drawer or tray
separately. Keep all other drawers or trays closed until needed.
1
Pull the tray out.
Notice the size indicators at the bottom of the tray. Use these
indicators to help position the guides.
1
2
Make sure to unlock the width guide lock at the rear of the tray.
Squeeze the width guide tabs as shown, and then slide the guide
to the correct position for the paper size being loaded.
1
Note: Always use the paper width guide lock at the rear of the
tray to prevent the margins from being knocked out of
adjustment.
2
3
