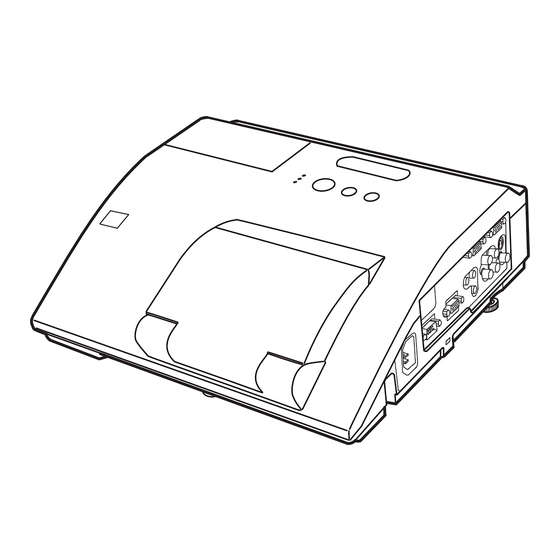

Dukane 8107HWI User Manual

Data video lcd - interactive wxga ust projector
Hide thumbs Also See for 8107HWI:
Table of Contents

Advertisement

Quick Links

Data Video LCD - Interactive
WXGA UST Projector
General User's Manual
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specific model SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukane.com/av
MODEL 8107HWI
403-8107HWI-General-00

Advertisement

Table of Contents
loading

Summary of Contents for Dukane 8107HWI

  • Page 1 MODEL 8107HWI Information in this Guide may change due to product improvements. To obtain the latest manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section. DUKANE CORP AV SERVICE DEPT...
  • Page 3 Projector User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual.
  • Page 4: Table Of Contents

    Contents Introduction ....3 SETUP menu ....44 , D- Features ..... . 3 ZOOM SHIFT POSIT...
  • Page 5: Introduction

    Introduction Introduction Features The projector provides you with the broad use by the following features. The unique lens and mirror system realizes ultra short distance projection,which gives you more various way of use. The motorized lens door offers you very simple use of the projector. The double layer filter system is expected to function longer and offers you less maintenance frequency.
  • Page 6: Part Names

    Introduction Part names HOT! Projector (1) Lamp cover ( The lamp unit is inside. (2) Control panel ( (12) (3) Elevator feet (x 2) ( (4) Remote sensor ( (14) 102) (5) Lens ( (11) (6) Intake vents (13) (7) Filter cover ( (10) The air filter and intake vent are inside.
  • Page 7 Introduction Control panel (1) STANDBY/ON button ( (2) INPUT button ( 19, 107, 108) (3) POWER indicator ( 107, 108) (4) TEMP indicator ( 107, 108) (5) LAMP indicator ( Buttons ◄/►/▲/▼ (6) FOCUS +/- buttons 25), when no menu is displayed ( 29).
  • Page 8 Introduction Remote control (1) VIDEO button ( (10) (2) COMPUTER button ( (3) SEARCH button ( MY SOURCE/ VIDEO COMPUTER DOC.CAMERA ASPECT AUTO SEARCH BLANK (4) STANDBY/ON button ( (16) (12) FREEZE PAGE VOLUME MAGNIFY (5) ASPECT button ( (14) DOWN (6) AUTO button ( (11)
  • Page 9: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to table T-1 and figures F-1 and F-2 at the end of User's Manual (concise) to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280 x 800 Screen size (diagonal) Projection distance (±8%)
  • Page 10 Setting up Arrangement (continued) WARNING ►Place the projector in a cool place, and ensure that there is sufficient ventilation. The high temperature of the projector could cause fire, burns and/or malfunction of the projector. • Do not stop-up, block or otherwise cover the projector's vents. •...
  • Page 11: Connecting With Your Devices

    Setting up Connecting with your devices Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged.
  • Page 12 Setting up Connecting with your devices (continued) About Plug-and-Play capability • Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.
  • Page 13 Setting up Connecting with your devices (continued) NOTE • Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector. - Some signal may need an adapter to input this projector. - Some computers have multiple screen display modes that may include some signals which are not supported by this projector.
  • Page 14 Setting up Connecting with your devices (continued) • If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the 85).
  • Page 15 Setting up Connecting with your devices (continued) To use network functions of the projector, connect the LAN port with the computer's LAN port, or with an access point that is connected to the computer with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function, also connect the CONTROL port and an RS-232C port of the external device to communicate as a network terminal.
  • Page 16: Connecting To A Power Supply

    Setting up Connecting to a power supply Put the connector of the power cord into the AC IN (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.
  • Page 17: Using The Cable Cover

    Setting up Using the cable cover Utilize the cable cover as the guard and blind for the connecting parts. Connect the signal cables and the power cord to the projector first. Combine parts as shown in figure, and assemble the cable cover. Insert the three knobs on the cable cover into the three holes on the projector as shown in the figure.
  • Page 18: Remote Control

    Remote control Remote control Installing the batteries Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place. Holding the hook part of the battery cover, remove it.
  • Page 19: Changing The Frequency Of Remote Control Signal

    Remote control Changing the frequency of remote control signal The accessory remote control has the two choices on signal ASPECT AUTO SEARCH BLANK frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control MAGNIFY FREEZE PAGE VOLUME does not function properly, attempt to change the signal frequency. DOWN In order to set the Mode, please keep pressing the combination of KEYSTONE...
  • Page 20: Interactive Pen

    Interactive pen Interactive pen Installing the battery Turn the battery cover of the pen to the left to open As illustrated in the diagram, insert the AAA battery into the battery cover with the - end facing the front. (HITACHI MAXELL, Part No. LR03) Attach the battery cover by turning it to the right until it is completely closed.
  • Page 21: Power On/Off

    Power on/off Power on/off Turning on the power STANDBY/ON button Make sure that the power cord is firmly POWER indicator and correctly connected to the projector and the outlet. Make sure that the POWER indicator is 107). steady orange ( Confirm that there is nothing that the lens door hits while opening.
  • Page 22: Turning Off The Power

    Power on/off Turning off the power Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Confirm that there is nothing that the lens door hits while closing. Press the STANDBY/ON button again while the message appears.
  • Page 23: Operating

    Operating Operating VOLUME +/- button Adjusting the volume MY SOURCE/ VIDEO COMPUTER DOC.CAMERA Use the VOLUME +/VOLUME - buttons to adjust the volume. ASPECT AUTO SEARCH BLANK A dialog will appear on the screen to aid you in adjusting the MAGNIFY FREEZE PAGE...
  • Page 24 Operating Selecting an input signal (continued) Press COMPUTER button on the remote control. COMPUTER button Each time you press the button, the projector switches its input port from the current port as below. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA COMPUTER IN1 COMPUTER IN2 AUTO ASPECT...
  • Page 25: Searching An Input Signal

    Operating Searching an input signal SEARCH button Press SEARCH button on the remote control. The projector will start to check its input ports as below in MY SOURCE/ COMPUTER VIDEO DOC.CAMERA order to find any input signals. ASPECT AUTO SEARCH BLANK FREEZE PAGE...
  • Page 26: Adjusting The Projector's Elevator

    Operating Adjusting the projector's elevator The projector has Front foot for inclinations and Rear foot for horizontals. Spacers on the each elevator foot are installed at the time of shipment, and projector is in a condition to be able to just project. If necessary, detach the spacer, and the elevator feet can be manually twisted to make more precise adjustments.
  • Page 27: Using The Automatic Adjustment Feature

    Operating FOCUS - button Press the FOCUS + or FOCUS – button on the remote control, or FOCUS + or FOCUS – button on the projector ( while no menu is on screen, to display the FOCUS box on MY SOURCE/ VIDEO COMPUTER DOC.CAMERA...
  • Page 28: Adjusting The Position

    Operating Adjusting the position POSITION MENU Press the POSITION button on the remote control while no menu 44) dialog on screen. is on screen, to display the D-SHIFT ( ENTER RESET Use the ▲, ▼, ◄ and ► buttons to adjust the picture position. Press the POSITION button again to finish this operation.
  • Page 29: Using The Magnify Feature

    Operating Using the magnify feature MAGNIFY Press the MAGNIFY ON button on the remote control. ON/OFF button The picture will be magnified, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the first time after the projector is turned on, the MY SOURCE/ COMPUTER VIDEO...
  • Page 30: Temporarily Freezing The Screen

    Operating Temporarily freezing the screen FREEZE button Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for MY SOURCE/ VIDEO COMPUTER DOC.CAMERA 51)), and the the MESSAGE item in the SCREEN menu ( AUTO...
  • Page 31: Using The Menu Function

    Operating Using the menu function This projector has the following menus: INTERACTIVE, PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods.
  • Page 32 Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. ●...
  • Page 33: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Executing this item starts (or cancels) calibration of the position of the pen.
  • Page 34 EASY MENU Item Description Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source. NORMAL CINEMA DYNAMIC BOARD(BLACK) DAYTIME WHITEBOARD BOARD(GREEN) GAMMA COLOR TEMP NORMAL 1 DEFAULT...
  • Page 35: Interactive Menu

    INTERACTIVE menu INTERACTIVE menu Item Description Executing this item starts (or cancels) calibration of the position of the pen. INTERACTIVE For more details, refer to the manual for the “StarBoard Software” in 79). the bundled DVD-ROM (...
  • Page 36: Picture Menu

    PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 37 PICTURE menu Item Description Using the ▲/▼ buttons switches the color temperature mode. 1 HIGH 1 CUSTOM 2 MID 2 CUSTOM 6 CUSTOM 3 LOW 6 Hi-BRIGHT-3 3 CUSTOM 5 CUSTOM 5 Hi-BRIGHT-2 4 CUSTOM 4 Hi-BRIGHT-1 To adjust CUSTOM Selecting a mode whose name includes CUSTOM and then pressing the ►...
  • Page 38 PICTURE menu Item Description Using the ◄/► buttons adjusts the sharpness. Weak Strong SHARPNESS • There may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction. Using the ▲/▼ cursor buttons changes the active iris control mode. PRESENTATION THEATER PRESENTATION : The active iris displays the best presentation...
  • Page 39: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 40 IMAGE menu Item Description Using the ◄/► buttons adjusts the vertical position. Down • Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION V POSITION is selected will reset the V POSITION to the default setting.
  • Page 41 IMAGE menu Item Description Using the ◄/► buttons adjusts the horizontal phase to eliminate flicker. Right Left H PHASE • This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.
  • Page 42: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 43 INPUT menu Item Description The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ▲/▼ buttons to select the input port. (2) Using the ◄/► buttons switches the mode for video format. AUTO NTSC SECAM VIDEO FORMAT N-PAL M-PAL...
  • Page 44 INPUT menu Item Description The computer input signal type for COMPUTER IN1 and IN2 ports can be set. (1) Use the ▲/▼ buttons to select the COMPUTER IN port to be set. (2) Use the ◄/► buttons to select the computer input signal type. AUTO SYNC ON G OFF COMPUTER IN...
  • Page 45 INPUT menu Item Description The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.
  • Page 46: Setup Menu

    SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 47: Nteractive

    SETUP menu Item Description Using the ◄/► buttons corrects the horizontal keystone distortion. Shrink the right of the image Shrink the left of the image • The adjustable range of this function will vary among inputs. For KEYSTONE some input, this function may not work well. •...
  • Page 48 SETUP menu Item Description Using the ▲/▼ buttons changes the eco mode setting. NORMAL • When the ECO is selected, acoustic noise and screen brightness ECO MODE are reduced. • When AUTO ECO MODE is set to ON, the projector will always be set to Eco mode at start-up regardless this setting.
  • Page 49: Audio Menu

    AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.
  • Page 50 AUDIO menu Item Description Using the ▲/▼ buttons switches the mode for the HDMI audio. Check each of the two modes provided and select the suitable one HDMI AUDIO for your HDMI audio device. Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port.
  • Page 51: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 52 SCREEN menu Item Description This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.
  • Page 53 SCREEN menu Item Description Using the ▲/▼ buttons turns on/off the MyScreen lock function. When the ON is selected, the item MyScreen is locked. Use this MyScreen Lock function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the 74).
  • Page 54: Ource Name

    SCREEN menu Item Description Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed. (2) Use the ▲/▼...
  • Page 55 SCREEN menu Item Description (6) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄...
  • Page 56 SCREEN menu Item Description The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C.
  • Page 57: Option Menu

    OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME.
  • Page 58: Auto Power Off , U

    OPTION menu Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO POWER When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector...
  • Page 59 OPTION menu Item Description The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ►...
  • Page 60 OPTION menu Item Description This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control ( (1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.
  • Page 61 OPTION menu Item Description • ACTIVE IRIS: Changes the active iris mode. 32). • PICTURE MODE: Changes the PICTURE MODE ( 57). • FILTER RESET: Displays the filter time reset confirmation dialogue ( • TEMPLATE: Makes the template pattern selected to the 53) appear or disappear.
  • Page 62 OPTION menu Item Description Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. FAN SPEED Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
  • Page 63 OPTION menu Item Description KEY LOCK (1) Use the ▲/▼ buttons to select CONTROL PANEL or REMOTE CONTROL. (2) Use the ◄/► buttons to turn the key lock function on/off. When ON is selected, all buttons on the projector or remote control except the STANDBY/ON button are locked.
  • Page 64 OPTION menu Item Description REMOTE FREQ. (1) Use the ▲/▼ button to change the projector's remote sensor 4, 17). frequency setting ( 1:NORMAL 2:HIGH (2) Use the ◄/► button to change the projector's remote sensor on or off. The factory default setting is for both 1:NORMAL and 2:HIGH to be on.
  • Page 65 OPTION menu Item Description COMMUNICATION TYPE Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE NETWORK BRIDGE: Select this type, if it is required to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands ( Network Bridge Function in the...
  • Page 66 OPTION menu Item Description RESPONSE LIMIT TIME Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port. OFF: Select this mode if it is not required to check the responses from the device that the projector sends data to.
  • Page 67 OPTION menu Item Description INFORMATION Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input. • The “FRAME LOCK” message on the dialog means the frame lock function is working. • This item can't be selected for no signal and sync out. SERVICE •...
  • Page 68: Network Menu

    NETWORK menu NETWORK menu Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions.
  • Page 69 NETWORK menu Item Description Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF. IP ADDRESS • The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.
  • Page 70 NETWORK menu Item Description (1) Use the ▲/▼ buttons on the NETWORK menu to select the PROJECTOR NAME and press the ► button. The PROJECTOR NAME dialog will be displayed. (2) The current PROJECTOR NAME will be displayed on the first 3 lines.
  • Page 71 NETWORK menu Item Description Selecting this item displays the MY IMAGE menu. To store images in the projector, the application software PJImg/Projector Image Tool that can be downloaded from our website is required. Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE ( My Image Function in the User’s manual - Network Guide) and the ►...
  • Page 72 NETWORK menu Item Description Selecting this item displays the PRESENTATION menu. Use ▲/▼ buttons to select one of the following items, then press ► or ENTER button to use the function. If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked.
  • Page 73 NETWORK menu Item Description • To change from Multi PC mode to Single PC mode, select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. Press the ► button to choose OK, and then press ENTER or INPUT again.
  • Page 74: Service

    NETWORK menu Item Description Selecting this item displays the NETWORK_INFORMATION dialog for confirming the network settings. INFORMATION • For the details of PASSCODE, see the section Selecting the network connection method in the User’s manual – Network Guide. • Only the first 16 characters of the projector name are displayed. •...
  • Page 75: Security Menu

    SECURITY menu SECURITY menu This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions. Enter to the SECURITY menu 1.
  • Page 76 SECURITY menu Item Description The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten. 1 Turning on the MyScreen PASSWORD 1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ►...
  • Page 77 SECURITY menu Item Description PIN LOCK is a function which prevents the projector from being used unless a registered Code is input. 1 Turning on the PIN LOCK 1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.
  • Page 78: Transition Detector

    SECURITY menu Item Description If this function is set to ON when the vertical angle of the projector or MIRROR setting at which the projector is turned on is different than the previously recorded, the TRANSITION DETECTOR ON alarm will be displayed and the projector will not display the input signal.
  • Page 79 SECURITY menu Item Description The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT; • The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting. •...
  • Page 80 SECURITY menu Item Description (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.
  • Page 81: Presentation Tools

    Presentation tools Presentation tools The projector has the following three convenient tools that enable on-screen presentations easily and quickly: below) - Interactive Function ( - PC-LESS Presentation ( - USB Display ( Interactive Function USB cable Computer cable Interactive Function enables interactive operations, such as operation of the connected computer and writing on the screen using the “StarBoard Software”, by making use of the built-in sensor of the projector and the supplied pen without the need of a special board.
  • Page 82 Presentation tools Interactive Function (continued) NOTE • Do not place the projector near equipment that may emit electromagnetic waves or radio waves, such as a radio transmitter, TV, copier, or air-conditioner. • Avoid excessively dusty places, or places that are subject to extremely high or low temperature or humidity.
  • Page 83 Presentation tools Interactive Function (continued) Connection during use Follow the procedure below to connect the computer to the projector. Computer DISPLAY COMPUTER IN2 COMPUTER IN1 HDMI USB TYPE B TYPE A DC5V 0.5A S-VIDEO AUDIO OUT AUDIO IN1 AUDIO IN3 MONITOR OUT CONTROL VIDEO...
  • Page 84 Presentation tools Interactive Function (continued) Preliminary preparation To use the Interactive Function, a special pen is needed ( 18). Insert battery into the pen before using ( Using the pen To write or draw using the pen, press the tip of the pen against the screen surface and move the pen accordingly.
  • Page 85 Presentation tools Interactive Function (continued) Basic pen operation In the default setting, the button at the tip of the pen is assigned with the function ® of the left mouse button. When Windows is running, you can perform the following mouse operations using the button at the tip of the pen. •...
  • Page 86 Presentation tools Interactive Function (continued) Using “StarBoard Software” If you are using the “StarBoard Software” for the first time, install it by following the instructions in the manual located inside the bundled DVD-ROM. For details on how to use the “StarBoard Software” and its functions, refer to the bundled “StarBoard Software”...
  • Page 87: Pc-Less Presentation

    Presentation tools PC-LESS Presentation The PC-LESS Presentation reads image data from storage media inserted into the USB TYPE A port and displays the image on the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source. This feature allows you to make your presentations without using your computer.
  • Page 88 Presentation tools PC-LESS Presentation (continued) Thumbnail mode The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode.
  • Page 89 Presentation tools PC-LESS Presentation (continued) Operating by buttons or keys You can control the images in the Thumbnail screen with the remote control or keypad or a web browser software. The following functions can be supported while the Thumbnail is displayed. Button operation Functions The keypad on...
  • Page 90 Presentation tools PC-LESS Presentation (continued) Operating by the menu on the Thumbnail screen You can also control the images by using the menu on the Thumbnail screen. Item Functions Moves to an upper folder. SORT Allows you to sort files and folders as following. Press the ►...
  • Page 91 Presentation tools PC-LESS Presentation (continued) NOTE • These operations are not accessible while the projector OSD is displayed. • The Thumbnail mode shows 20 pictures in 1 page as maximum. • It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.
  • Page 92 Presentation tools PC-LESS Presentation (continued) Full Screen Mode The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control or the INPUT button on the keypad, or click [ENTER] on the Web Remote Control.
  • Page 93: Slideshow Mode, Playlist

    Presentation tools PC-LESS Presentation (continued) Slideshow mode The Slideshow mode displays images in full screen and switches the images at 86). intervals set in INTERVAL on the Thumbnail screen menu ( You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the ENTER button on the remote control or INPUT button on the projector.
  • Page 94 Presentation tools PC-LESS Presentation (continued) You can play the Slideshow at your desired configuration. Configure the Slideshow items in the Thumbnail. 1) RETURN : Returns to the thumbnail mode. 2) PLAY : Play the Slideshow. 3) START : Set the beginning number of the Slideshow.
  • Page 95 Presentation tools PC-LESS Presentation (continued) Playlist The Playlist is a DOS format text file, which decides the order of displayed still image files in the Thumbnail or Slideshow. The playlist file name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image files when the PC-LESS Presentation is started or the Slideshow is configured.
  • Page 96: Usb Display

    Presentation tools USB Display 10). The projector can display images transferred from a computer via an USB cable ( Hardware and software requirement for computer • OS: One of the following. ® Windows XP Home Edition /Professional Edition (32 bit version only) ®...
  • Page 97: Options Window

    Presentation tools USB Display (continued) Right-Click menu The menu shown in the right will be displayed when you right-click the application icon in the Windows notification area. Display : The Floating menu is displayed, and the icon disappears from the Windows notification area.
  • Page 98: Options Window

    Presentation tools USB Display (continued) Options window If you select the Option button on the Floating menu, the Options window is displayed. Optimize Performance The “LiveViewer Lite for USB” captures screenshots in JPEG data and sends them to the projector. The “LiveViewer Lite for USB” has two options that have different compression rate of JPEG data.
  • Page 99: Maintenance

    Maintenance Maintenance Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
  • Page 100: Lamp Warning

    Maintenance Replacing the lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time.
  • Page 101: Cleaning And Replacing The Air Filter

    Maintenance Cleaning and replacing the air filter The air filter unit of this projector consists of a filter cover, two kinds of filters, and a filter frame. The new double large filters system is expected to function longer. However, please check and clean it periodically to keep ventilation needed for normal operation of the projector.
  • Page 102 Maintenance Cleaning and replacing the air filter (continued) Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▼/▲ button, then press the ► button. A dialog will appear.
  • Page 103: Replacing The Internal Clock Battery

    Maintenance Replacing the internal clock battery This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery: HITACHI MAXELL, part number CR2032 or CR2032H. Battery cover Turn the projector off, and unplug the power cord.
  • Page 104: Caring For The Mirror And Lens

    Maintenance Caring for the mirror and lens If the projection mirror or lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the mirror and lens, being cautious of handling. Turn the projector off and unplug the power cord from the power outlet.
  • Page 105: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the cabinet and remote control Incorrect care could have adverse influence such as discoloration, peeling paint, etc.
  • Page 106 Maintenance Other care (continued) WARNING ►Before caring, make sure the power cord is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector. ►Never try to care for the inside of the projector personally.
  • Page 107: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, Troubleshooting strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet.
  • Page 108 Troubleshooting Related messages (continued) Message Description The internal temperature is rising. Please turn the power off, and allow the projector to cool down at least 20 minutes. After having confirmed the following items, please turn the power ON again. • Is there blockage of the air passage aperture? •...
  • Page 109: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table. POWER LAMP TEMP Description indicator indicator indicator Lighting Turned Turned The projector is in a standby state. Orange Please refer to the section “Power on/off”.
  • Page 110 Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make Blinking confirmation of the following items, and then turn the power on again.
  • Page 111: Resetting All Settings

    Troubleshooting Resetting all settings When it is hard to correct some wrong settings, the FACTORY RESET function of 65) can reset all settings (except settings such SERVICE item in OPTION menu ( as LANGUAGE, LAMP TIME, FILTER TIME, FILTER MESSAGE, SECURITY and NETWORK) to the factory default.
  • Page 112 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 9 ~ 13 Correctly connect the audio cables. The MUTE function is working. Restore the sound pressing MUTE or VOLUME +/- button on the remote control.
  • Page 113 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press FREEZE button to restore the screen to normal. Color settings are not correctly adjusted.
  • Page 114 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The computer The computer cannot start up in the current hardware connected to the configuration. USB TYPE B port Disconnect the USB cable from the computer, then of the projector reconnect it after starting up the computer.
  • Page 115 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Is the use of USB cables disabled? Enable the use of USB cables. The “StarBoard Software” may not be recognized if your laptop has a built-in modem. –...
  • Page 116 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page This may be due to poor contact of the battery. Remove the battery and load it again. Has the battery run out? Replace it with a new one.
  • Page 117 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Is the power supply for the projector used at the same time for other electrical products that require a measurable amount of power? Use a separate power supply for other electrical products with a high power consumption.
  • Page 118 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page Is the projector correctly installed? Check the installed position of the projector. Is the computer image projected within the area of the screen? Install and use at a position where the screen size is between 60"-100"...
  • Page 119: Specifications

    • Be sure to read “End User License Agreement for the Projector Software” which is separated document. (in the CD) DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...
